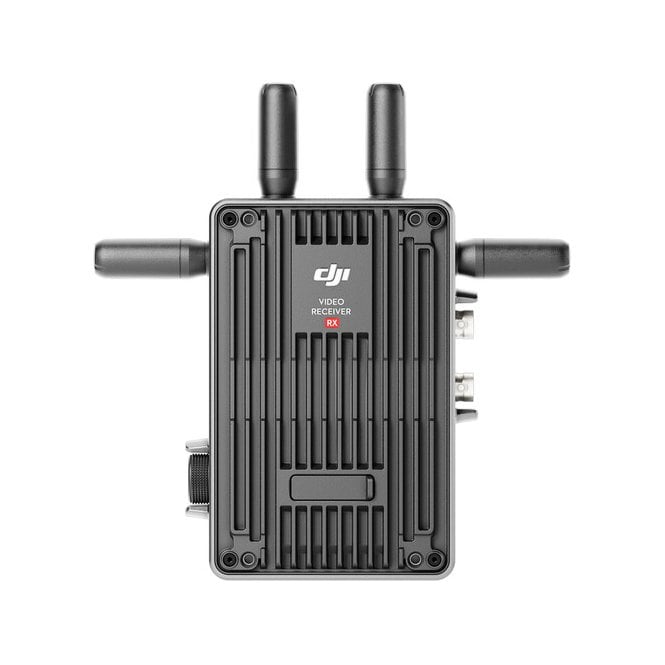

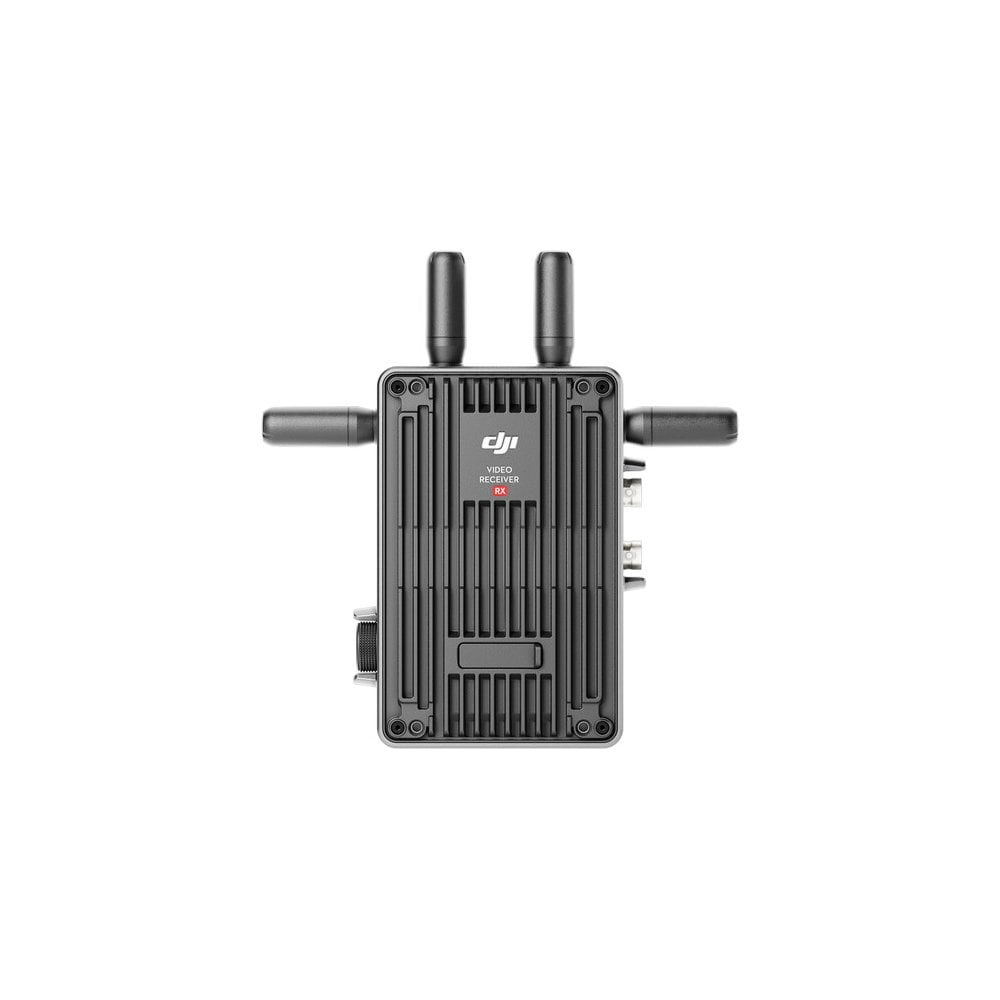

DJI wireless Video Receiver

DJI wireless Video Receiver(CP.RN.00000319.01)

The DJITM Video Receiver features DJI O3 Pro video transmission and receives video signals from the transmitter. In an environment without interference or obstruction, the video receiver provides video transmission with a maximum transmission range of 6 km*, a bitrate of up to 40 Mbps, and a minimum end-to-end latency of 70 ms. It supports multiple frequency bands in both Control and Broadcast modes and simultaneously outputs multiple video signals to display devices for remote monitoring. When used with the DJI Video Transmitter or DJI Ronin 4D, the video receiver can meet the filming requirements of mediums such as movies, TV series, advertisements, and documentaries.

Weight Approx. 350 g (receiver only, excl. antennas)

Dimensions 127×87×26 mm (excl. antennas)

Operating Frequency[1] 2.4000-2.4835 GHz, 5.150-5.250 GHz,

5.250-5.350 GHz, 5.470-5.725 GHz,

5.725-5.850 GHz

Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (SRRC/CE/MIC)

5.8 GHz: <33 dBm (FCC), <14 dBm (CE),

<23 dBm (SRRC)

Power Consumption 9 W

Power Supply Voltage 6-18 V

Output Voltage 6-18 V

Battery Life[2] 3 hours 50 minutes

Output Video Format:

When used with the DJI Video Transmitter 1080p: 23.98/24/25/29.97/30/50/59.94/60fps

720p: 50/59.94/60fps

When used with Ronin 4D 1080p: 24/25/30/48/50/60fps

Output Audio Format SDI embedded, HDMI embedded

Video Transmission System O3 Pro

Max Bitrate 40 Mbps

Latency 70 ms (1080p 60fps)

Video Coding Format H.264

Max Transmission Distance 6 km (FCC), 4 km (CE/SRRC/MIC)

(Unobstructed, free of interference)

Max Bandwidth 40 MHz

Operating Temperature[3] -10° to 45° C (14° to 113° F)

[1] Due to local regulations, the 5.1/5.2/5.8 GHz frequencies are prohibited in some countries and the 5.1/5.2 GHz frequencies are only allowed for use indoors in some countries. 5.600-5.650 GHz is not used.

[2] Tested in a room temperature of 25° C (77° F) when powered by a fully charged WB37 Intelligent Battery and used with the DJI Video Transmitter.

[3] When using the WB37 Intelligent Battery, it is recommended to operate the device in a temperature above 0° C. Take measures to keep the battery warm when using in a temperature below 0° C.

In the Box

DJI wireless Video Receiver
