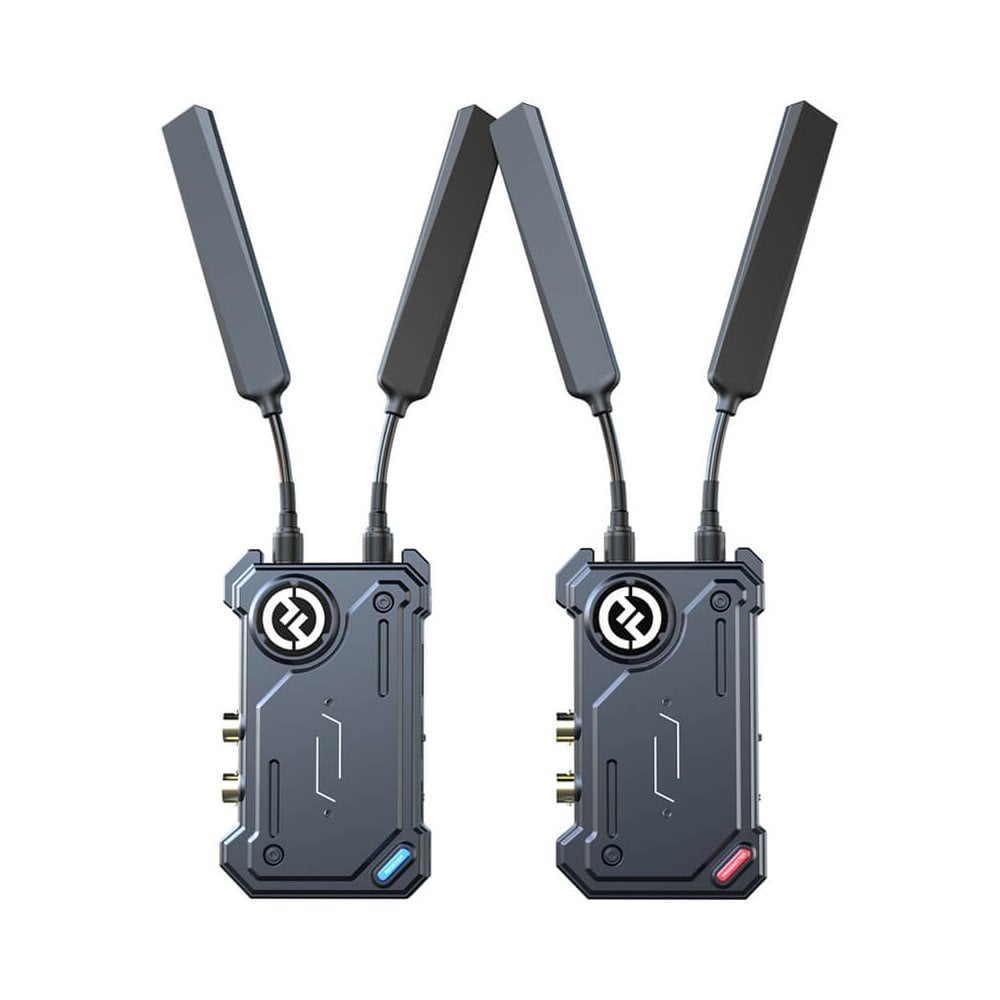

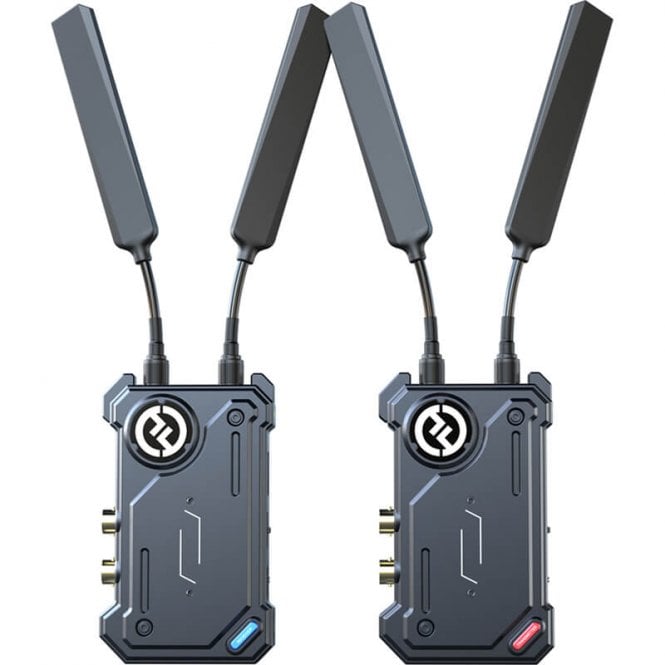

Hollyland HL-COSMO-C1 COSMO C1 Wireless SDI-HDMI Transmission System

code: HL-COSMO-C1
  • 533,12 â‚¬
  • RRP: 881,14 â‚¬
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features:

  • Wireless SDI/HDMI Transmission System
  • As low as 40ms Latency
  • 1,000ft Wireless Transmission Range (LOS)
  • Supports Smart Channel Switching
  • Transmitter Supports SDI Input, HDMI Input, and SDI Loopout.
  • Receiver Supports 2*SDI Outputs and HDMI Output
  • Supports DC Power Supply, Battery, and USB Type-C Power Supply
  • Supports UVC Pull-stream(Based on P format, not support i format

Hollyland HL-COSMO-C1 (HL/COSMO-C1, HL/COSMO/C1, HLCOSMOC1, HL COSMO C1) COSMO C1 Wireless SDI-HDMI Transmission System

COSMO C1 uses the latest coding, decoding technology, and 5G wireless transmission technology. It can achieve ultra-low latency wireless video transmission. It has a transmission range of over 1,000ft with a clean line of sight (LOS) when the transmitter is connected to 1 receiver. And，both transmitter and receiver are equipped with L-series battery plates and can also be powered by a USB Type-C port and DC power input.

  • Antenna Ports: Transmitter/Receiver: 2 x RP-SMA Male
  • Video I/O: Transmitter: 1 x BNC (3G-SDI) Input, Transmitter: 1 x HDMI Input, Transmitter: 1 x BNC (3G-SDI) Loop Output, Receiver: 2 x BNC (3G-SDI) Output, Receiver: 1 x HDMI Output
  • HDCP Support: Not Specified by Manufacturer
  • Embedded Audio: HDMI/SDI: 2-Channel
  • Audio I/O: None
  • Power: Transmitter/Receiver: 1 x USB-C (2 A / 5 VDC) Input
  • Other I/O: Transmitter/Receiver: 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input
  • Encryption: 128-Bit AES

Wireless

  • Wireless Range: 1000' / 304.8 m
  • Channel Bandwidth: 20 MHz
  • Frequency Range: US: 5.1 to 5.8 GHz
  • Latency: 40 ms
  • RF Power: 22 dBm
  • RF Sensitivity: -80 dBm
  • Wi-Fi: Yes

Format Support

  • Video Format: HDMI: 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 576p: 50, 480p: 60, SDI: 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080PsF: 25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50
  • Audio Format: Not Specified by Manufacturer
  • Timecode Support: Yes

Power

  • DC Input Power: 6 to 16 VDC
  • Battery Type: Transmitter/Receiver: 1 x L-Series
  • Power Consumption: Transmitter/Receiver: 9 W
  • Mounting: 1 x Cold Shoe

General

  • Dimensions: Transmitter/Receiver: 4.5 x 2.8 x 1.3" / 115 x 70 x 32 mm, Excluding Battery Plate
  • Weight: Transmitter: 7.5 oz / 214 g, Excluding Antenna, Receiver: 7.4 oz / 210 g, Excluding Antenna

In The Box

  • 1x Transmitter
  • 1x Receiver
  • 4x Antenna
  • 2x Mushroom Antenna
  • 1x Cold Shoe
  • 1x Magic Arm
  • 1x Type-C Converter
  • 1x DC Adapter
  • 1x User Guide
  • 1x Warranty Card
  • 1x Expansion Accessory
