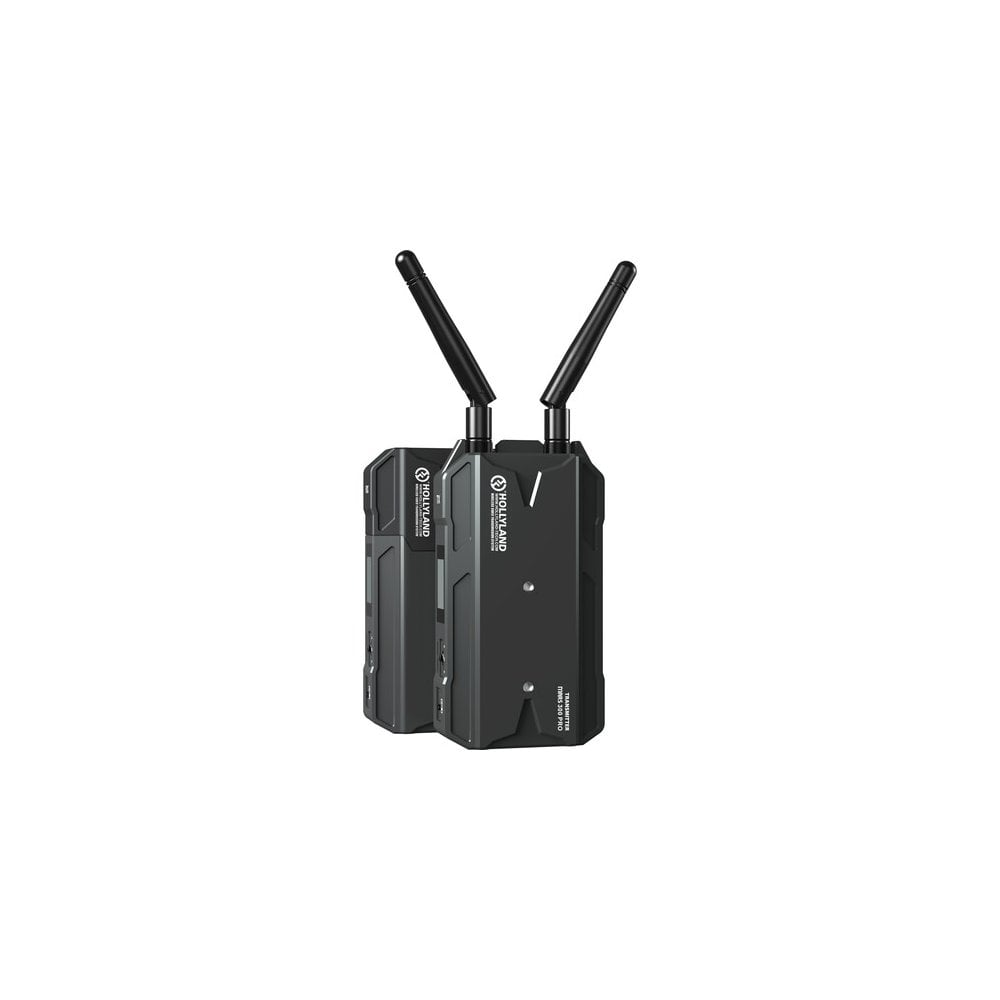

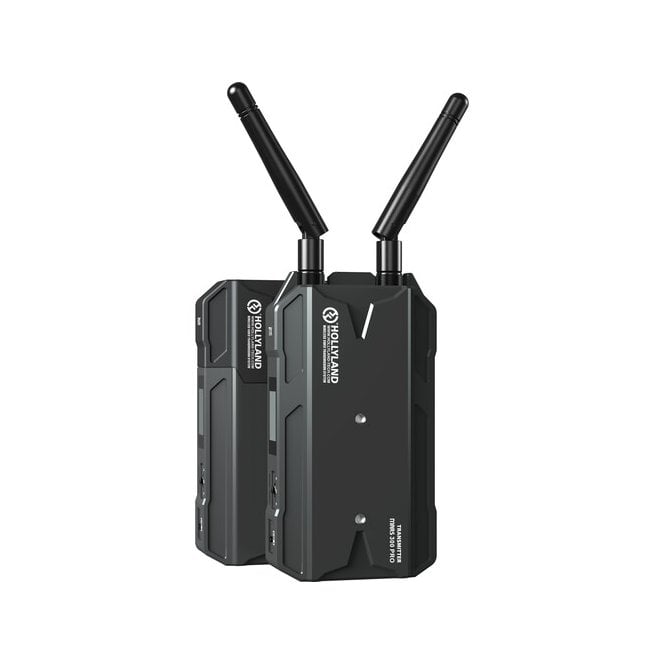

Hollyland MARS-300-PRO-ENHANCED HDMI Wireless Video Transmitter/Receiver Set

Hollyland MARS-300-PRO-ENHANCED (MARS/300/PRO/ENHANCED, MARS_300_PRO_ENHANCED, MARS 300 PRO ENHANCED, MARS300 PRO (ENHANCED), Mars300 PRO-Enhanced, mars-300-pro-enhanced) HDMI Wireless Video Transmitter/Receiver Set

Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight enhanced Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set from Hollyland.

This enhanced model features two external antennas on the transmitter, including one spare. The transmitter provides a single HDMI input plus an HDMI loop-out for viewing on an on-board monitor and the receiver provides two HDMI outputs.

The transmitter features line-of-sight transmission up to 400' to the receiver and up to 300' to a Wi-Fi app.

Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection. The transmitter can transmit to up to one receiver and two apps, or to a total of three apps, simultaneously. The transmitter and receiver are compact in size, feature a bright OLED display for configuration, and they each feature a 1/4"-20 mounting thread.

Each can be powered using a USB Type-C source, or they can be powered using a separately available L-series type battery using their battery plates. The Mars 300 set also includes an accessory expansion plate, a shoe mount, and a USB Type-C cable.

Wireless
Wireless Range:

• 300' / 91.44 m (Line-of-Sight)
• 400' / 121.92 m (Line-of-Sight)

• Channel Bandwidth: 20 MHz
• Frequency Range: 5 GHz
• Latency: < 0.1 sec
• RF Power: ≤ 21 dBm
• RF Sensitivity: -80 dBm
• Wireless Video Compression: Uncompressed

Interfaces

• Transmitter Antenna Ports: 2 x RP-SMA Female

Transmitter Video Connectors:

• 1 x HDMI Input
• 1 x HDMI Loop Output

• Receiver Video Connectors: 2 x HDMI Output
• Transmitter Other I/O: 1 x USB Type-C Input
• Receiver Other I/O: 1 x USB Type-C Input
• Embedded Audio: HDMI: 2-Channel

Format Support

Video Format: HDMI:

• 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 1080i at 50, 59.94, 60 fps
• 720p at 50, 59.94, 60 fps
• 576p at 50 fps
• 480p at 60 fps
• Timecode: No

Display

• Transmitter Panel Type: OLED
• Receiver Panel Type: OLED

Power

• Transmitter Battery Support: 1 x Sony L-Series / NP-F Type
• Receiver Battery Support: 1 x Sony L-Series / NP-F Type
• Transmitter Power Connector: 1 x USB Type-C (5 VDC at 2 A) Input
• Receiver Power Connector: 1 x USB Type-C (5 VDC at 2 A) Input
• Transmitter Power Consumption: Device: 5 to 12 VDC (11 W)
• Receiver Power Consumption: Device: 5 to 12 VDC (6 W)

General

• Transmitter Mounting: 1 x 1/4"-20 Female
• Receiver Mounting: 1 x 1/4"-20 Female
• Transmitter Dimensions: 4.17 x 2.4 x 0.87" / 10.6 x 6.1 x 2.2 cm (Without Battery Plate)
• Receiver Dimensions: 4.33 x 2.4 x 0.83" / 11 x 6.1 x 2.1 cm
• Transmitter Weight: 0.4 lb / 172.5 g
• Receiver Weight: 0.4 lb / 189 g

In the Box

• Hollyland Mars300 PRO (Enhanced) HDMI Video Set
• Transmitter
• Receiver
• 3 x Transmitter Antenna
• Expansion Mount
• Shoe Mount
• USB Type-C Cable
