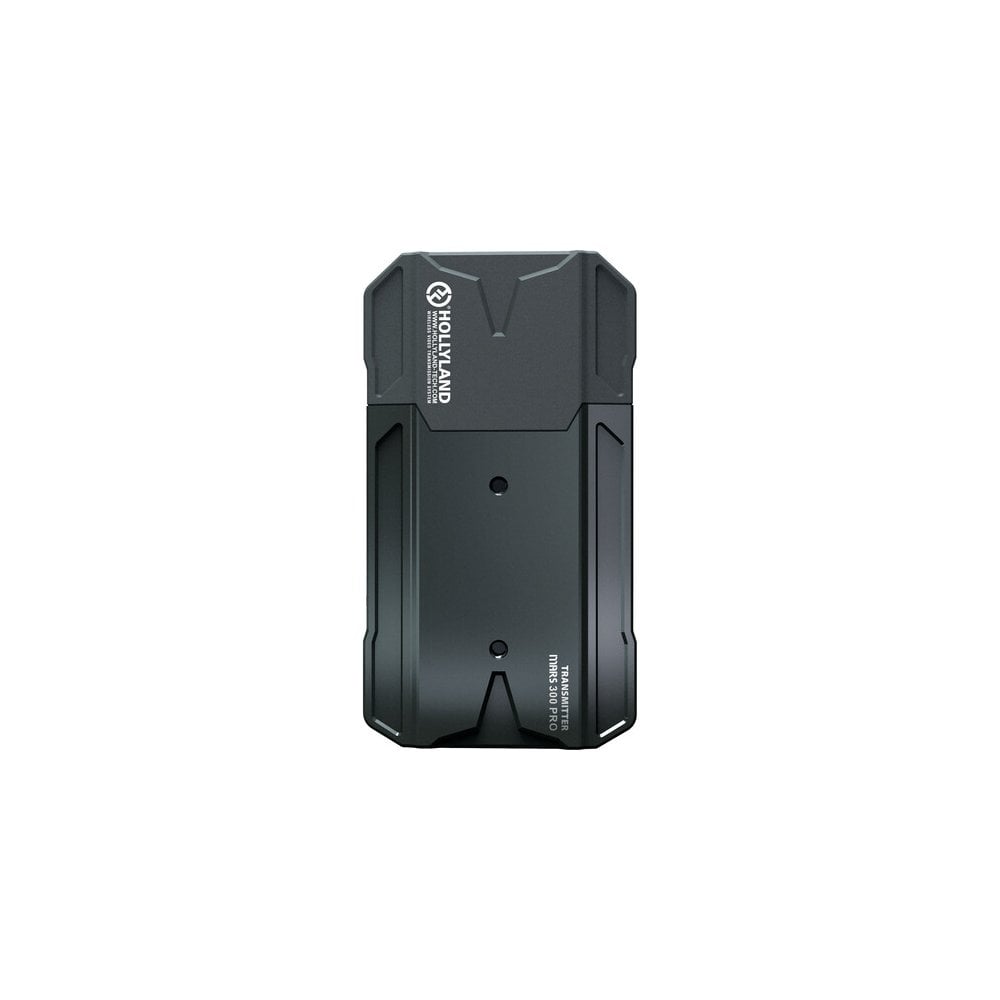

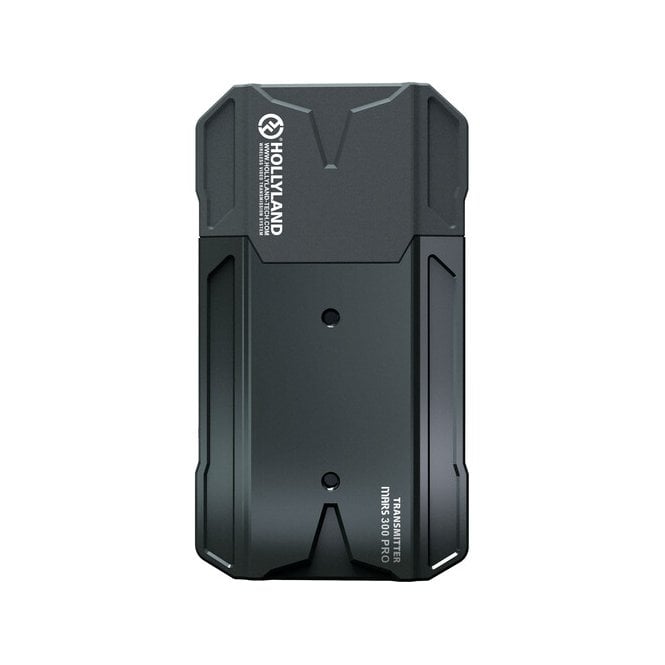

Hollyland Mars-300-PRO-TX HDMI Wireless Video Transmitter

Hollyland Mars-300-PRO-TX (Mars/300/PRO/TX, Mars_300_PRO_TX, Mars 300 PRO TX, Mars300 PRO TX, Mars300PRO-TX, Mmrs-300-pro-tx) HDMI Wireless Video Transmitter

Hollyland MARS 300 PRO is an HDMI-only wireless video transmission system with a maximum transmission range of 90m.

Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight, compact Mars 300 Dual HDMI Transmitter from Hollyland. The transmitter provides a single HDMI input plus an HDMI loop-out for viewing on an on-board monitor. Features include line-of-sight transmission up to 100 meters, a built-in L-series battery plate on each unit, and durable metal housings.

Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection. The transmitter can transmit to up to a total of three apps, simultaneously.

Wireless

• Wireless Range: 328' / 100 m (Line-of-Sight)
• Channel Bandwidth: 20 MHz
• Frequency Range: US: 5 GHz
• Latency: < 0.1 sec
• RF Power: ≤ 21 dBm
• Wi-Fi: Yes
• Wireless Video Compression: Uncompressed

Interfaces

Video Connectors:

• 1 x HDMI Input
• 1 x HDMI Loop Output

• Other I/O: 1 x USB Type-C Input
• HDCP Support: None
• Embedded Audio: HDMI: 2-Channel

Format Support

Video Format: HDMI:

• 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 1080i at 50, 59.94, 60 fps
• 720p at 50, 59.94, 60 fps
• 576p at 50 fps
• 480p at 60 fps

• Timecode: No
• LUT Support: None

Display

• Panel Type: OLED

Power

• Built-In Battery: None
• Battery Support: 1 x Sony L-Series / NP-F Type
• Power Connector: 1 x USB Type-C (5 VDC at 2 A) Input
• Power Consumption: Device: 5 to 12 VDC (11 W)

General

• Mounting: 1 x 1/4"-20 Female
• Materials: Metal, Plastic
• Dimensions: 4.3 x 2.4 x 0.8" / 11 x 6.1 x 2.1 cm
• Weight: 4.8 oz / 136 g

In the Box

• Hollyland Mars 300 PRO HDMI Wireless Video Transmitter
• Expansion Mount
• Shoe Mount
• USB Type-C Cable
