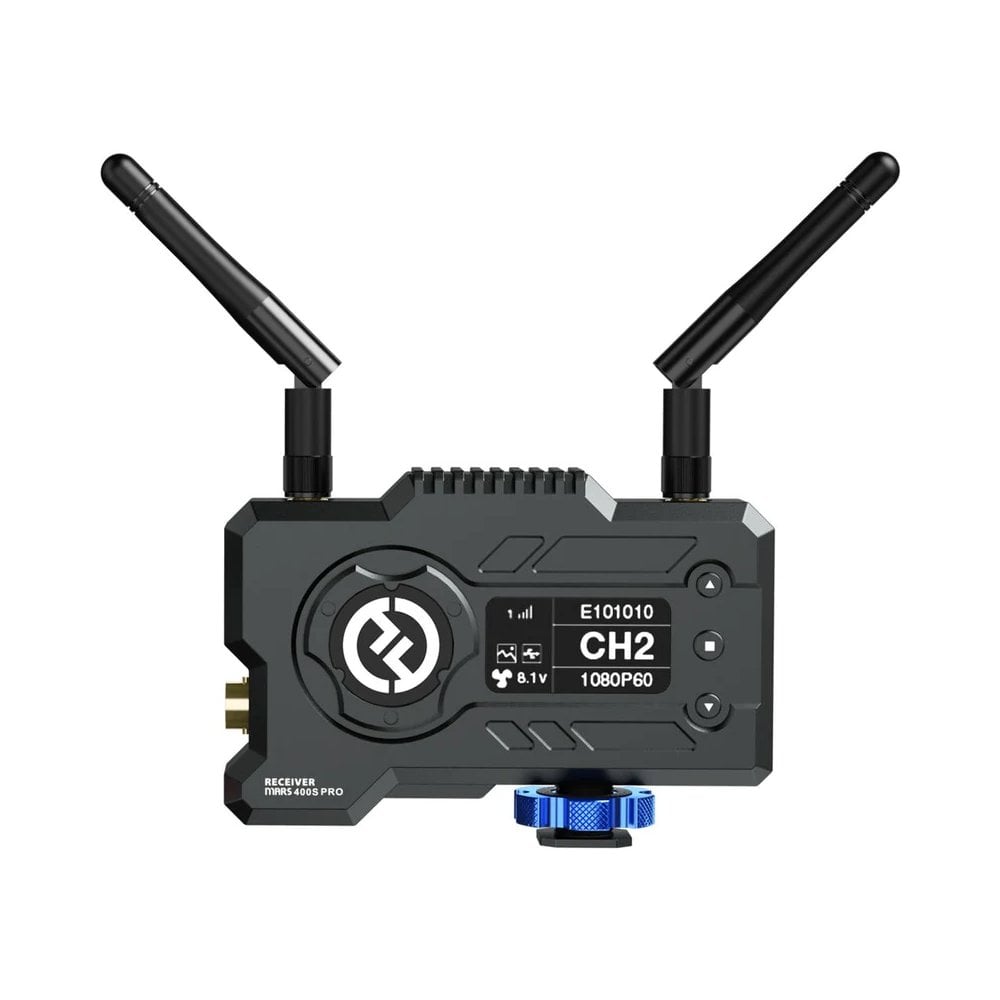

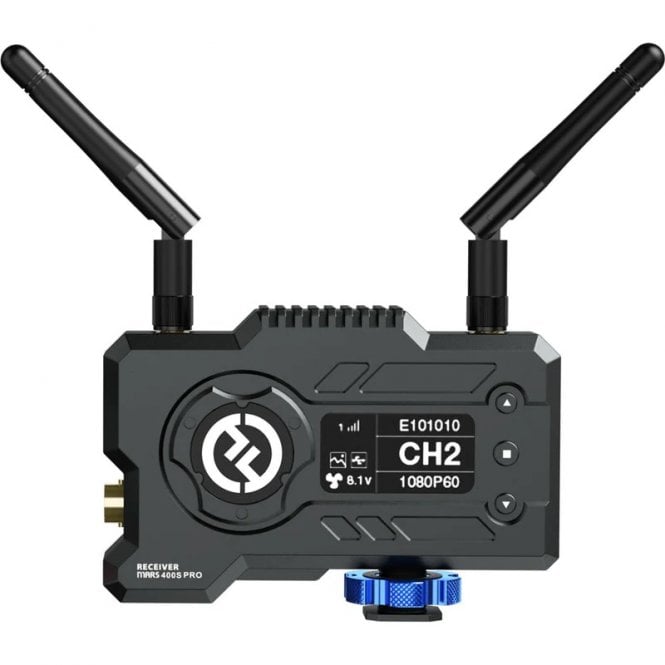

Hollyland Mars 400S Sdi/Hdmi Wireless Video Receiver

Hollyland Mars 400S Sdi/Hdmi Wireless Video Receiver(HL-MARS-400S-PRO-RX)

Receive up to 1080p60 wireless video from your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 400S PRO SDI/HDMI Wireless Video Receiver from Hollyland. The receiver provides HDMI and SDI outputs to your monitoring equipment and features extremely low 0.1s latency with line-of-sight transmission up to 400' to the receiver. For a strong line-of-sight signal, the receiver includes two external antennas and one is included as a spare. The Mars 400S PRO transmitter can simultaneously transmit video to up to two receivers.

Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection as well as live stream directly from the receiver via your computer using an optional USB Type-C adapter. The app also allows you to install optional channel scanning firmware enabling you to easily find the strongest transmission signals. The redesigned body makes it a low-profile choice for your setup, and it features multiple fan modes to keep it cool or quiet when you are shooting.

The 400S PRO receiver is compact in size, features a bright OLED display for configuration, and has an integrated shoe adapter with a 1/4"-20 mounting thread for different mounting options. It can be powered using a USB Type-C source, the included locking DC power adapter, or by using a separately available L-series type battery using the integrated battery plate.

Wireless Range 400' / 121.92 m (Line-of-Sight)

Channel Bandwidth 20 MHz

Frequency Range US: 5 GHz

Latency 0.1 sec

RF Sensitivity -80 dBm

Wi-Fi Yes

Wireless Video Compression Uncompressed

Interfaces

Antenna Ports 2 x RP-SMA Male

Video Connectors 1 x BNC (3G-SDI) Output

1 x HDMI Output

Other I/O 1 x USB Type-C Input

Embedded Audio HDMI/SDI

Format Support

Video Format SDI/BNC:

1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i at 50, 59.94, 60 fps

1080PsF at 23.98, 24, 25 fps

720p at 50, 59.94, 60 fps

HDMI:

1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1080i at 50, 59.94, 60 fps

720p at 50, 59.94, 60 fps

576p at 50 fps

480p at 60 fps

Display

Panel Type OLED

Power

Built-In Battery None

Battery Support 1 x Sony L-Series / NP-F Type

Power Connector 1 x Barrel (6 to 16 VDC) Input

Power Consumption Device: (7 W)

General

Mounting 1 x 1/4"-20 Female

Materials Metal

Dimensions 4.4 x 2.8 x 1.3" / 11.2 x 7.2 x 3.4 cm

Weight 0.5 lb / 206 g

Packaging Info

Package Weight 1.25 lb

Box Dimensions (LxWxH) 19.8 x 13.9 x 8.3"

In the Box

Hollyland Mars 400S PRO SDI/HDMI Wireless Video Receiver

3 x Antenna

DC Power Adapter
