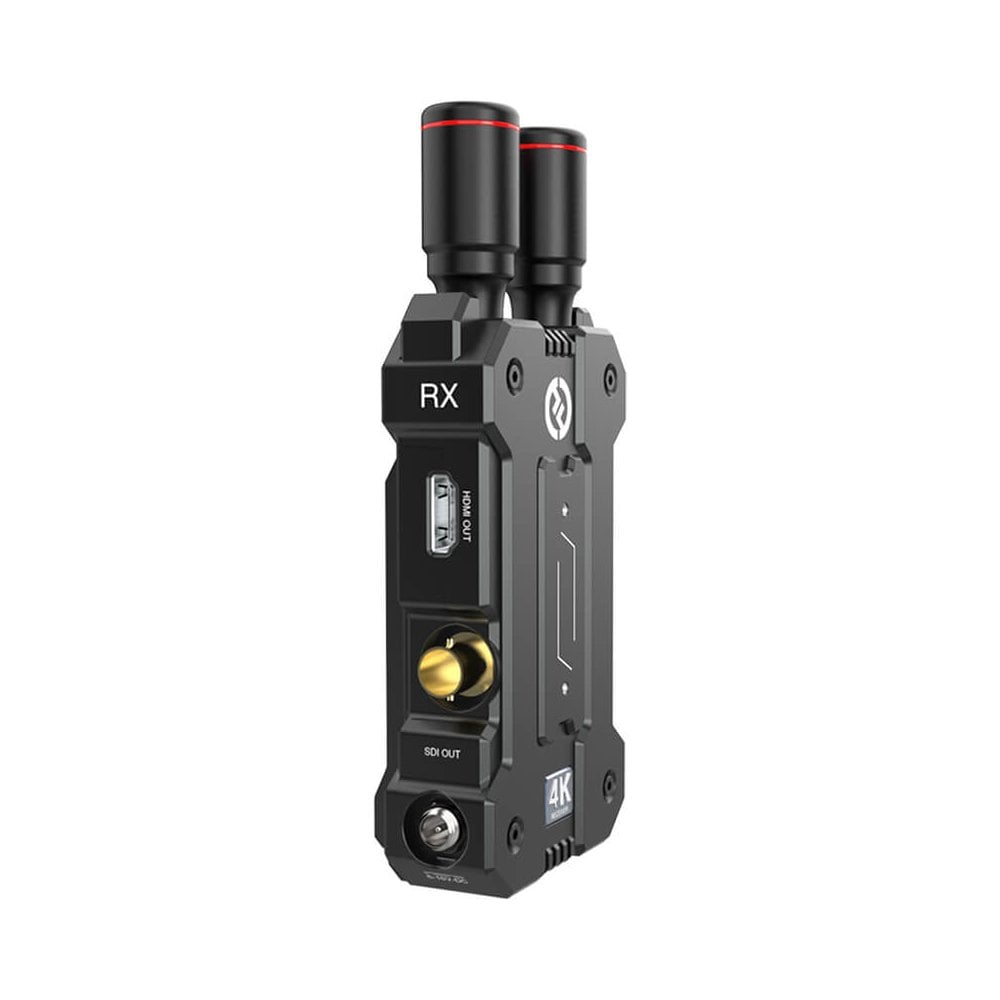

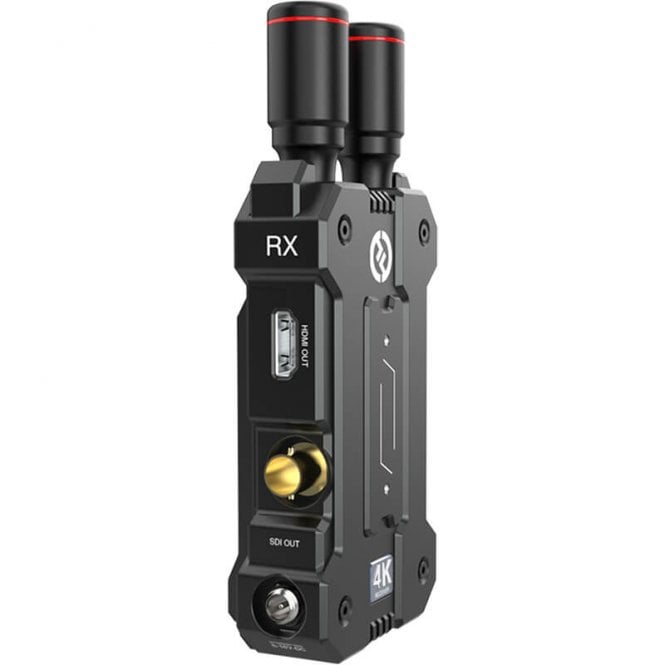

Hollyland Mars 4K Wireless Video Receiver

Hollyland Mars 4K Wireless Video Receiver(HL-9802G-RX)

The 9802G-RX Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.

4K UHD VIDEO TRANSMISSION

The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates—24p, 30p, and 60p.

450FT (150M) LOS RANGE AND 0.06S ULTRA-LOW LATENCY

The Mars 4K achieves an incredible LOS range of 450ft (150m) and ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a 12 Mbps data transfer rate.

*The LOS range of 450ft (150m) is based on interference-free laboratory measurements.

HDMI & SDI DUAL INTERFACES

The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.

FLEXIBLE MONITORING OPTIONS

The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed to allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.

OPERATIONAL EFFICIENT DESIGN FORM FACTOR

The Mars 4K is featured superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.

SMART CHANNEL SCAN AND SELECTION

Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.

COLOUR LCD WITH AN EXCLUSIVE ROCKER-STYLE BUTTON

The Mars 4K features a colour LCD with a user-friendly UI design that enables quick configurations and status checks. Its uniquely designed gamepad-styled button dramatically improves the operational setup experience.

MULTIPLE POWER SUPPLY OPTIONS

The Mars 4K supports a wide range of DC power options—6V to 16V, NP-F batteries, and USB Type-C chargers.

Interface Antenna (RP-SMA male)

HDMI 1.4 b input (Type-A female)

3G-SDI input

DC input (2.0mm core sccket)

USB Type-C (USB 2.0 OTG) Antenna (RP-SMA male)

HDMI 1.4 b output (Type-A female)

Power supply DC input: 6V–16V

USB Type-C: 5V/2.5A

(not supporting the QC and PD

protocols)

NP-F battery: 6.8V–8.4V DC input: 6V–16V

USB Type-C: 5V/2.5A

(not supporting the QC and PD

protocols)

NP-F battery: 6.8V–8.4V

3G-SDI output

DC input (2.0mm core sccket)

USB Type-C (USB 2.0 OTG)

Power consumption <8.5W (typical) <5W (typical)

Weight 223g (7.9oz) (excluding the antennas) 223g (7.9oz) (excluding the antennas)

Dimension (LxWxH): 115x65x32mm (4.5"x2.5"x1.3") (LxWxH): 115x65x32mm (4.5"x2.5"x1.3")

In the Box

Mars 4K Wireless Video Receiver
