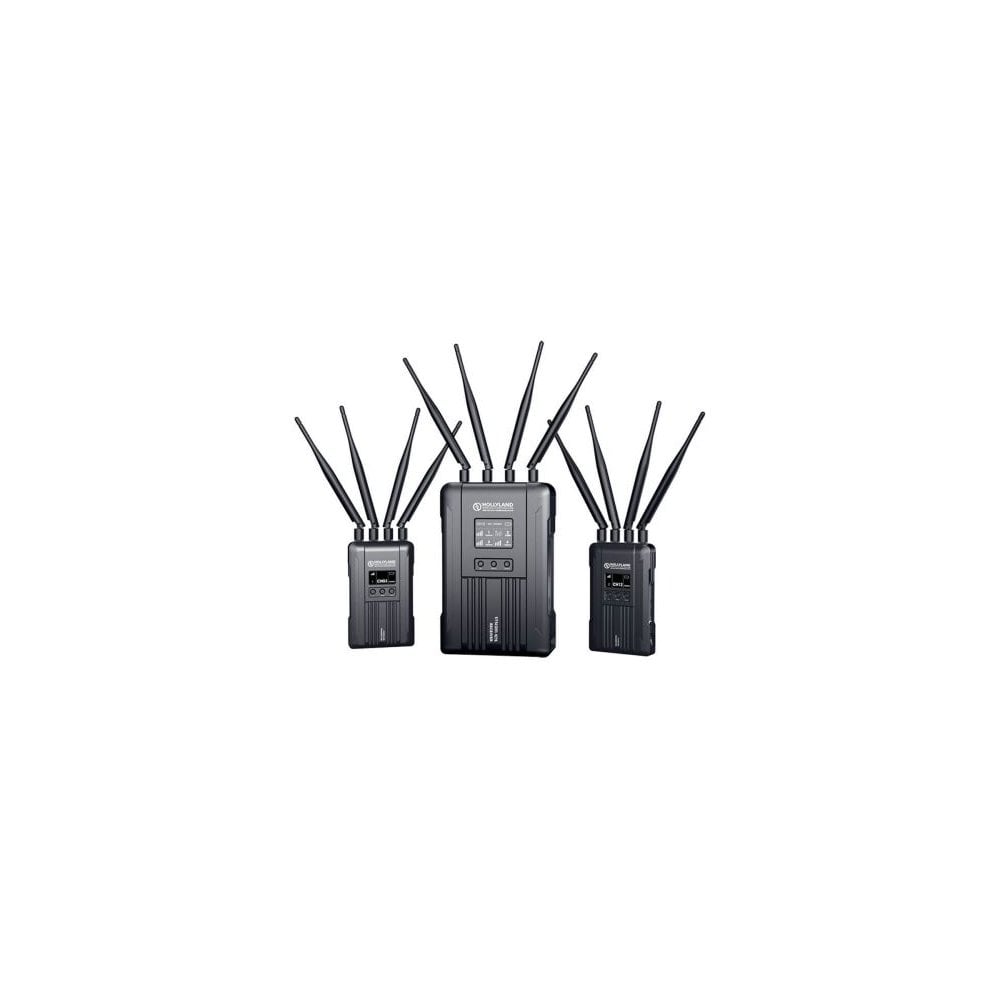

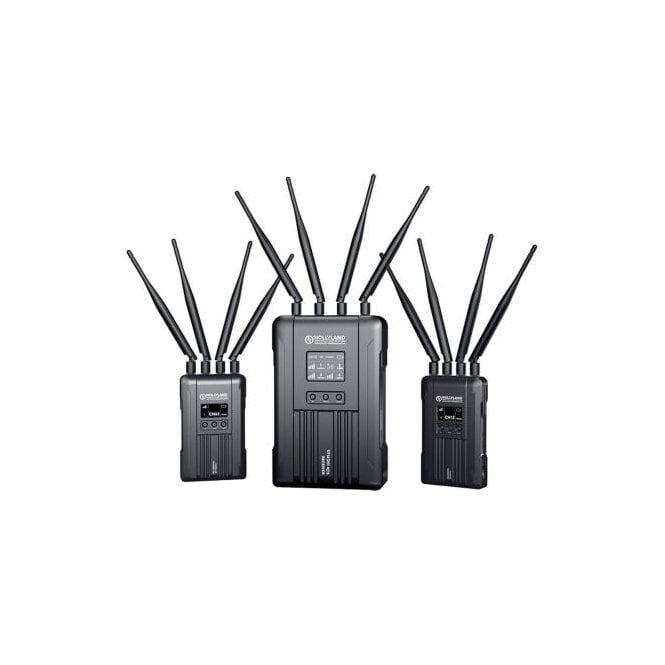

Hollyland Syscom 421 -2 Transmitter with 1 Receiver

Hollyland Syscom 421 -2 Transmitter with 1 Receiver(HL-SYSCOM_421-2TX1RX)

Hollyland SYSCOM 421 is the wireless HD Video transmission system which can achieve 4 transmitters on the same RF Channel with strong anti- interference capability. The lowest latency is 0.07s. It has a transmission range about 1800ft with a clean line of sight (LOS) when the receiver is connected to 4 transmitters at most. SYSCOM 421 supports up to 1080P 60Hz image resolution. The transmitters are equipped with L-series battery plate and the receiver is equipped with V-mount large capacity battery. Both transmitters and receiver also can power by DC adapter.

Wireless Wireless Range 1800' / 600 m (Line-of-Sight)

Channel Bandwidth 40 MHz

Frequency Range 5 GHz

Latency 0.07 sec (The lowest latency)

RF Power ≤ 22 dBm

RF Sensitivity -90 dBm

Wi-Fi Yes

Interfaces

Transmitter Antenna Ports 4 x RP-SMA Male

Receiver Antenna Ports 4 x RP-SMA Male

Transmitter Video Connectors 1 x BNC (3G-SDI / HD-SDI) Input, 1 x HDMI Input

Receiver Video Connectors 4 x BNC (3G-SDI) Output, 4 x HDMI Output

Transmitter Other I/O 1 x USB Type-C, 1×3-Segment 3.5mm TALLY Output, 1×DC Power Input, 1×RS485/RS422 Interface, 1×LAN Interface

Receiver Other I/O 1 x USB Type-C 1×DC Power Input, 1×RS485/RS422 Interface, 1×LAN Interface

Embedded Audio SDI, HDMI

Format Support

Video Format HDMI: 1080p at 24, 25, 30, 50, 59.94, 60 fps

1080i at 50, 60 fps

720p at 50, 60 fps

576p at 50 fps

480p at 60 fps

SDI:

1080p at 24, 25, 30, 50, 60 fps

1080i at 50, 60 fps

720p at 50, 60 fps

Display

Transmitter Panel Type OLED

Receiver Panel Type TFT

Power

Transmitter Battery Support 1 x Sony L-Series / NP-F Type

Receiver Battery Support 1 x V-mount large capacity battery

Transmitter Power Connector 1 x Barrel (7 to 36 VDC) Input

Receiver Power Connector 1 x Barrel (18 to 36 VDC) Input

Transmitter Power Consumption Device: (12 W)

Receiver Power Consumption Device: (32 W)

General

Transmitter Mounting 1 x 1/4''-20 Female, 2×3/8''-16 Female

Receiver Mounting 1 x 1/4''-20 Female, 2×3/8''-16 Female

Materials Metal

Transmitter Dimensions 3.46 x 1.18 x 5.67 / 8.8x 3 x 14.4 cm

Receiver Dimensions 5.82 x 2.44 x 9.53 / 14.8 x 6.2x 24.2 cm

Transmitter Weight 0.95lb / 431.5  g

Receiver Weight 3.57 lb / 1621g

In the Box

2x Transmitter

1x Receiver (Supports maximum 4 Transmitters)

15x 5GHz Antenna

1x User Manual

2x 7-Inch Magic Arm

1x OTG Cable

2x DC Conversion Cable

3x RS485/RS422 Interface Cable

1x Power Adapter
