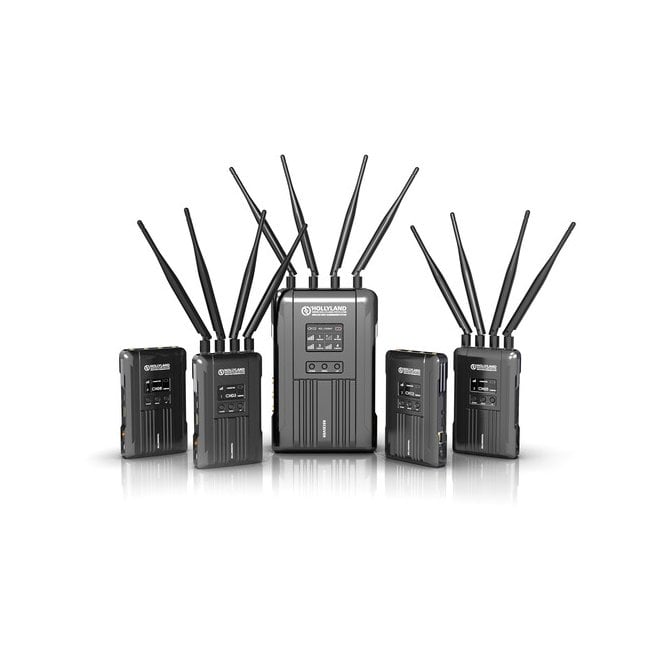

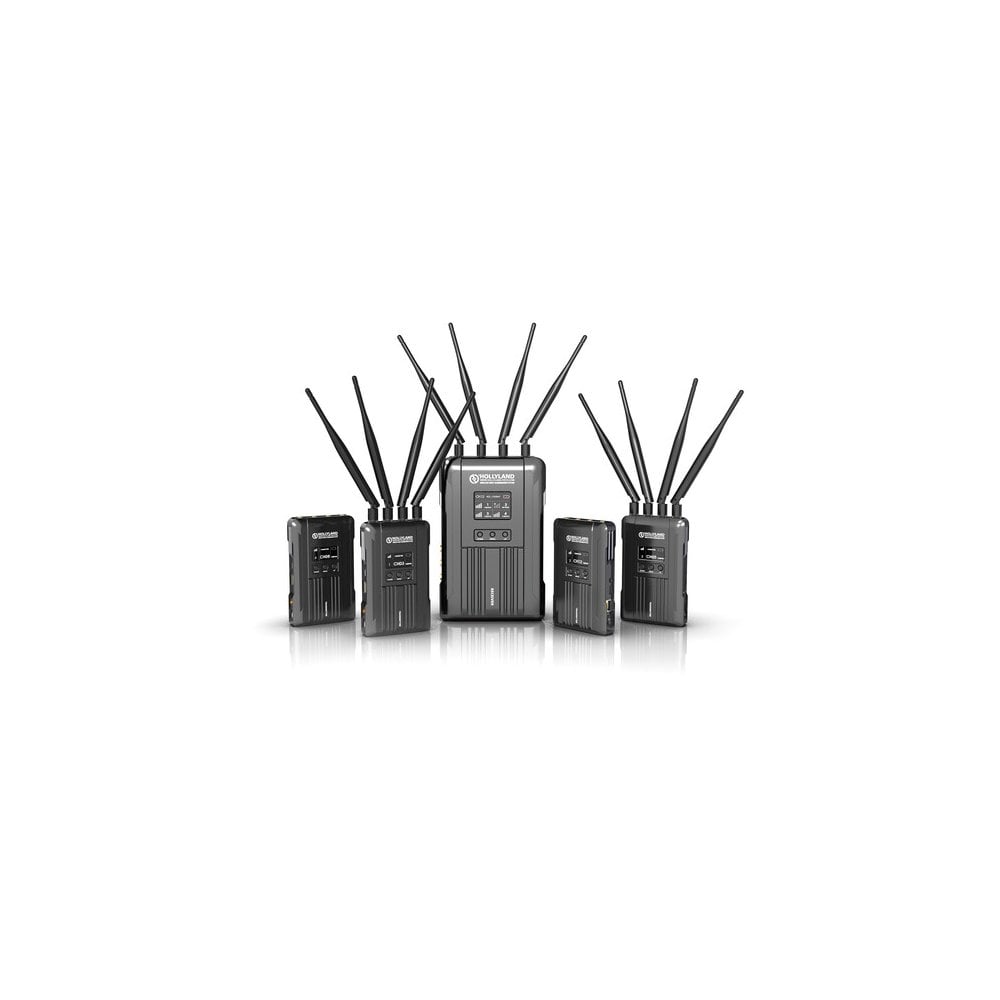

Hollyland Syscom-421-4:1 1800ft Video/Audio Transmission System

Hollyland Syscom-421-4:1 (Syscom/421/4:1, Syscom_421_4:1, Syscom 421 4:1, Syscom421-4:1, Syscom 421 (4:1)) 1800ft Video/Audio Transmission System

The Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally. Supporting up to 1080p60 video signals via SDI and HDMI, the transmitter/receiver system offers an 1800' line-of-sight transmission range with 0.07 second latency.

The receiver features 4 x SDI/HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can also connect the receiver to a LAN, allowing you to pass control signals from a control panel to the transmitters. This enables you to control PTZ cameras as well as send tally information. The transmitters have a dedicated tally output port. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power. The transmitters each have a built-in L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitter and receiver feature a 2-pin power input for extended run times.

Wireless

Wireless Range

• 1800' / 600 m (Line-of-Sight)

Channel Bandwidth

• 40 MHz

Frequency Range

• 5 GHz

Latency

• 0.07 sec (The lowest latency)

RF Power

• ≤ 22 dBm

RF Sensitivity

• -90 dBm

Wi-Fi

• Yes

Interfaces

Transmitter Antenna Ports

• 4 x RP-SMA Male

Receiver Antenna Ports

• 4 x RP-SMA Male

Transmitter Video Connectors

• 1 x BNC (3G-SDI / HD-SDI) Input
• 1 x HDMI Input

Receiver Video Connectors

• 4 x BNC (3G-SDI) Output
• 4 x HDMI Output

Transmitter Other I/O

• 1 x USB Type-C
• 1×3-Segment 3.5mm TALLY Output
• 1×DC Power Input
• 1×RS485/RS422 Interface
• 1×LAN Interface

Receiver Other I/O

• 1 x USB Type-C
• 1×DC Power Input
• 1×RS485/RS422 Interface
• 1×LAN Interface

Embedded Audio

• SDI
• HDMI

Format Support

Video Format

HDMI:

• 1080p at 24, 25, 30, 50, 59.94, 60 fps
• 1080i at 50, 60 fps
• 720p at 50, 60 fps
• 576p at 50 fps
• 480p at 60 fps

SDI:

• 1080p at 24, 25, 30, 50, 60 fps
• 1080i at 50, 60 fps
• 720p at 50, 60 fps

Display

Transmitter Panel Type

• OLED

Receiver Panel Type

• TFT

Power

Transmitter Battery Support

• 1 x Sony L-Series / NP-F Type

Receiver Battery Support

• 1 x V-mount large capacity battery

Transmitter Power Connector

• 1 x Barrel (7 to 36 VDC) Input

Receiver Power Connector

• 1 x Barrel (18 to 36 VDC) Input

Transmitter Power Consumption

• Device: (12 W)

Receiver Power Consumption

• Device: (32 W)

General

Transmitter Mounting

• 1 x 1/4"-20 Female
• 2×3/8"-16 Female

Receiver Mounting

• 1 x 1/4"-20 Female
• 2×3/8"-16 Female

Materials

Metal

Transmitter Dimensions

• 3.46 x 1.18 x 5.67" / 8.8x 3 x 14.4 cm

Receiver Dimensions

• 5.82 x 2.44 x 9.53" / 14.8 x 6.2x 24.2 cm

Transmitter Weight

•  0.95lb / 431.5  g

Receiver Weight

• 3.57 lb / 1621g

In the Box

• Transmitter x 4;
• Receiver x 1;
• 5GHZ Antenna x 25;
• User Guide x 1;
• 7-Inch Magic Arm x4;
• OTG Cable x 1;
• DC Conversion Cable x4;
• RS485/RS422 Interface Cable x 5;
• Power Adapter x 1.
