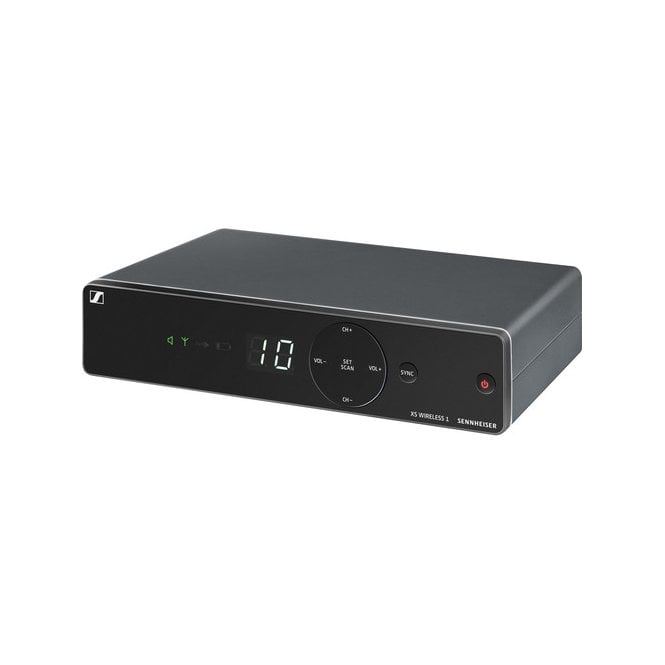

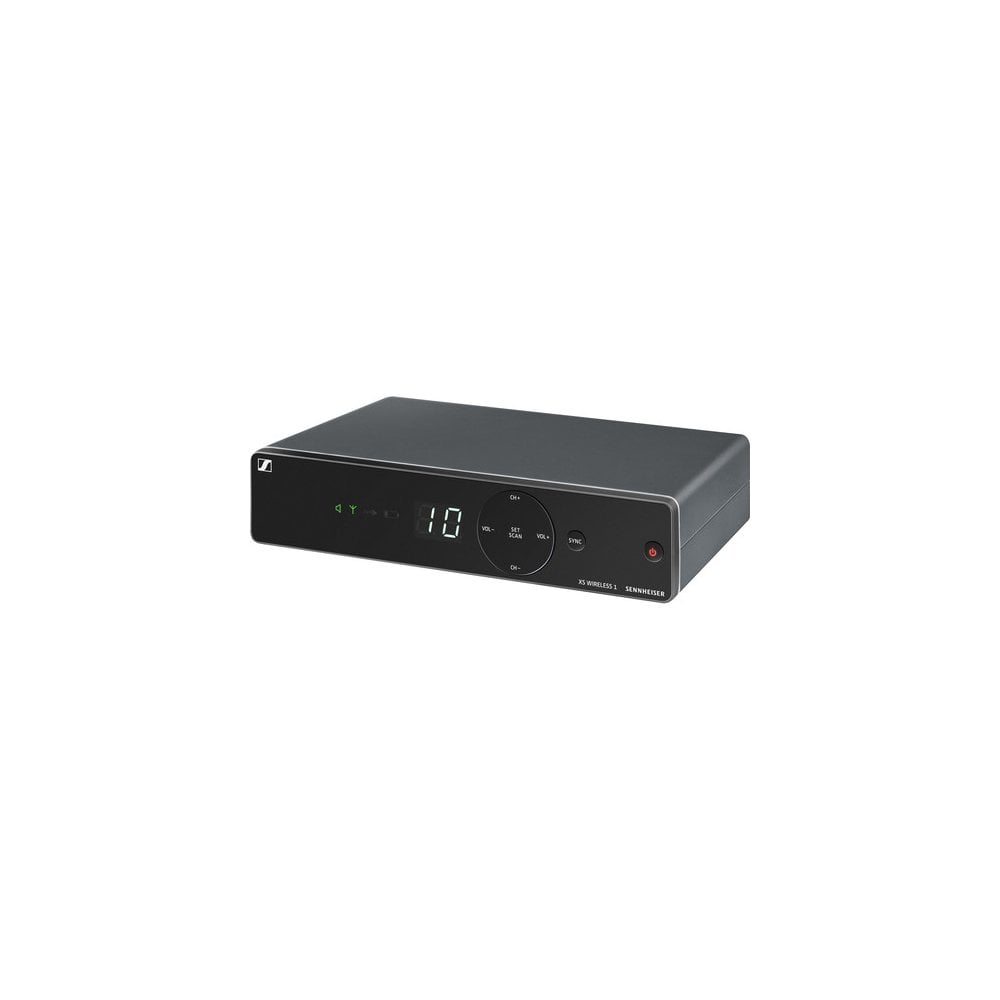

Sennheiser EM-XSW 1-A Table Top Receiver B Range

Sennheiser 507309 (507-309, 507/309, 507 309, 50-73-09) (EM/XSW 1-A, EM XSW 1-A, EMXSW 1-A) EM-XSW 1-A Table Top Receiver  B Range

The EM-XSW 1-B Table Top Receiver from Sennheiser is designed to be paired with the XSW 1-B handheld microphone or bodypack transmitter with a lavalier microphone (sold separately). It can be used to capture audio for live stage applications and features internal, integrated antennas, as well as automatic frequency management, which offers up to ten coordinated frequency presets for wireless applications.

The receiver is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with easy-to-use set up. No matter whether you're a band, a theater, or at a seminar, the XS Wireless 1 receiver lets you do your thing and not worry about equipment.

System

• Modulation: Wideband FM
• Frequency Range: B: 614 - 638 MHz
• Switching Bandwidth: Up to 24 MHz
• Signal to Noise Ratio: ≥ 103 dBA
• Total Harmonic Distortion: ≤ 0.9%
• Temperature Range: Operation: 32 to 104°F (0 to +40°C)
• Storage: -4 to 158°F (-20 to 70°C)
• Transmitter Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

Receiver

• Principle: Double superheterodyne
• Diversity: Antenna switching diversity via internal antennas
• Sensitivity: < 3 μV at 52 dBA RMS S/N (at peak deviation)
• Frequency Response: 50 Hz to 16 kHz (-3 dB)
• Max Output Voltage: At Peak Deviation, 1 kHz AF, 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu, XLR Socket (balanced): +12 dBu
• Adjustment Range: Audio: 45 dB, adjustable in 5-dB steps
• Power Supply: 12 VDC nominal/300 mA
• Squelch: Adjustable from 3 to 28 dB μV (combined with pilot tone)
• Line/Mic Level: 20 dB, switchable
• Material of Construction: ABS housing
• Dimensions (W x H x D): 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
• Weight: 12 oz (340 g)

In The Box

• Sennheiser EM-XSW 1-B Table Top Receiver (B: 614 - 638 MHz)
