Sennheiser SL Bodypack - MKE 2 KIT DW-3

Sennheiser SL Bodypack - MKE 2 KIT DW-3(509210)

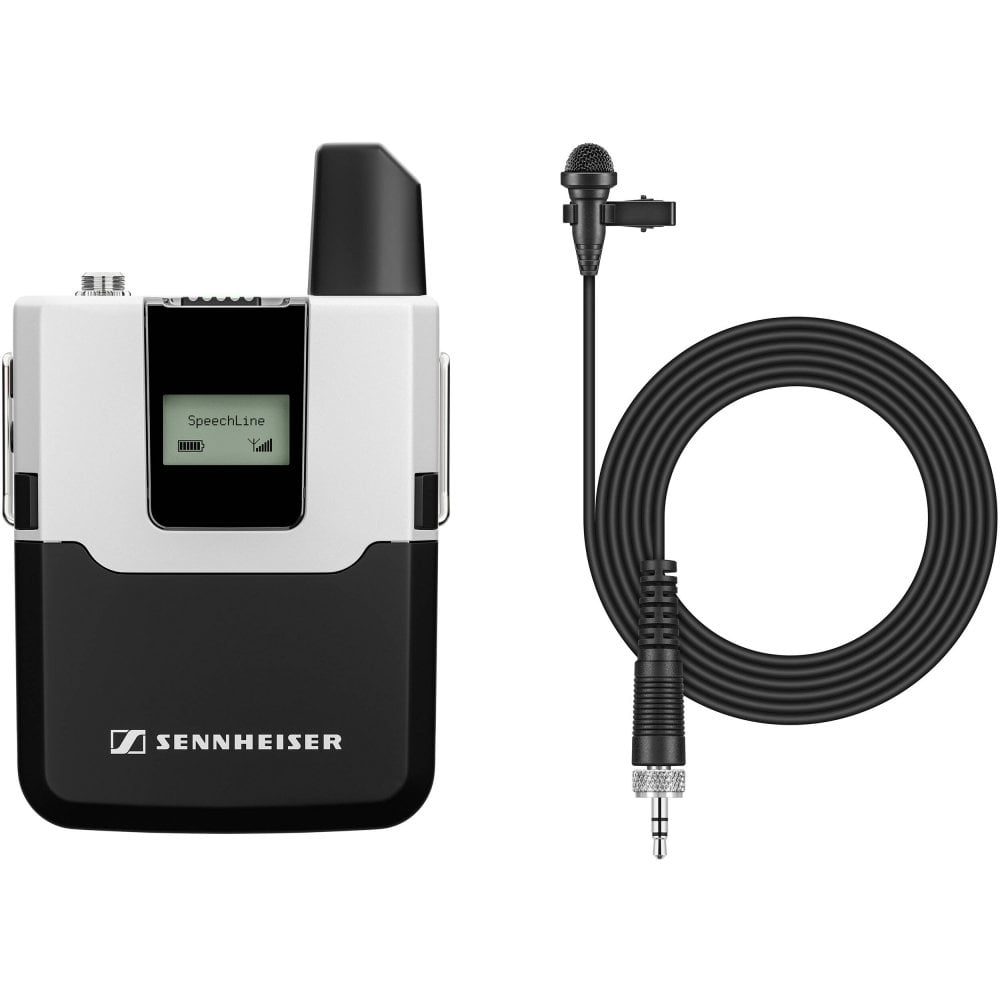

The SL Bodypack KITs DW are the perfect complement to the new SL Multi-Channel Receiver DW.

This KIT contains the compact and robust SL Bodypack DW bodypack transmitter, which is specially designed to transmit the spoken word and is compatible with all Sennheiser neckband and lavalier microphones (e.g. SL Headmic 1 or MKE 1). Thanks to the bi-directional communication between transmitter and receiver, no adjustments need to be made at the transmitter and the automatic frequency and interference management ensures easy setup and maximum transmission reliability. The transmitter's LC display shows the name of the radio link, the charge level of the battery pack(s) and the reception quality. With the easily accessible mute switch, the transmitter can be muted if necessary. The SL Bodypack DW is equipped with a rechargeable lithium-ion battery pack with external charging contacts for easy charging in the chargers and a USB socket for charging via USB.

Also included in the kit is the MKE 2 ew Gold, a high-quality, sub-miniature clip-on lavalier microphone which is suitable for all areas of live work. It fulfils the most stringent demands on sound quality and is extremely rugged. A special Umbrella Diaphragm™ and a welded housing protect the MKE 2 ew Gold against sweat and moisture. Colour: matte black.

Lockable 3.5 mm jack socket

Clear and easy focused user interface

Long operation time (up to 15 hours)

Advanced power management and Li-Ion rechargeables

Secure 256 bit AES encryption

Remote controllable

New Umbrella Diaphragm™ protects the mic against sweat

Very high sound pressure handling capability

Versatile attachment due to an extensive range of accessories

Frequency response 20 to 20,000 Hz

Operating time Accupack: typ. 15 h Batteries: typ. 10 h

Input voltage range Mic: 2.2 V RMS Line: 3.3 V RMS

Dynamic range > 120 dB(A)

Input impedance 1 MΩ

Sampling rates 24 bit/48 kHz

THD, total harmonic distortion typ. 0.1 %

Weight approx. 88 g

Audio input 3,5 mm socket, lockable

 Signal-to-noise ratio > 90 dB(A)

 RF output power adaptive, up to 250 mW (country-specific)

MKE 2

Sensitivity in free field, no load (1kHz)

5 mV/Pa +- 3 dB

Nominal impedance 1000 Ω

Min. terminating impedance 4700 Ω

Equivalent noise level 26 dB

Equivalent noise level weighted as per CCIR 39 dB

Maximum sound pressure level (passive) 142 dB

Current consumption ca. 250 µA

Operating voltage (stand alone) 7,5 V

Dimensions d 4,8 mm

Frequency response (Microphone) 20 - 20000 Hz +- 3 dB

Transducer principle (Microphone) Dauerpolarisiertes Kondensatormikrofon

Connection cable 3.5 mm Jack Plug

Weight 17 g

Pick-up pattern omni-directional

SL Bodypack DW

MKE 2 ew Gold

BA 30
