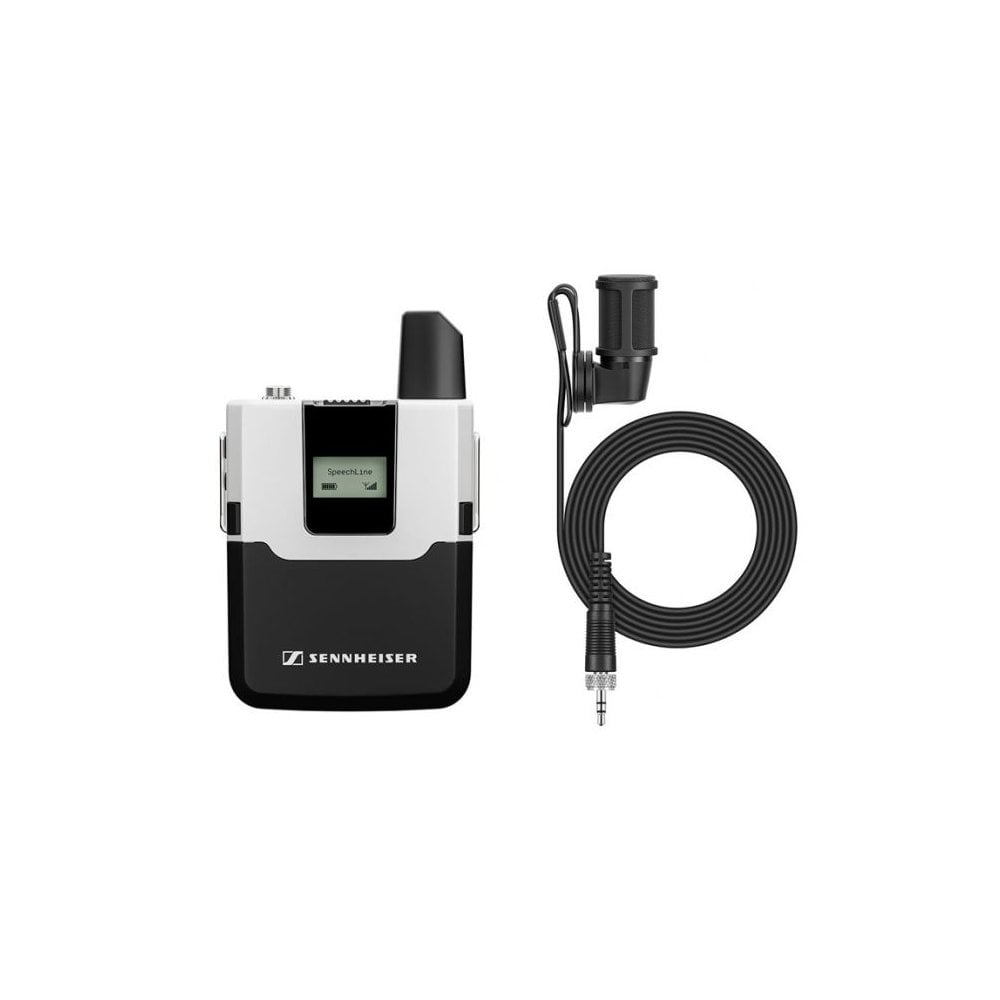

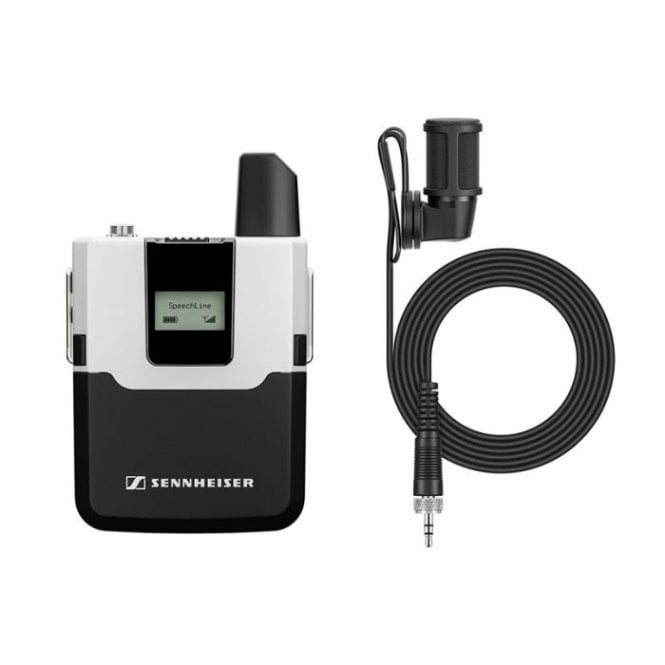

Sennheiser SL Bodypack - MKE 40 Kit DW-3

Sennheiser SL Bodypack - MKE 40 Kit DW-3(509225)

The SL Bodypack KITs DW are the perfect complement to the new SL Multi-Channel Receiver DW. This KIT contains the compact and robust SL Bodypack DW bodypack transmitter, which is specially designed to transmit the spoken word and is compatible with all Sennheiser neckband and lavalier microphones (e.g. SL Headmic 1 or MKE 1). Thanks to the bi-directional communication between transmitter and receiver, no adjustments need to be made at the transmitter and the automatic frequency and interference management ensures easy setup and maximum transmission reliability. The transmitter's LC display shows the name of the radio link, the charge level of the battery pack(s) and the reception quality. With the easily accessible mute switch, the transmitter can be muted if necessary. The SL Bodypack DW is equipped with a rechargeable lithium-ion battery pack with external charging contacts for easy charging in the chargers and a USB socket for charging via USB.

Also included in the kit is the MKE 40 ew, Clip-on microphone with cardioid pattern.

Frequency response 20 to 20,000 Hz

THD, total harmonic distortion typ. 0.1 %

Weight approx. 88 g

Audio input 3,5 mm socket, lockable

Signal-to-noise ratio > 90 dB(A)

RF output power adaptive, up to 250 mW (country-specific)

Operating time Accupack: typ. 15 h Batteries: typ. 10 h

Input voltage range Mic: 2.2 V RMS Line: 3.3 V RMS

Dynamic range > 120 dB(A)

Input impedance 1 MΩ

Sampling rates 24 bit/48 kHz

Mke 40

Dimensions d=12mm, l=26mm

Frequency response 40 - 20000 Hz

Pick-up pattern cardioid

Maximum sound pressure level (passive) MKE 40-ew: 118 dB (k=1%)

Sensitivity as per 121 TR 9-5 MKE 40-ew: 42 mV/Pa +- 2,5dB

SL Bodypack DW

MKE 40 ew

BA 30
