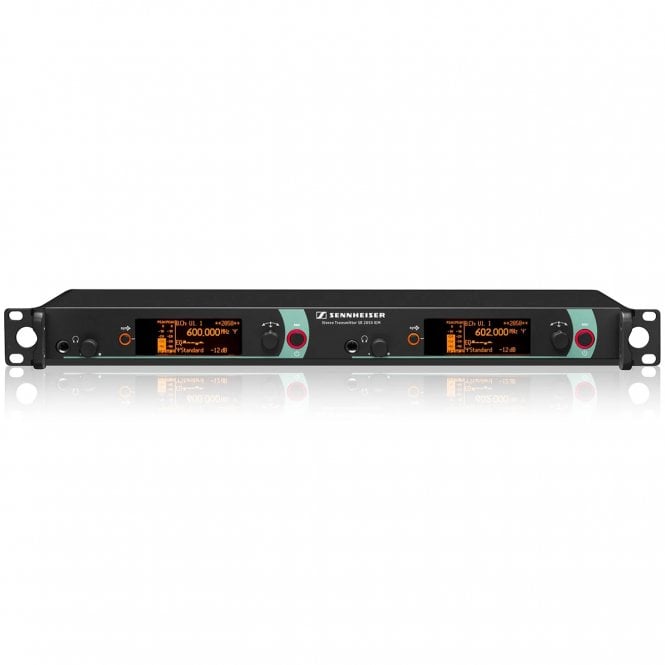

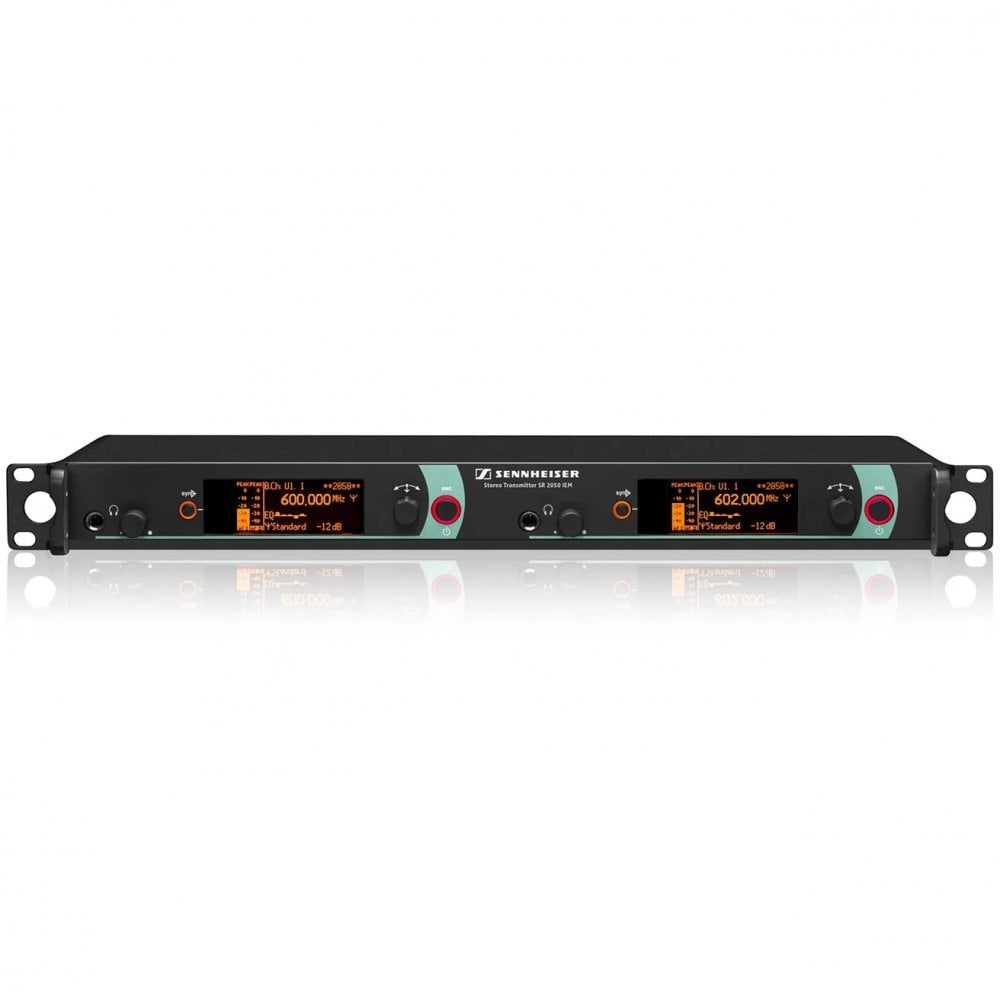

Sennheiser SR 2050 IEM-AW+

Sennheiser SR 2050 IEM-AW+(508644)

The SR 2050 rack-mount twin transmitter is an in-ear monitoring system designed to meet the highest demands for audio quality and RF transmission and is therefore the first choice for professional touring, broadcast, musical and theater applications. Network-compatible and remotely controllable with the Wireless System Manager (WSM) software.

Rugged 19" all-metal housing with integrated power supply unit

Up to 3000 frequencies in up to 75 MHz switching bandwidth

20 fixed frequency banks with up to 32 compatible presets

6 banks each with up to 32 tunable channels

Frequency setting in 25 kHz steps

Switchable RF output power for versatile use

Enhanced audio frequency response in the bass range

Receivers can be configured from the transmitter menu

Can be synchronized with the receiver using infrared interface

Monitoring and control using Sennheiser WSM PC software

User-friendly menu interface with two-color backlit graphic display (red as a warning)

Pilot tone transmission for interference-free operation

Adjustable headphone connections

For universal application due to extensive range of accessories

Modulation Wideband FM Stereo (MPX Pilot Tone)

Frequency Band AW+: 470 to 558 MHz

Number of RF Channels 3250

20 x Frequency Banks, Each with up to 32 Factory-Preset Channels, No Intermodulation

6 x Frequency Banks with up to 32 Programmable Channels

Switching Bandwidth AW+: 470 to 558 MHz

Nominal/Peak Deviation ±24 kHz/±48 kHz

MPX Pilot Tone Frequency/Deviation: 19 kHz/±5 kHz

Frequency Stability ±10 ppm

Antenna Output 2 x BNC Sockets, 50 Ohms

Auto Channel Selection Yes

IR Sync Yes

RF Output Power Low: 10 mW

Standard: 30 mW

High: 50 mW

(At 50 Ohms, Switchable)

Compander Sennheiser HDX

Frequency Response 25 Hz to 15 kHz

Audio Inputs 2 x BAL AF IN L (I): Combo XLR-1/4" / 6.3 mm Electronically Balanced

2 x BAL AF IN R (II): Combo XLR-1/4" / 6.3 mm Electronically Balanced

Headphone Output: 1/4" / 6.3 mm

Input Level +22 dBu, Max

Audio Outputs 2 x LOOP OUT BAL L (I): 1/4" / 6.3 mm Stereo Jacks

2 x LOOP OUT BAL R (II): 1/4" / 6.3 mm Stereo Jacks

Headphone Output >100 mW, at 32 Ohms

with Volume Knob

Ethernet 2 x RJ-45 Ethernet Ports

Display Backlit LCD: Current Frequency, Frequency Bank and Channel Number, Metering of AF Level, Transmission Status, Transmission Power, Equalizer Setting, Input Sensitivity, Lock Status

Total Harmonic Distortion <0.9%

Signal-to-Noise Ratio >90 dB

Temperature Range 14 to 131°F / 10 to +55°C

Power Supply 100-240 VAC, Auto-Switching, Built-In

Current Consumption 0.2 A

Material of Construction Metal

Dimensions 8.54 x 19.02 x 1.69" / 217 x 483 x 43 mm, Approx

Weight 5.95 lb / 2.7 kg, Approx

1 SR 2050 IEM transmitter

3 mains cables (EU, UK, and US)

2 rod antennas

1 instruction manual

1 supplementary frequency sheet

1 supplementary RF license sheet

4 device feet
