Sennheiser XSW IEM EK (C)

code: 509158
  • £247.00
  • RRP: £247.00
Status   |   Usually dispatched within 24 hours

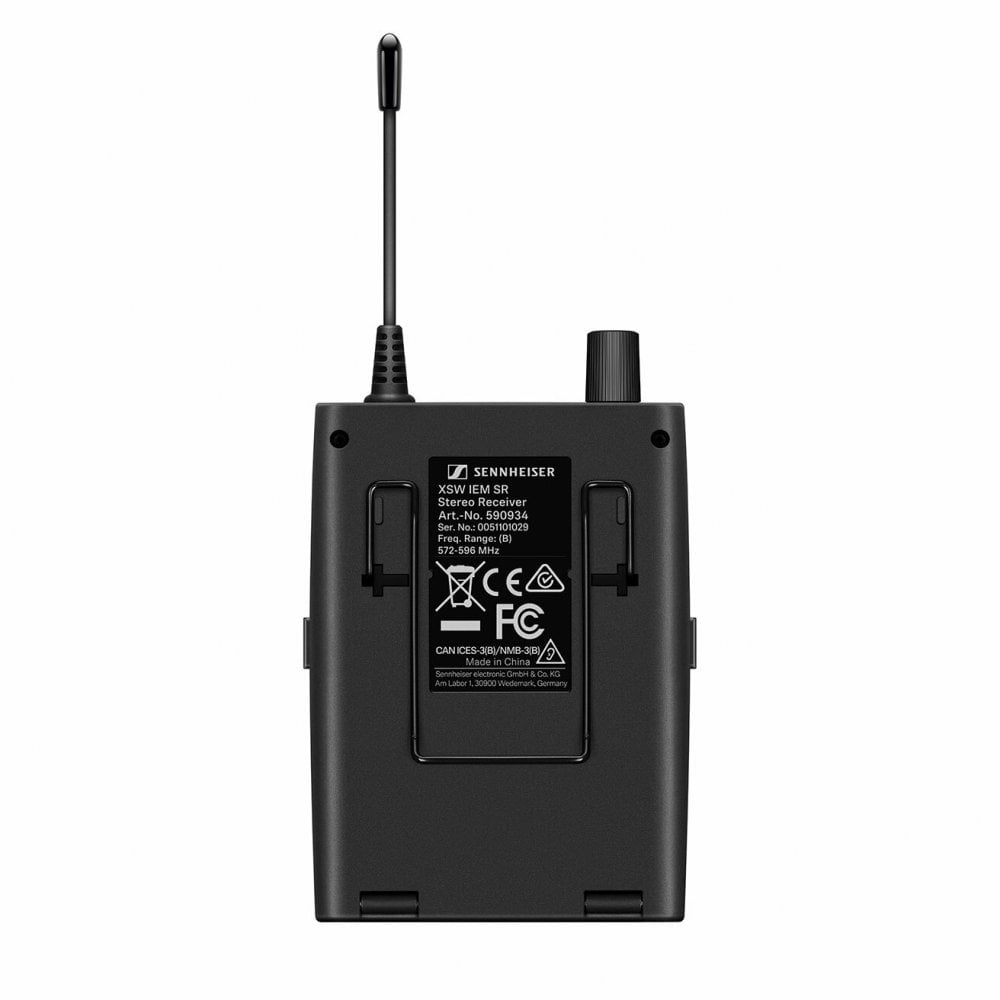

UHF bodypack receiver to expand existing XS Wireless IEM setups

Lightweight bodypack with rear clamp and stage-proof control panel

Standard 3.5 mm jack plug for supplied IE 4 in-ear monitors or optional in-ear sets

Backlit front panel and status LED for battery and link status

Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ

Pan control for individual balance of the input channels

Operates with 2x AA primary cells or rechargeable batteries

Sennheiser XSW IEM EK (C)(509158)

A professional IEM receiver is unnoticeable most of the time, but becomes a powerful tool with just a few clicks. That is the DNA of the lightweight XS Wireless IEM bodypack. You can easily expand any XS Wireless IEM setup by connecting additional receivers to your transmitter.

Its small status LED is all you might see during rehearsals or gigs. It signals both battery and wireless link status. The LC display only lights up when you access the well-secured settings panel. With just a few clicks, you can balance your in-ear mix, switch between focus modes, use an EQ for elevated high frequencies, enable the limiter, choose a new option from the preset channels, or set your frequency manually.

The standard 3.5 mm output is open for the included pair of IE 4 in-ear monitors – or you can upgrade your sound with a model of the IE PRO in-ear monitor line.

Advanced features like the limiter help you to protect your ears by clamping down on sudden loud signals. With the EQ option, you can get more air and extra brightness by boosting your sound at 13 kHz.

The bodypack operates with two AA primary cells or rechargeable batteries. Depending on the volume level, you can expect about six hours of operating time.



Frequency range

A 476-500 MHz

B 572-596 MHz

C 662-686 MHz

E 823,2-831,8 MHz

K 925,2-937,3 MHz


Approx. 95 x 70 x 26 mm

Weight (incl. batteries)

Approx. 110 g

Switching bandwidth

up to 24 MHz

Temperature Range

0 °C to +40 °C

AF frequency response

45 Hz to 15 kHz


Wideband FM

 Signal-to-noise ratio (1 mV, peak deviation)

≥88 dB

 AF output level at 3.5 mm

2 x 1,25 Veff at 16 Ω


High Boost (EQ)

+10 dB at 13 kHz

 Total harmonic distortion (THD)

≤ 1 %


-10 dB

Power supply

2 AA batteries, 1.5  V

 Operating time

Approx. 6 hrs


XSW IEM EK Stereo Receiver

IE 4 In-ear headphones

2 AA batteries
