Sennheiser XSW IEM SET (C)

Sennheiser XSW IEM SET (C) (509148)

Out of the box, the XS Wireless IEM set has all the components you need to set up your personal monitoring in minutes. XS Wireless IEM is the entry to Sennheiser’s renowned in-ear monitoring sound. It delivers the whole potential of in-ear monitoring with an elegant, easy-to-use interface. No tech expertise is needed to get all the benefits: You hear yourself perfectly in any environment and can aim for new levels of perfection.

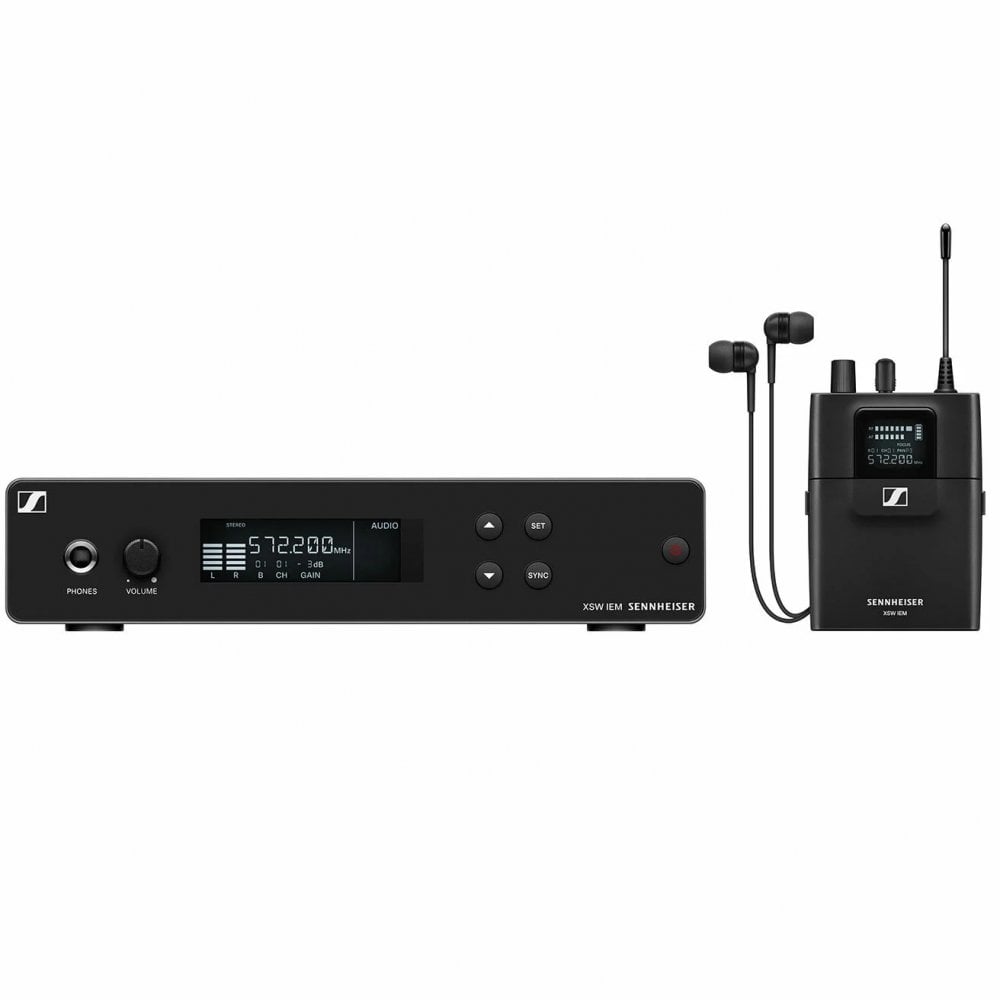

The system includes a rugged transmitter, a lightweight bodypack receiver, IE 4 in-ear starter headphones, batteries, a power supply with multi-voltage adapter, and a rack mount kit for the transmitter.

Eight pre-configured frequency banks in the professional UHF range (with 12 perfectly aligned channels each) keep your connection reliable and clear in every situation. Standard and advanced features make XS Wireless IEM flexible in both small and large applications. The series scales with your demands during rehearsals or live shows, on a club stage or for a worship service. Multiple audio modes match varying performances and mixing demands. You can easily change to mono, stereo, or a two-channel focus mode.

The stereo receiver bodypack, although lightweight, is designed with live stages in mind. Setting options are well secured behind a stage-proof panel. A status LED keeps you informed about battery and connection status, while the LC display offers access to further settings. You can fine-tune your preferred focus mode for in-ear monitoring, balance your mix, switch the EQ to enhance the higher frequencies, or select your channel or a manual frequency.

The stereo transmitter comes with a rugged metal housing. Fine-tuning the most important options has never been easier. Whether you want to increase gain, check the frequency setup, or sync some more receivers for your band setup: It all needs fewer clicks than the count-in of your drummer. A rack mount kit and a removable antenna allow for flexible setups and configurations.

The set also includes a pair of IE 4 in-ear headphones. They reproduce outstanding sound quality and high dynamics, and are equipped with exchangeable ear sleeves to give a secure and comfortable fit. You get a good isolation from environmental noise as well as a very good bass response.

XSW IEM EK Stereo Receiver

Frequency range

A 476-500 MHz

B 572-596 MHz

C 662-686 MHz

E 823,2-831,8 MHz

K 925,2-937,3 MHz

Dimensions

Approx. 95 x 70 x 26 mm

Weight (incl. batteries)

ca. 110 g

Switching bandwidth

up to 24 MHz

Temperature Range

0 °C to +40 °C

AF frequency response

45 Hz to 15 kHz

Modulation

Wideband FM

Signal-to-noise ratio (1 mV, peak deviation)

≥88 dB

AF output level at 3.5 mm

2 x 1,25 Veff at 16 Ω

High Boost (EQ)

+10 dB at 13 kHz

Total harmonic distortion (THD)

≤ 1 %

Limiter

-10 dB

Power supply

2 AA batteries, 1.5  V

Operating time

Approx. 6 hrs

XSW IEM SR Stereo Transmitter

Frequency Ranges (RF Output Power)

A 476-500 MHz (30 mW)

B 572-596 MHz (30 mW)

C 662-686 MHz (30 mW)

E 823,2-831,8 MHz (30 mW)

K 925,2-937,3 MHz (10 mW)

Dimensions

Approx. 200 x 128 x 42 mm

Weight

Approx. 700 g

Switching bandwidth

up to 24 MHz

 Temperature Range

0 °C to +40 °C

AF frequency response

45 Hz to 15 kHz

Modulation

FM Stereo

Signal-to-noise ratio (at nominal load and peak deviation)

≥88 dB

Current consumption

Approx. 400mA (depending on volume level)

Input rating

+12 V DC

Input

2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced

Antenna Output

BNC socket, 50 Ω

NT 12-5CW Power supply

Input voltage range

100 to 240 V~200mA, 50/60 Hz

Storage temperature

-20 °C ... +60 °C (4 °F ... +140 °F)

XSW IEM EK Stereo Receiver

XSW IEM SR Stereo Transmitter

IE 4 In-ear headphones

2 AA batteries

XSW Rack mount kit

NT 12-5CW Power supply + Country Adapter

Quick guide

Safety Guide
