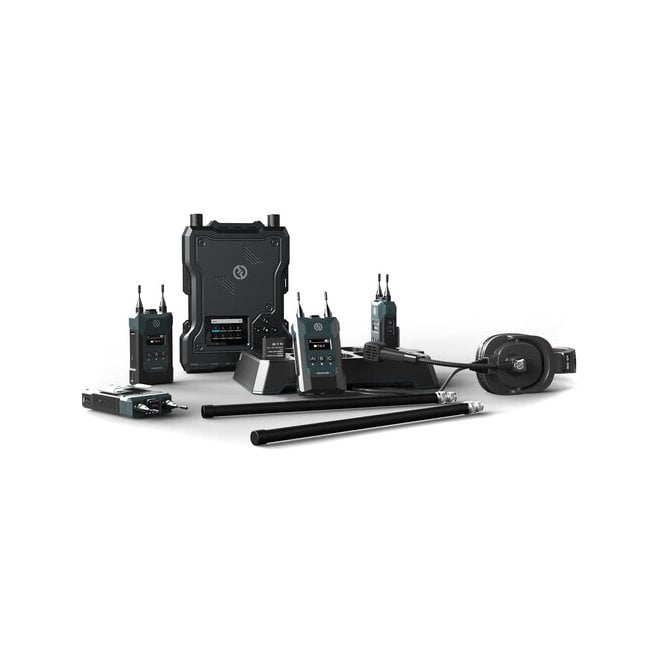

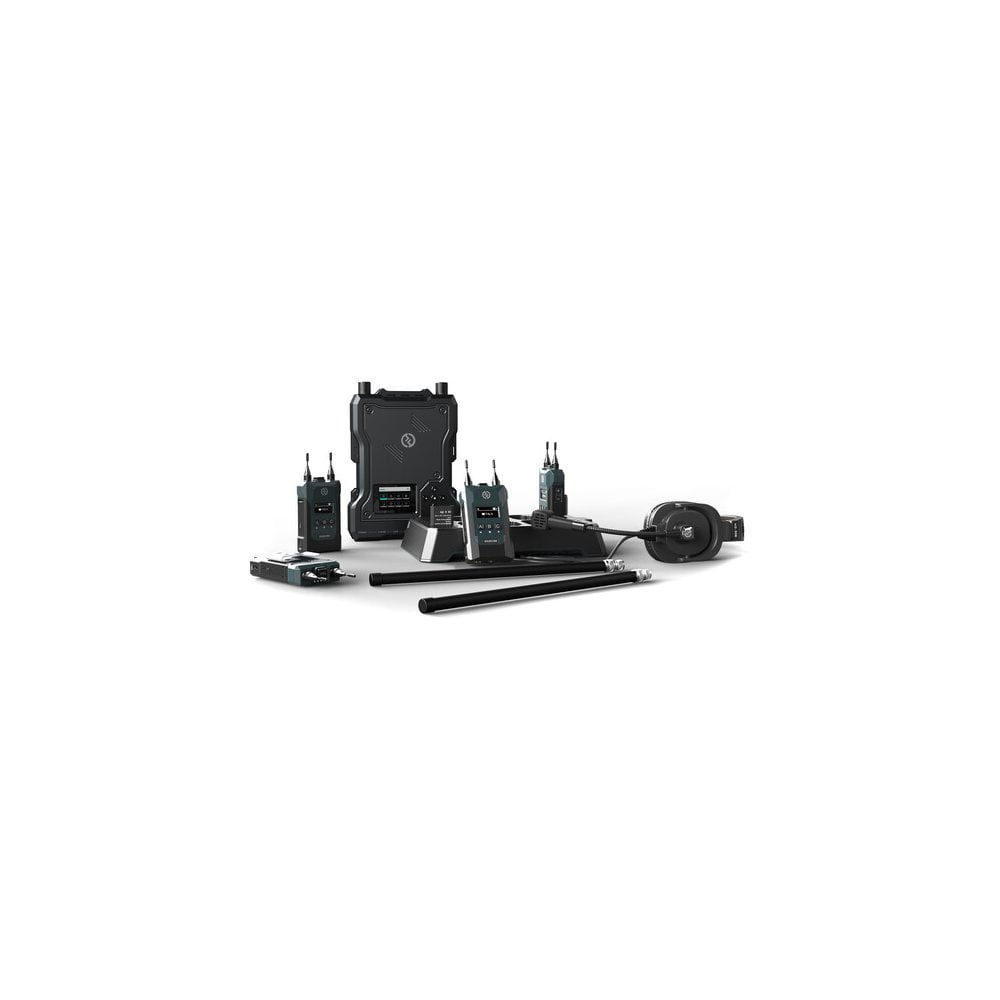

Hollyland Solidcom-M1-4B Solidcom M1 Full Duplex Wireless Intercom System

Hollyland Solidcom-M1-4B (Solidcom/M1/4B, Solidcom_M1_4B, Solidcom M1-4B, HL-Solidcom M1-4B) Solidcom M1 Full Duplex Wireless Intercom System

With the major technical breakthrough, Hollyland is proud to present you with a whole new series of full-duplex wireless intercom - Solidcom. As the first member of this series, Solidcom M1 is your go-to choice for micro-mid events with a capacity of from 100 to 1000 guests, including church events, electronic field productions, exhibitions, concerts, etc.

Enhanced Audio Quality

Adopting self-developed Noise-Cancellation Algorithms and super-wide frequency response, Solidcom M1 delivers authentic and premium sound at a broadcast-level sampling rate.

Enhanced Operating Experience

An integrated panel antenna is embedded in the base station for effortless setup. Featuring a minimalist button design, the beltpack provides you intuitive operating experience. In addition, settings and grouping of the whole set can be adjusted easily via the base station, APP or web.

Enhanced Capacity

Each standard Solidcom M1 package comes standard with 8 beltpacks and supports cascade connection of multiple devices as well as maximum 3 communication groups.

General Info

Number of Included Headsets

• 4 x Single-Sided Headset

Number of Included Transceivers

• 1 x Base Station
• 4 x Beltpack

Number of Included Charging Base

• 1 x Charging Base

Frequency Response

• 200Hz to 7KHz

Signal-to-Noise Ratio

• ＞50dB

Distortion

• ＜1%

Headphone

Earpiece Design

• Over-Ear (Circumaural)

Sound Field

• Mono

Wireless Connectivity

RF Bandwidth

• 1.728 MHz

Wireless Modulation

• GFSK

Duplex Mode

• Full-Duplex (FDX)

Transmit Power

• Maximum 21dBm

Approximate RF Sensitivity

• -93 dBm

Wireless Range

• 1476' / 450 m

Base Station

I/O Connectors

• 1 x Power Supply Interface (RJ45)
• 1 x POE Interface (RJ45)
• 1 x 4 Wire Audio Interface (RJ45)
• 1 x USB Interface
• 1 x 2 Wire Audio Interface (XLR)

Dimension

• (L*W*H): 255.5*180.4*48.5mm

Weight

• About 1560g

Antenna

• 2 x External Omnidirectional Fiberglass Antenna
• 1 x Internal Panel Antenna

AC/DC Power Supply

• 2 x NP-F Battery (6.5 to 16V DC)
• 1 x POE Power Adapter (44 to 57V DC)

Power Consumption

• 3 W

Beltpacks

Maximum Users per System

• 4

I/O Connectors

• 1 x 3.5mm Headset Interface
• 1 x LEMO Headset Interface
• 1 x USB-Type-C Interface

Dimension

• (L*W*H): 105*65*22.4mm

Weight

• About 200g

Antenna

• 2 x External

Power Supply

• 1 x rechargeable Li-ion Battery

Capacity (mAh)

• 1500 mAh

Runtime

• About 6 Hours

Power Consumption

• 0.6W

Charging Base

AC /DC Power Interface

• 1 x 4pin XLR Power Interface

Dimension

• (L*W*H): 273*184*41.5mm

Weight

• About 900g

Environmental

Charging Temperature

• 32 to 113°F / 0 to 45°C

Operating Temperature

• 32 to 113°F / 0 to 45°C

Storing Temperature

• -4 to 140°F / -20 to 60°C

Certifications

• CE, FCC, RoHS, TELEC, NCC as per Manufacturer

Packaging Info

Box Dimensions (LxWxH)

• 25.6 x 20.5 x 12.3"

In the Box

• Station x 1
• Beltpack x 4
• Charging Base x 1
• High Gain Omnidirectional Antenna x 2
• LEMO Single-Ear Headset x 4
• RJ45 to XLR Cable (5 meters) x 1
• USB-Type-A to Type-C Cable x 1
• POE Adapter x 1
• 4-Pin XLR Adapter x 1
• Beltpack Battery x 8
• 3/8 Installation Accessory x 1
• User Guide x 1
