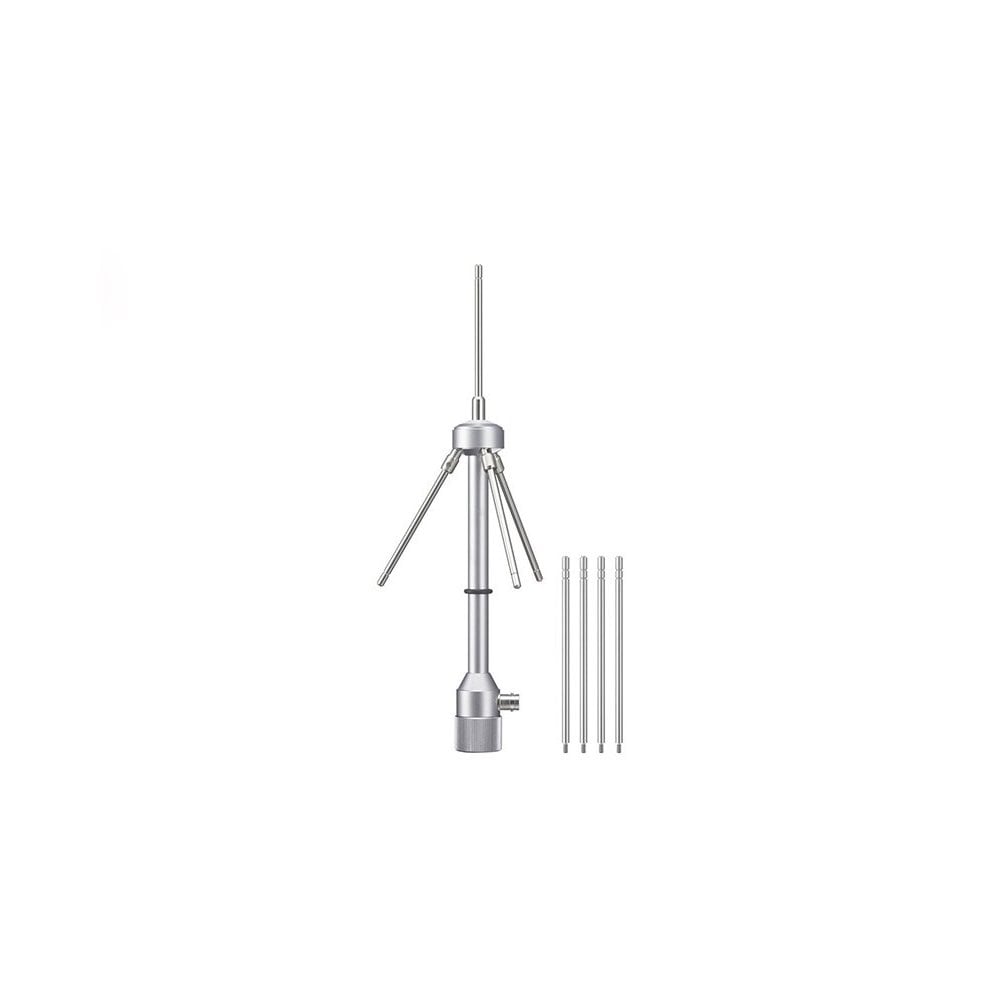

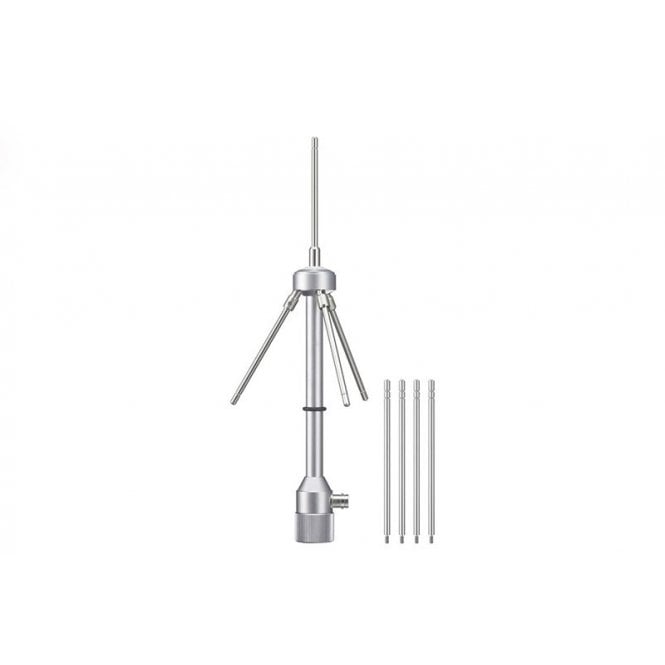

Sony AN-57/W Ground Plane Hall Broadcast Wireless Antenna

Sony AN-57/W (AN-57-W, AN/57/W, AN_57_W, AN57W, an-57/w) Ground Plane Hall Broadcast Wireless Antenna

UHF Wireless Hall Broadcast Ground Plane Antenna. Collapsible design, non-directional so reception possible from any direction.

Suitable for Hall and Broadcast applications.

• Antenna type: Ground plane antenna
• Frequency range: 638 MHz to 810 MHz (When supplied elements are attached: 470 MHz to 638 MHz)
• Polarization: Vertical
• Directivity: Horizontal, omnidirectional
• Gain: 0 dBi (from center frequency)
• Voltage standing wave ratio: 3 or less (from center frequency)
• Impedance: 50 Ω (representative value)
• Output connector: BNC-R type
• Stand screw: PF 1/2
• Mass: Approx. 280 g (9.9 oz.)
• Dimensions: Ø121 × 288 mm (4 7/8 × 11 3/8 in.)

(When supplied elements are attached: Ø153 × 320 mm (6 1/8 × 12 5/8 in.))

In the box

• 1x AN-57/W UHF Ground Plate Antenna
• 1x Operating Instructions
• 4x Antenna Elemens
