Sony Digital Wireless Bodypack Transmitter

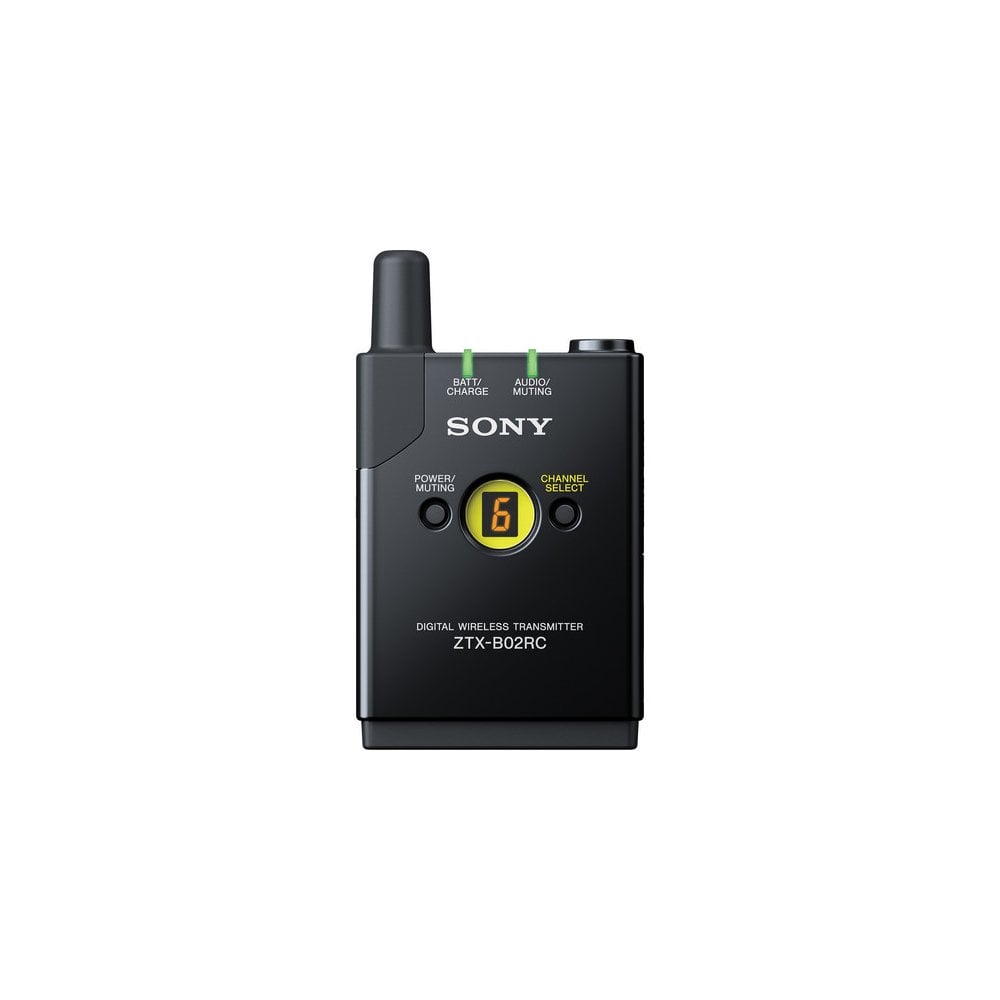

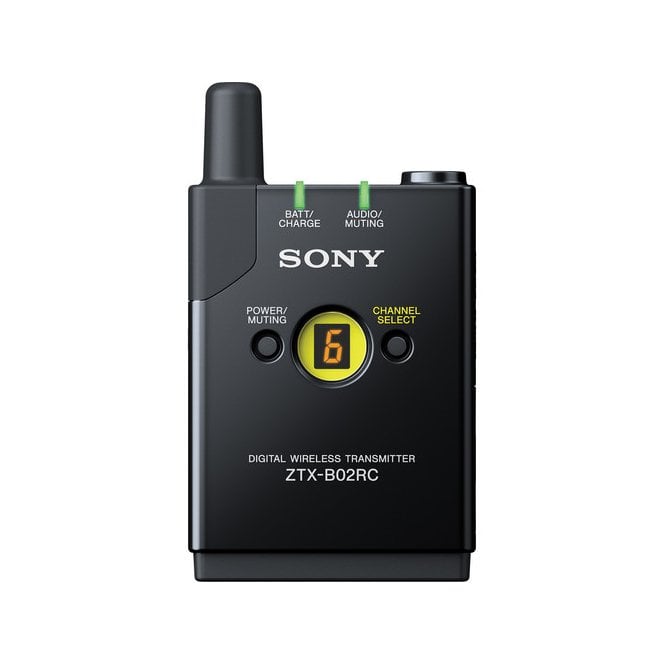

Sony ZTX-B02RC (ZTX/B02RC, ZTX_B02RC, ZTX B02RC) Digital Wireless Bodypack Transmitter

The ZTX-B02RC Digital Wireless Bodypack Transmitter from Sony is a bodypack transmitter designed to work with the DWZ wireless systems. It is capable of transmitting 24-bit linear PCM digital data with 128-bit encryption for secure use. It has two RF transmission modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in.

• Transmitter Type: Bodypack
• Carrier Frequency Range: 2402.0 to 2478.5 MHz
• RF Power Output: 10 mW (e.i.r.p)
• Frequency Response: Transmission: 10 kHz to 22 kHz
• Dynamic Range: Mic input: 102 dB A-weighted, Instrument/Line input: 98 dB A-weighted
• Audio Delay: Narrow Band: 3 ms, approximate, Wide Band: 6 ms, approximate
• Distortion (THD): 0.03% or less (-38 dBu, 1 kHz input)
• Encryption: AES 128-bit
• USB: 1x USB for firmware update
• Power Requirements: 3 V DC (2x AA alkaline dry cell batteries)
• Battery Operating Time: 10 hours continuous use, approximate @ 77°F (25°C) ambient temperature
• Operating Temperature: 32 to 122°F (0 to 50°C)
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Dimensions (W x H x D): 2.4 x 3.4 x 0.7" (63 x 87 x 20 mm)
• Weight: 5.7 oz (162 g)

In the box

• Sony ZTX-B02RC Digital Wireless Bodypack Transmitter
