Sony Digital Wireless Receiver EU Version

Sony ZRX-HR50//EU8 (ZRX/HR50//EU8, ZRX_HR50//EU8, ZRX HR50//EU8) Digital Wireless Receiver EU Version

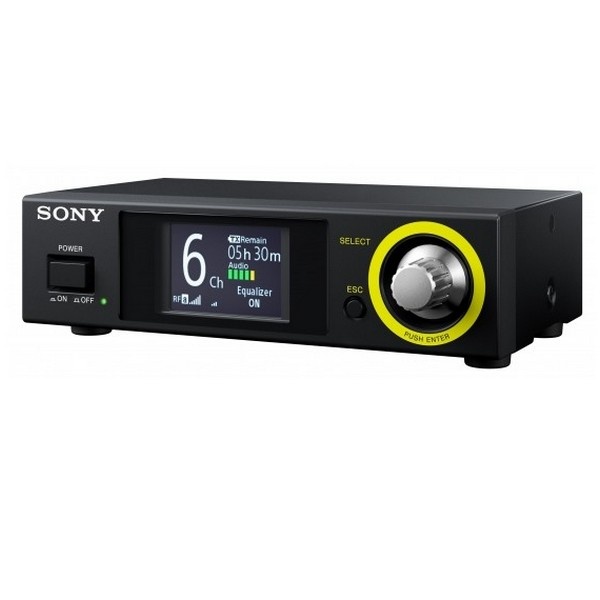

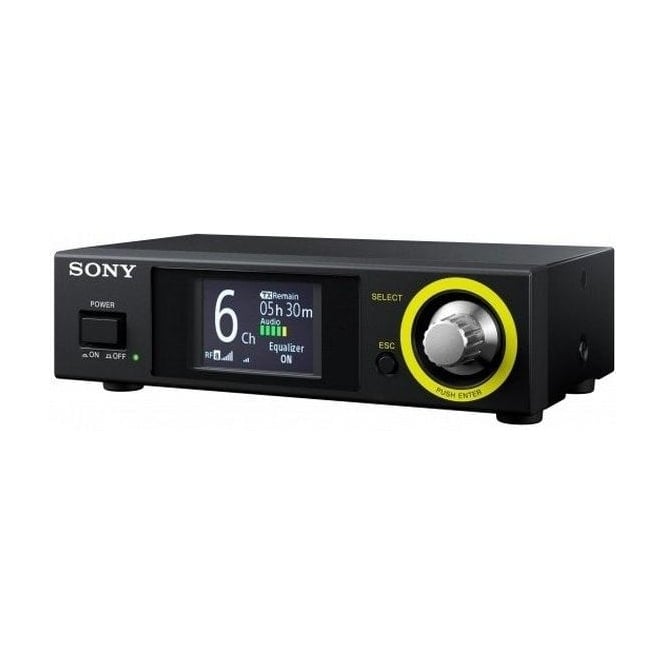

The ZRX-HR50 Digital Wireless Half-Rack Receiver from Sony is designed to be used in DWZ digital wireless systems. It features Sony's Clear Channel Scan and Best Channel Selection that scan available frequencies and tunes itself to clearest channel for quick setup. It has two RF modes to select from, wide band hopping and narrow band hopping, allowing you to choose the mode that will provide the least amount of interference based upon the RF environment you are in. The ZRX-HR50 has a front-panel color LCD that provides a readout of your selected channel, audio level, and transmitter battery life. The rotary encoder allows you to make adjustments to the system, including the 5-band equalizer.

The unit has a balanced XLR output that you can assign to mic or line level in additional to an unbalanced 1/4" out. A second 1/4" tuner output allows you to integrate the ZRX-HR50 into a wireless instrument system.

• Type: Single channel, 1/2 rackmount receiver
• Reception Type: Space diversity
• Antenna Type: External whip antenna
• Receiving Frequency: 2402.0 to 2478.5 MHz
• RF Sensitivity: 24 dBiV or less
• Analog Output: 1x Balanced XLR-3, 2x 1/4" (6.3 mm) Unbalanced phone jack
• Display: Color LCD
• USB Port: 1x USB, for firmware updates
• Power Requirements: 12 V DC
• Operating Temperature: 32 to 122°F (0 to 50°C)
• Storage Temperature : -4 to 140° (-20 to 60°C)
• Dimensions (W x H x D): 6.6 x 1.7 x 3.7" (168 x 44 x 96 mm)
• Weight: 1.12 lb (510 g)

In the box

• Sony ZZRX-HR50//EU8 Digital Wireless Half-Rack Receiver
• AC Adapter
• 2 x Antennas
