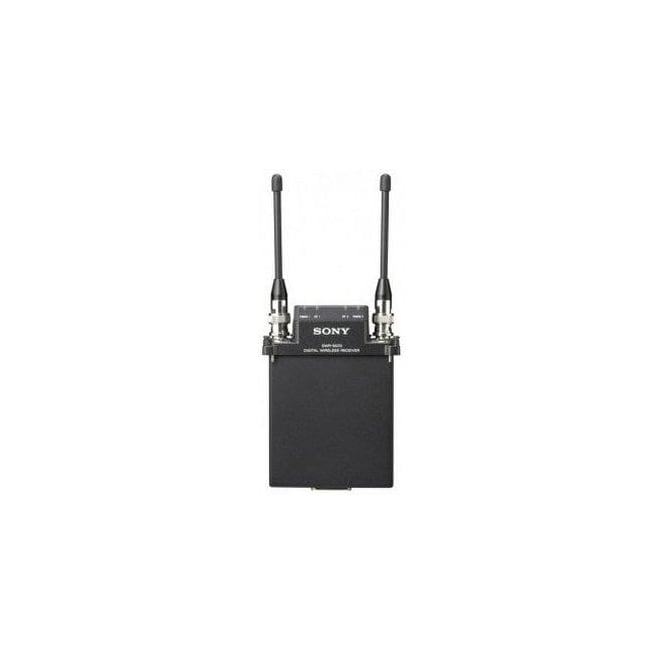

Sony Dual Channel Digital Wireless Receiver

Sony DWR-S02D/42 (DWRS02D42, DWR S02D 42, DWR/S02D42) Dual Channel Digital Wireless Receiver

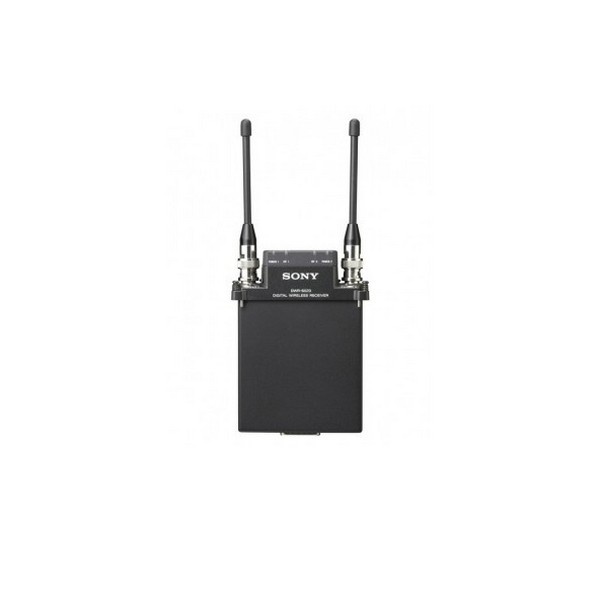

The Sony DWRS02D/42 Dual Channel Digital Wireless Receiver is a digital dual-channel slot-in receiver.

It operates within a 60 MHz range, from 638 to 698 MHz. The slot-in receiver can be mounted directly onto Sony digital slot-in compatible camcorders; the receiver then facilitates 2-channel wireless operation with unique wireless remote control of the digital wireless system from the camera viewfinder.

It can also be mounted on existing cameras (or operated in a mixer bag) using the DWA-01D or DWA-F01D adapters, providing either AES3 digital audio or analog audio output. To assist in the wireless system set-up, the receiver includes both clear channel and active channel scan functions.

• Mounts directly onto HDW-650F, PDW-700/F800, PWM-500, and PMW-350/320/TD300 camcorder slots
• Supports 2 channel AES3 or analog output
• Includes clear channel and active channel scanning modes
• Innovative wireless remote control of the transmitter from the receiver (using 2.4 GHz IEEE802.15.4 communication technology)
• UHF-TV channels 42 to 51 (638 to 698 MHz)

• Audio Output Connector: D-sub 15 pin
• Compatible With: For use with DWX Series digital wireless products operating within the same frequency block
• Power Requirements: Powered by compatible camera slot, DWA-01D or DWA-F01D adapter
• Channels: Receiving: UHF-TV channels 42 to 51 (638 to 698 MHz)
• Dimensions: 3.5 x 5.5 x 1.25" (88.9 x 139.7 x 31.75 mm)
• Weight: 9 oz (255.14 g)

In the box

• Sony DWRS02D/42 Dual Channel Digital Wireless Receiver
• 2 x Whip Antennas
• USB Cable Adapter
• USB Cable
• Frequency List
• Operating Instructions
