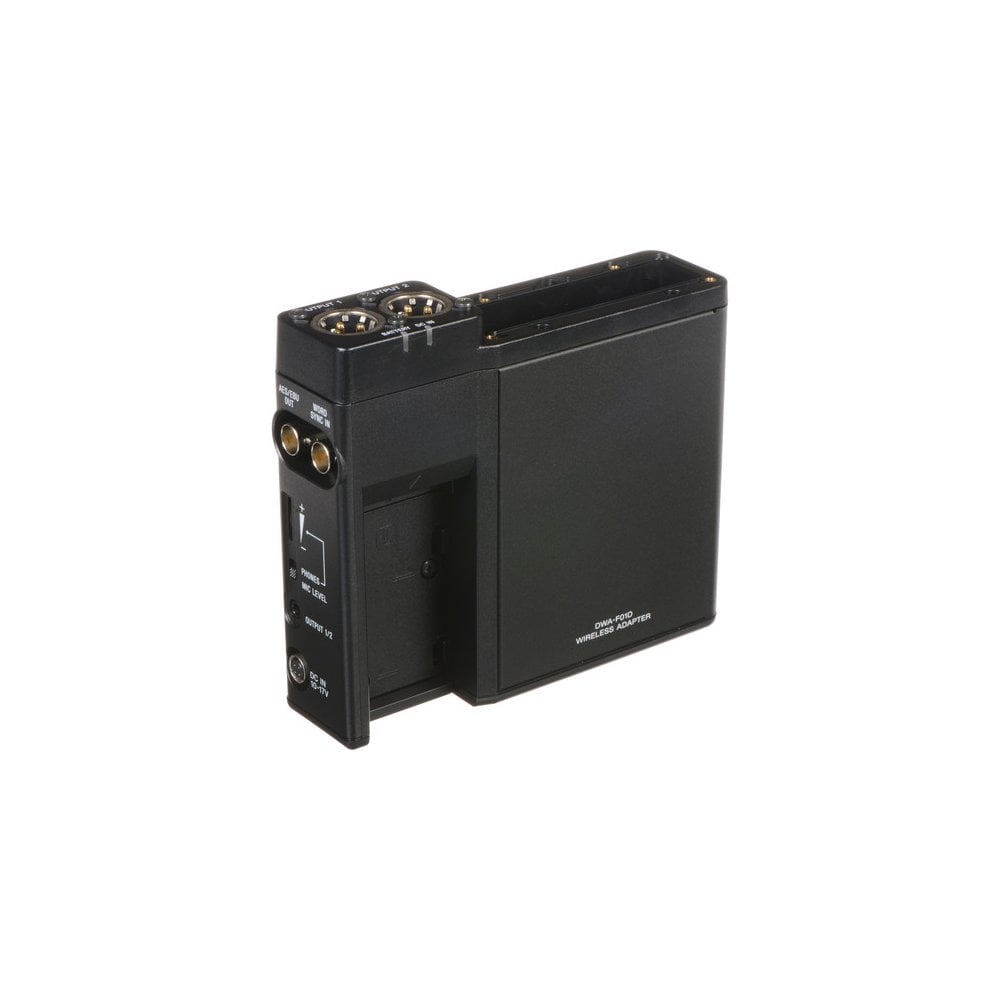

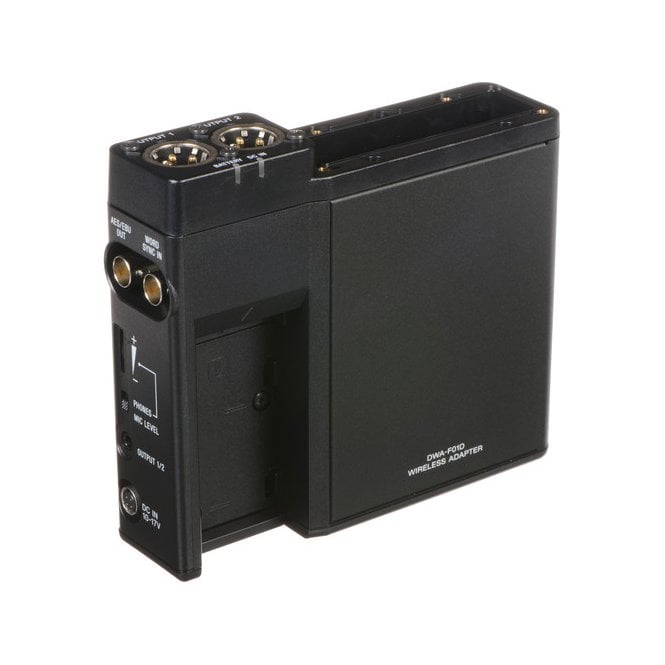

Sony DWA-F01D Digital Wireless Adaptor for DWX System

Sony DWA-F01D (DWA/F01D, DWA_F01D, DWAF01D, DWA F01D, dwa-f01d) Digital Wireless Adaptor for DWX System

The DWA-F01D is an expandable adaptor for digital wireless receiver, designed to fit in mixer bags for ENG / EFP applications requiring top panel operation and the option of stand-alone battery power. The DWA-F01D can be used as a two-channel digital receiver with the DWR-S01D, and as a one-channel analogue receiver with the WRR-855S. The unit is also able to offer DWX digital audio for camcorders that do not feature an integral slot-in feature.

The DWA-F01D can be used as a stand-alone two-channel digital receiver with the DWR-S01D, DWR-S02D or DWR-S02DN, and as a stand-alone one-channel analog receiver with the WRR-855S.

Three-way parallel audio outputs allow sound engineers to flexibly manage everything on-site. There is XLR analogue output for use with portable audio mixers or camcorders, BNC Digital (AES3id) output for use with portable audio recorders with AES3id digital inputs or long-distance AES3id transmission, and mini-phone analogue output for use with PCM recorders and DSLRs. Simultaneous outputs enable easy, convenient and redundant work-flow, for example, using the XLR for mixing, AES3id for multi-track recording, and mini-phone for back up.

(The mini-phone jack is selectable for headphones monitoring or mic level output.)

Three-way powering allows sound engineers to adapt to any situation on-site. Choose an optional InfoLITHIUM L battery for stand-alone use. Choose Hirose 4-pin DC input for camera-mount operation, with DC supplied from a camera battery. For mixer-bag use with battery systems, centralized management can be achieved using the Hirose 4-pin or BP jack. For AC powering, you can use an InfoLITHIUM battery charger as an AC adapter, or use a conventional AC adaptor with the BP jack.

Audio Section

• Analog OutputXLR-3-32 (male) (x2)
• Reference output level : -58 dBu
• Reference output level : -52 dBu
• Output Impedance : 150 Ω or less
• o3.5 mm TRS jack (MIC LEVEL selected)

Digital Output

• Reference output level : -36 dBFS/-20 dBFS (switchable)
• Output Impedance : 75 Ω
• BNC-R

Other Equipment

• Headphone OutputOutput level : 50mW (16 Ω load, at T.H.D = 1 %)
• o3.5 mm(5/32 inch) stereo mini jack (PHONES selected)

Word Sync:

• Input Impedence : 75 Ω
• Input connector : BNC-R
• External Word Sync : 32 kHz to 96 kHz

General
Power Requirements:

• InfoLITHIUM L battery (optional):

DC jack:

• 6 V DC to 8.4 V DC (7.2 V DC nominal)

4-pin DC input:

• 10 V DC to 17 V DC (12 V DC nominal)

Battery Operating Time:

• Approx. 5 hours

(Ambient temperature of 25 °C (77 °F), fully charged Sony NP-F570 lithium-ion battery, OUTPUT 1/2 unused, DWR-S01D CH1/CH2 ON, wireless remote control function OFF, auto switch for display set to AUTO DIMMER)
Operating Temperature:

• 32°F to 122°F
• 0°C to 50°C

Storage/Transport Temperature:

• -4°F to +140°F
• -20°C to +60°C

Dimensions *[1]:

• 5 5/8 x 5 x 1 9/16 inches
• 142 x 125 x 39 mm
• (W x H x D)

Mass:

• Approx. 400 g (excluding receiver and battery)
• Approx. 14 oz (excluding receiver and battery)

In the box

• 1x Digital wireless adaptor
• 1x Warranty Booklet
• 1x Operating Instructions
• 1x DC power cable (for 4-pin connector)
• 1x CD-ROM
• 1x Soft Case
