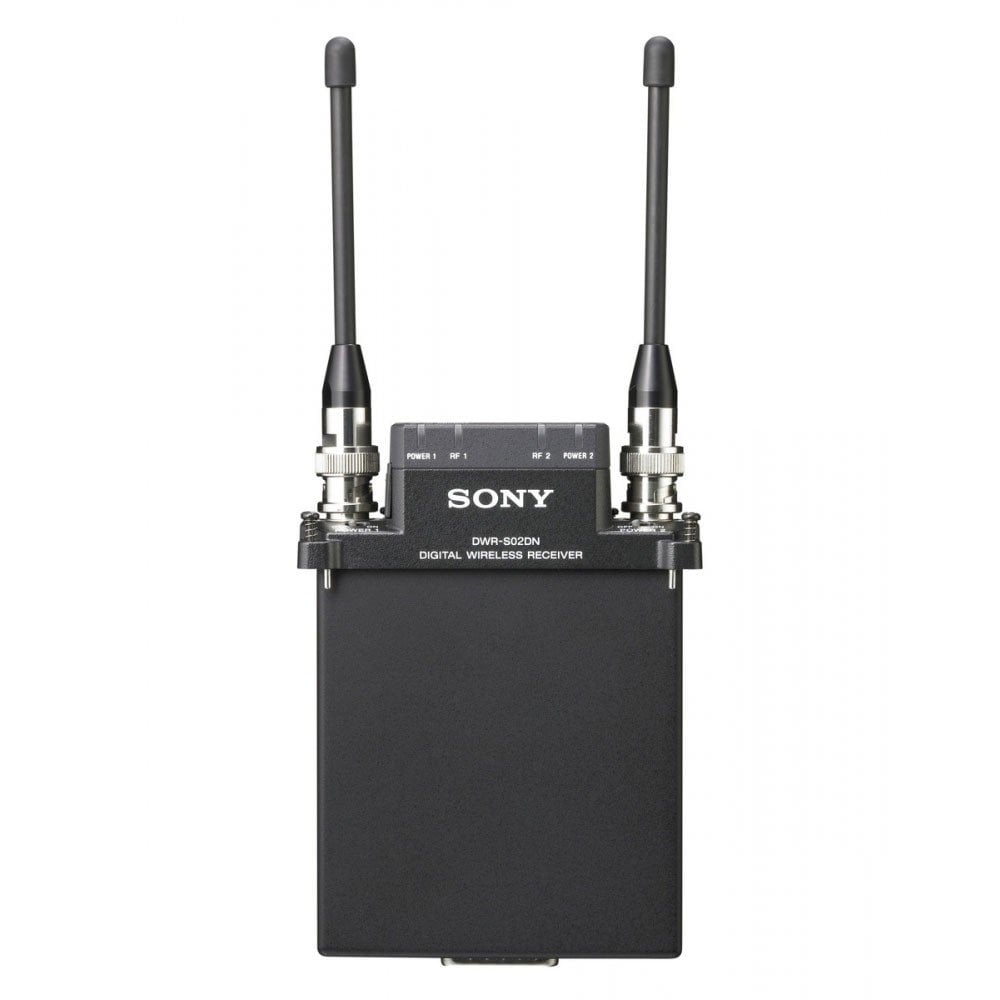

Sony DWR-S02DN/42 Dual Channel Digital Wireless Receiver

Sony DWR-S02DN/42 (DWR-S02DN-42, DWR_S02DN_42, DWRS02DN42, DWR S02DN 42, dwr-s02dn/42) Dual Channel Digital Wireless Receiver

The DWR-S02DN is a two-channel portable slot-in receiver for Sony camcorders that, as part of the DWX N series digital wireless microphone system, works seamlessly with Sony digital wireless transmitters, such as the DWT-B01N, DWT-P01N and digital wireless microphones, such as the DWM-02N. The receiver operates with a wide bandwidth up to 72 MHz bandwidth (depending on region), giving users a higher probability of finding unoccupied frequencies in congested metropolitan areas.

Ideal for a range of applications including live concert, theatre, opera, broadcast studio, news gathering, field production, and sound recording, the DWR-S02DN offers a truly digital wireless microphone platform. It combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies, and an enviable reputation for stability.

Three codec modes designed for wide variety of applications

MODE1 for compatibility with DWX series applications, MODE2 with higher quality sound and low latency ideal for theatre, tour and broadcast applications, and MODE3 with more reliable RF transmission ideal for speech applications.

Low audio latency and high quality sound

MODE2 provides higher quality sound with a 96kHz sampling rate and very low audio latency of 1.5 msec.

More reliable RF transmissions expands the operation range

MODE3 operation optimised for reliable transmission by preventing drop out by interference with additional error correction.

Compatibility with DWX series

MODE1 operation provides the same high quality, reliability and audio latency as the previous DWX series version.

Wide frequency coverage with choice of channels available

The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models—please refer to product specifications for more information.

14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)

30A UC: 566.125 MHz to 607.875 MHz (UHF-TV channels 30 to 36), 25 kHz steps

42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51), 25 kHz steps

Tuner Section

Receiving Channels: Americas, Australia (depending on model)

• 14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
• 30A UC: 566.125MHz to 607.875MHz (UHF-TV channels 30-36) 25kHz steps
• 42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51), 25 kHz steps (not available in US or Canada)

• CE42: UHF-TV channels 42-50 638 MHz to 710 MHz

• Type of Receiver: Slot-in (2 channels)
• Transmission Method: WiDIF-HP (×2)
• Type of reception: True diversity
• Circuit system: Double superheterodyne
• Local oscillators : Crystal-controlled PLL synthesizer
• RF input terminal: BNC-R, 50 ohms
• Antenna Type : Detachable
• Sensitivity: 20 dBμ or less (at ambient temperature 25 °C (77 °F), bit error rate = 1 × 10 -5, no decline in S/N ratio)

Audio section

• Audio output connector: D-sub 15 pin (male) (×1)
• Reference output level: Analog: –40 dBu, Digital: –36 dBFS/–20 dBFS (switchable)
• Dynamic range: 106 dB or more (A-weighted), T.H.D 0.03% or less (0 dBu = 0.775 Vrms)
• T.H.D: MODE1, MODE2: 0.03% or less. MODE3: 0.3% or less.

Audio delay:

• Analog output in combination with the DWA-01D/F01D; MODE1: 2.1 msec, MODE2: 1.7 msec,
• MODE3: 3.0 msec,
• ABS/EBU output in combination with the DWA-01D/F01D; MODE1: 1.9 msec,
• MODE2: 1.5 msec, MODE3: 2.8 msec,
• Through a digital connection with a camcorder; MODE1:1.9 msec, MODE2: 1.3 msec, MODE3: 2.7 msec

General

• Operating voltage: 7 V DC
• Consumption current: 500 mA or less (at 7 V DC)
• Operating temperature: 0 °C to 50 °C, (32 °F to 122 °F)
• Storage temperature: –20 °C to +60 °C, (–4 °F to +140 °F)
• Wireless remote control: 2.4-GHz IEEE802.15.4 compliant
• Dimensions (unit: mm (inches))*2: 88 x 119 x 31, (3 1/2 x 4 3/4 x 1 1/4)
• Mass: Approx. 280 g (10 oz) (including the supplied antennas)

In the box

• 1 x DWR-S02DN/42 Digital Wireless Receiver
• 2 x Antenna
• 1 x CD-ROM
• 1 x Frequency band label
• 3 x Before Using this Unit
