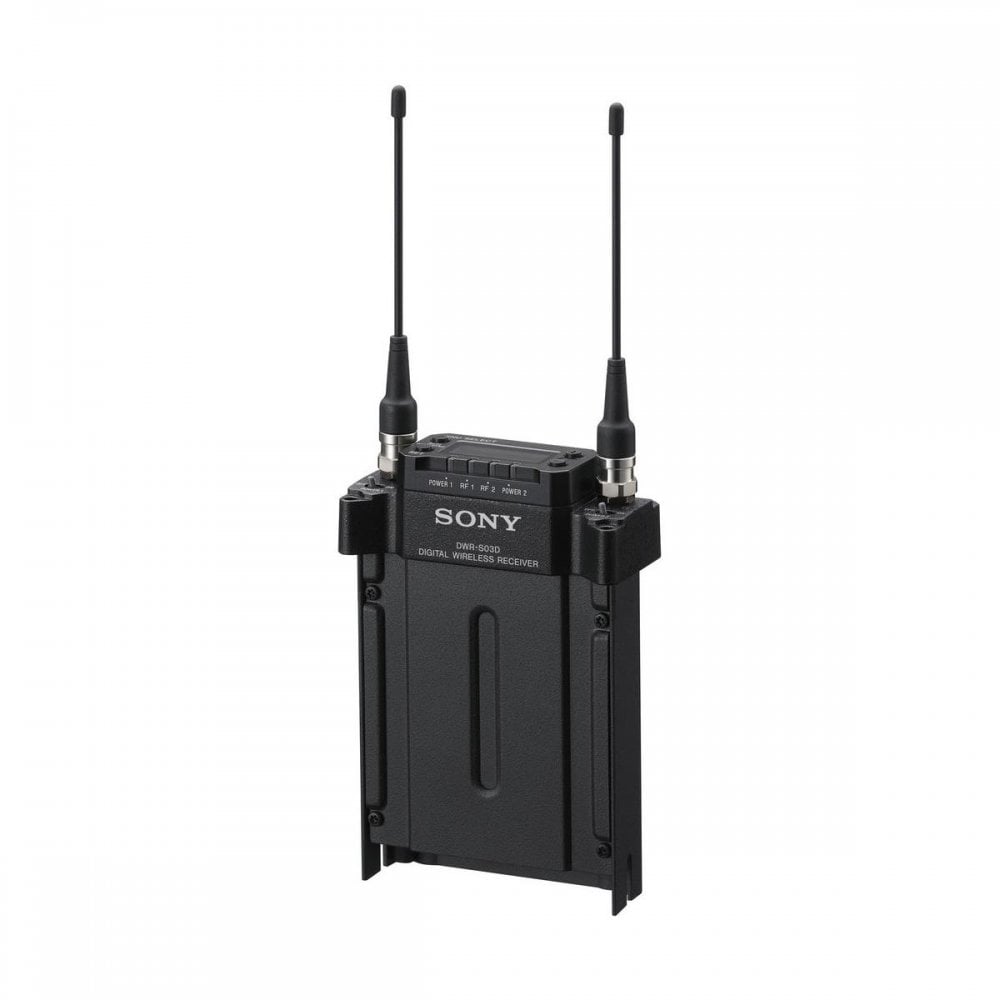

Sony DWR-S03D-L DWX Gen3 2-Channel Digital Wireless Slot-In Receiver

Sony DWR-S03D-L (DWR-S03D/L, DWR_S03D_L, DWRS03DL, DWR/S03D/L, DWR-S03D_L, dwr-s03D/l) DWX Gen3 2-Channel Digital Wireless Slot-In Receiver

This high performance 2-channel portable slot-in receiver is an ideal choice for ENG/EFP and location sound applications. The DWR-S03D is part of Sony's third generation DWX series digital wireless microphone system that combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies and an enviable reputation for stability.

The receiver operates with a wide bandwidth up to 148 MHz (depending on region), increasing the probability of finding unoccupied frequencies in congested metropolitan areas.

Light and compact, the DWR-S03D can be mounted in the slot of Sony or other professional camcorders using the optional DWA-SLAS1 or DWA-SLAU1 interface adaptor.

Automatic channel scan and sync permits quick, easy frequency setting, and the high density 375 kHz interval channel plan enables simultaneous multi-channel operation.

• Type of Receiver: Slot-in (2 channels)
• Transmission Method: WiDIF-HP (x2)
• Circuit system: Double superheterodyne
• Oscillator type: Crystal-controlled PLL synthesizer
• Reception Type: True diversity method
• RF input terminal: SMA-R, 50 ohms
• Antenna Type: Detachable
• Sensitivity: 20 dBμ or less (at ambient temperature 25 °C (77 °F), bit error rate = 1 x 10 -5, no decline in S/N ratio)
• Carrier Frequencies: L/CE7 : 470.025 MHz to 614.000 MHz (UHF-TV channels 21 to 38)

Reference output level:

• Analog: –40 dBu
• Digital: –36 dBFS/–20 dBFS (switchable)

• Dynamic range: 106 dB or more (A-weighted)
• Distortion (T.H.D): MODE1, MODE2, MODE4: 0.03% or less MODE3: 0.3% or less

Audio delay:

• Analog output in combination with the DWA-01D/F01D; MODE1: 2.1 msec, MODE2: 1.7 msec, MODE3: 3.0 msec, MODE4: 1.7 msec
• ABS/EBU output in combination with the DWA-01D/F01D; MODE1: 1.9 msec, MODE2: 1.5 msec, MODE3: 2.8 msec, MODE4: 1.5 msec
• Through a digital connection with a camcorder; MODE1: 1.9 msec, MODE2: 1.3 msec, MODE3: 2.7 msec, MODE4: 1.4 msec

Audio output connector:

• D-sub 15 pin (male) (x1) with optional adaptor DWA-SLAS1
• D-sub 25 pin (male) (x1) with optional adaptor DWA-SLAU1

• Display: OLED
• Operating voltage: DC 6 V to 18 V

Consumption current:

• 3.5 W or less with optional adaptor DWA-SLAS1
• 4.0 W or less with optional adaptor DWA-SLAU1

• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Wireless remote control: 2.4- GHz IEEE802.15.4 compliant

Dimensions:

• Approx. 88 x 119 x 32 mm (3 1/2 x 4 3/4 x 1 5/16 in) (W / H / D) (excluding antennas) with optional adaptor DWA-SLAS1
• Approx. 74 x 119 x 31 mm (3 x 4 3/4 x 1 1/4 in) (W / H / D) (excluding antennas) with optional adaptor DWA-SLAU1

Mass:

• Approx. 193g with optional adaptor DWA-SLAS1 (including antennas)
• Approx. 196g with optional adaptor DWA-SLAU1 (including antennas)

In the Box

• 1x Sony DWR-S03D/L (470 to 614 MHz)
• 2x antenna
• 1x CD-ROM
• 1x frequency band label
• 1x instruction manual
