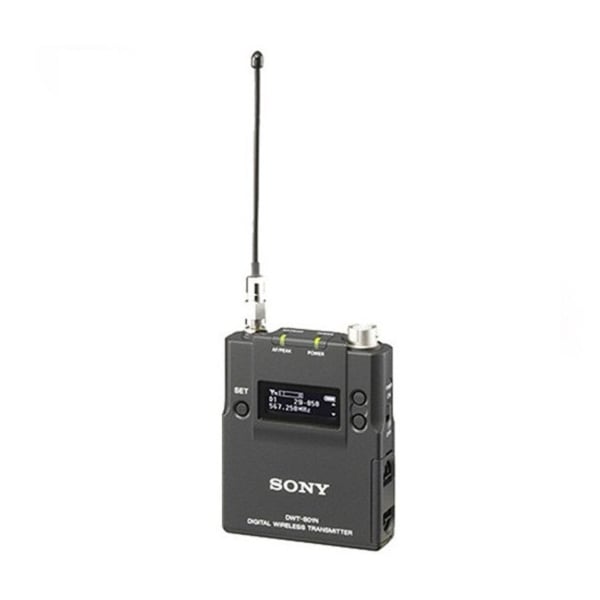

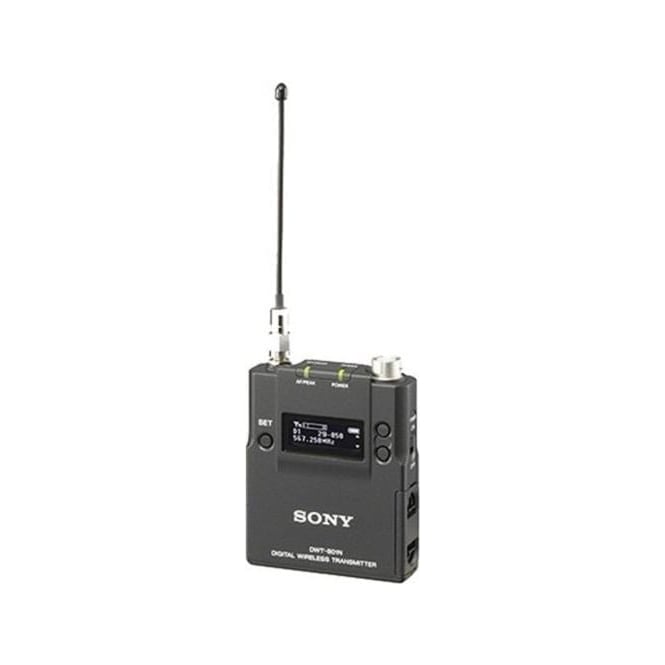

Sony DWT-B01N/42 Digital Wireless Body-Pack Transmitter

Sony DWT-B01N/42 (DWT-B01N-42, DWT/B01N/42, DWT_B01N_42, DWTB01N42, dwt-b01n/42) Digital Wireless Body-Pack Transmitter

High quality wide-band transmitter with three codec modes providing short audio latency and more reliable transmission

The DWT-B01N body-pack transmitter forms part of the DWX series system, offering high-quality full-digital operation, shorter audio latency and more reliable RF transmission mode – ideal for a variety of high-quality applications, including broadcast studio, theatre and live sound.

The DWX series system delivers superb-quality wireless transmission of 24-bit digital audio. Thanks to its improved codec and new hardware, it can provide higher sound quality with lower audio latency.

The DWX series works with Sony control software Wireless Studio for PC and Wireless Studio Mobile for smartphones* to give users flexible control of the system. Remote control of up to 82 transmitters can be achieved using the Cross Remote™ function combined with the RMU-01 remote control unit.

Three codec modes designed for wide variety of applications

MODE1 for compatibility with DWX series applications, MODE2 with higher quality sound and low latency ideal for theatre, tour and broadcast applications, and MODE3 with more reliable RF transmission ideal for speech applications.

Low audio latency and high quality sound

MODE2 provides higher quality sound with a 96kHz sampling rate and very low audio latency of 1.5 msec**.

Compatibility with DWX series

MODE1 operation provides the same high quality, reliability and audio latency as the previous DWX series version.

Smartphone control*

Wireless Studio Mobile software gives users remote control of the DWX series system via a smartphone.

Notes

* Wireless Studio Mobile supported OS: iOS Ver.8.0 or later and Android Ver.4.1 or later. Operation is not guaranteed on all smartphones.

**Analogue out, 2.5 msec for digital out

• Wireless Interface: WiDIF-HP
• Oscillator Type: Crystal-controlled PLL Synthesizer
• Antenna Type: λ/4 flexible wire
• Type of Emission: G1E or G1D

Carrier Frequencies - CE7:

• CE42: 638.025 MHz to 710.000 MHz (TV-42 to TV-50 channels), 25 kHz steps

• RF Power: 1 mW/10 mW/50 mW (e.r.p) selectable
• Input Connector: Sony 4-pin (SMC9-4S) (female)
• Reference Input LevelMIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz
• Maximum Input Level: MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu
• Audio Attenuator Adjustment Range: 0 to 48 dB (3 dB steps, MIC input mode only)
• Frequency Response: Transmission: 20Hz to 22kHz (typical)
• Dynamic Range: 106 dB typical (A-weighted, T.H.D=1%)

Distortion (T.H.D):

• MODE1, MODE2: 0.03% or less
• MODE3: 0.3% or less

Audio Delay:

• MODE1: 1.5 msec (total: 3.4msec)
• MODE2: 1.0 msec (total: 1.5msec)
• MODE3: 2.1 msec (total 4.0msec)

• Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
• Display: OLED
• Power Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries)

Battery Operating Time:

• Approx. 5 hours with Sony's AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output

(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Storage/Transport Temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: 63 x 17 x 73 mm (excluding the anntenas) (W x H x D)
• Mass: Approx. 125 g (including batteries)

In the box

• 1x DWT-B01N/42 (TV channel 42-50)
• 1x Spare battery case
• 1x Soft case
• 1x Microphone cable (4-pin to XLRtype 3-pin)
• 1x USB adapter cable
• 1x Carrying case
• 1x Scribble sheet
• 1x CD-ROM
