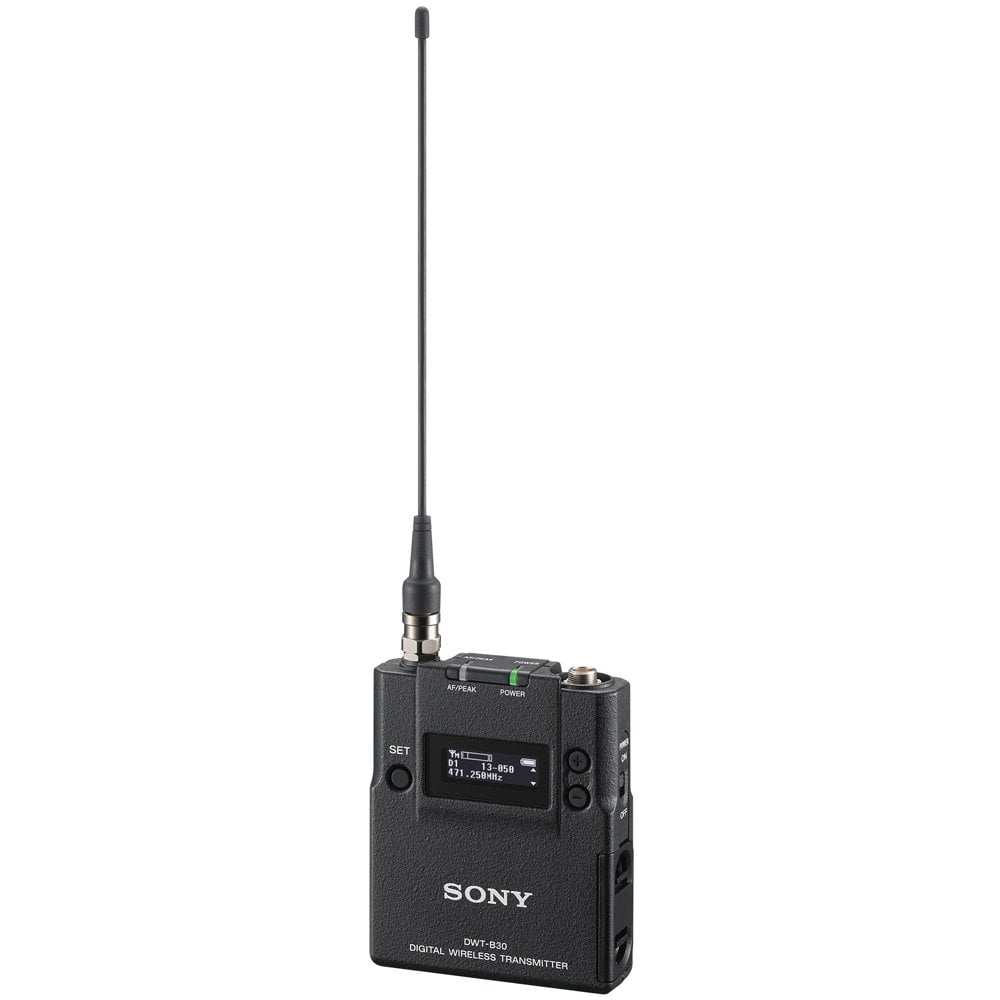

Sony DWT-B30/H DWX Gen3 Digital Wireless Bodypack Transmitter

Sony DWT-B30/H (DWT/B30/H, DWT-B30-H, DWT_B30_H, DWTB30H, dwt-b30/h) DWX Gen3 Digital Wireless Bodypack Transmitter

This highDWX Series Gen3 bodypack, 566.025 MHz to 714.000 MHz

Performance wireless bodypack transmitter is an ideal choice for live sound applications including theatre and concerts, as well as studio-based TV production and ENG/EFP.

The DWT-B30 is part of Sony's third generation DWX series digital wireless microphone system that combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies and an enviable reputation for stability.

Sophisticated audio processing, encryption and RF transmission technologies assure secure, stable digital transmission and reception of very high-quality audio with low latency.

The transmitter operates with a wide bandwidth of up to 148 MHz (depending on region), and the high density 375 kHz interval channel plan enables simultaneous multi-channel operation, increasing the probability of finding unoccupied frequencies in congested metropolitan areas.

The DWT-B30 is compatible with Sony Wireless Studio control software for PC (Ver 5.22 or later) , allowing flexible remote operation. Control of up to 82 transmitters is possible using the Cross Remote™ function combined with the RMU-01 remote control unit (available separately).

• Oscillator Type: Crystal-controlled PLL synthesizer
• Antenna Type: 1/4 λ wavelength wire antenna
• Carrier Frequencies: H/CE7 : 566.025 MHz to 714.000 MHz (UHF-TV channels 33 to 51)
• RF Output Power: UC7, CE7, L/J, MH/J, G/J: 2 mW/10 mW/25 mW (e.r.p) selectable

Input Connector:

• UC7, J: Sony 4-pin (SMC9-4S) (female)
• CE7: Small 3-pin connector with lock

• Reference Audio Input Level: MIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz
• Maximum Audio Input Level: MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu
• Audio Attenuator Adjustment Range: 0 to 48 dB (3 dB steps, MIC input mode only)
• Frequency Response: 20Hz to 22kHz (typical)
• Dynamic Range: 106 dB typical (A-weighted, T.H.D=1%)
• Distortion (T.H.D): MODE1, MODE2, MODE4: 0.03% or less MODE3: 0.3% or less
• Audio Delay: MODE1: 0.8 msec/ MODE2: 0.7 msec/ MODE3: 1.8 msec/ MODE4: 0.7 msec
• Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
• Display: OLED

Power Requirements:

• DC 3.0 V (two LR6/AA size alkaline batteries)
• DC 5.0 V (supplied from USB connector)

Battery Life:

• Approx. 6.5 hours with Sony's AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output (with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage Temperature: -20°C to +60°C / -4°F to +140°F
• Dimensions: Approx. 63 x 17 x 73 mm (2 1/2 x 11/16 x 2 7/8 in) (W x H x D) (excluding the anntena)
• Mass: Approx. 125 g (including batteries)

In the Box

• 1x DWT-B30/H (566.025 MHz to 714.000 MHz)
• 1x Antenna
