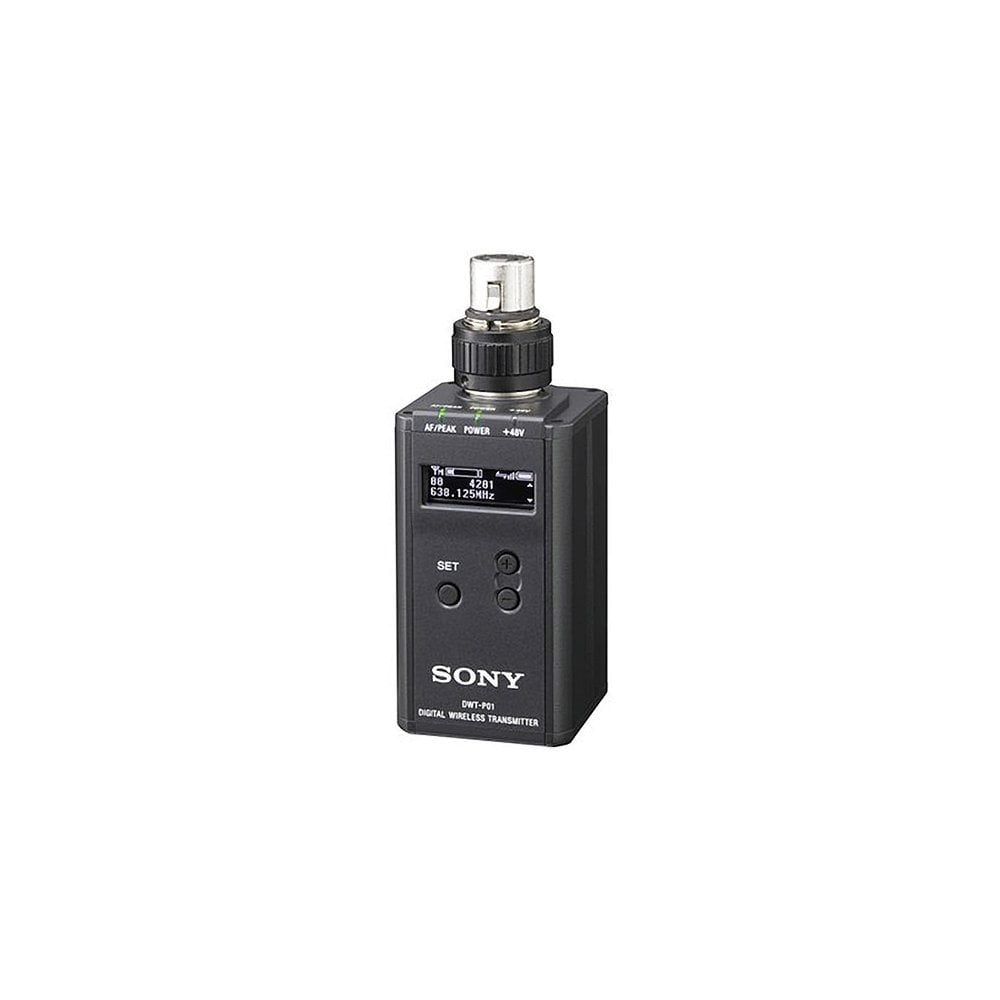

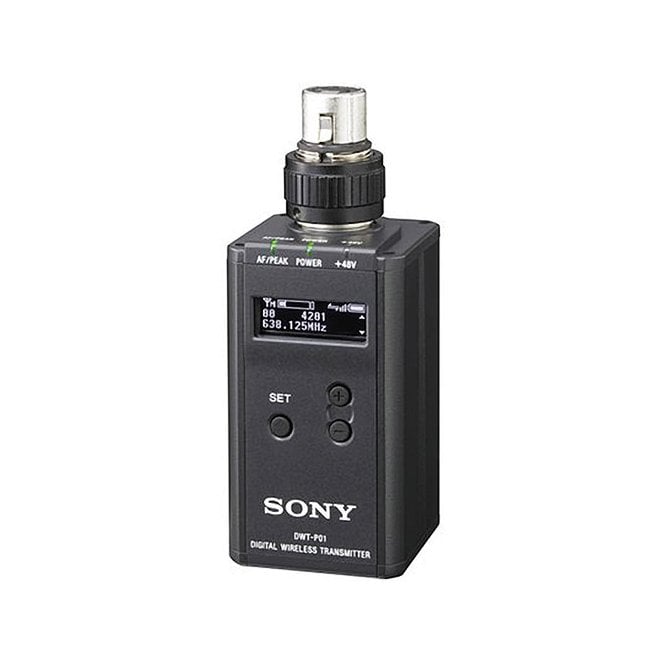

Sony DWT-P01N/33 Digital Wireless Microphone Plug-on Transmitter

Sony DWT-P01N/33 (DWT-P01N-33, DWT/P01N/33, DWT_P01N_33, DWTP01N33, dwt-p01n/33) Digital Wireless Microphone Plug-on Transmitter

High quality wide-band transmitter with three codec modes providing short audio latency and more reliable transmission

The DWT-P01N XLR plug-on transmitter forms part of the DWX series digital wireless microphone system that offers high-quality full-digital operation shorter audio latency and more reliable RF transmission mode - a perfect match for high-quality ENG/EFP applications.

The DWX series system delivers superb-quality wireless transmission of 24-bit digital audio. Thanks to its improved codec and new hardware, it can provide higher sound quality with lower audio latency.

NOTE: This model is available in multiple versions to support the widest possible range of operating frequencies. Please refer to product specifications for more information.

Three codec modes designed for wide variety of applications

MODE1 for compatibility with DWX series applications, MODE2 with higher quality sound and low latency ideal for theatre, tour and broadcast applications, and MODE3 with more reliable RF transmission ideal for speech applications.

Low audio latency and high quality sound

MODE2 provides higher quality sound with a 96kHz sampling rate and very low audio latency of 1.5 msec*.

More reliable RF transmissions expands the operation range

MODE3 operation optimised for reliable transmission by preventing drop out by interference with additional error correction.

Compatibility with DWX series

MODE1 operation provides the same high quality, reliability and audio latency as the previous DWX series version.

NOTE:

*Analogue out, 2.5 msec for digital out

Transmitting section

• Oscillator: Crystal controlled PLL synthesizer

Carrier Frequencies: Europe, Middle East, Africa, Australia, New Zealand (depending on model)

• CE33: UHF-TV channels 33-40 566 MHz to 630 MHz

• Channel step: 25 kHz
• RF power output: 1 mW/10 mW/50 mW (e.r.p.) selectable
• Occupied RF bandwidth: 192 kHz or less

Audio delay:

• Approx. MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec)/MODE3: 2.1 msec (total 4.0msec)

Audio section
Maximum input leve:

• lMIC -22 dBu (with 0 dB attenuator)
• LINE +24 dBu

• Audio attenuator adjustment range (pad): 0 to 48 dB (3-dB steps, MIC input mode only)
• Input connector: XLR-3-11C (female) (x1)
• Input impedance: 4.7 k/ohms or more

General

• Operating voltage: DC 3.0 V, (two LR6 AA-size alkaline batteries)

Battery life:

• Approx. 5 hours (at 25 °C (77 °F), 10-mW output using Sony LR6 (AA)-size alkaline batteries with CODEC MODE set to MODE1, the wireless remote control function off, DIMMER MODE set to AUTO OFF, and +48 V set to OFF)
• Dimensions (W x H x D): Approx. 44 x 78 x 44 mm (1 3/4 x 3 1/8 x 3/4 inches) excluding projection
• Mass: Approx. 245 g (9 oz) including batteries

In the box

• 1x DWT-P01N/33 (TV channel 33-40)
• 1x Soft case
• 1x Spare battery case
• 1x USB adapter cable
• 1x CD-ROM
• 1x Before Using this Unit
