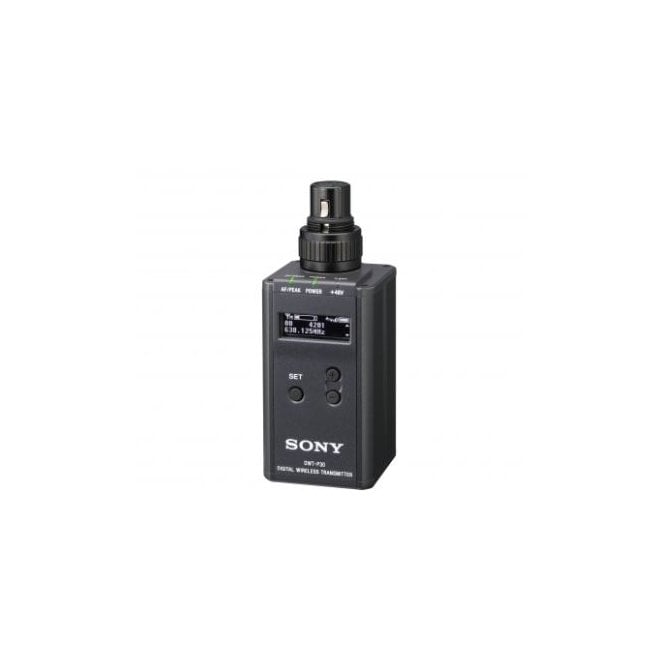

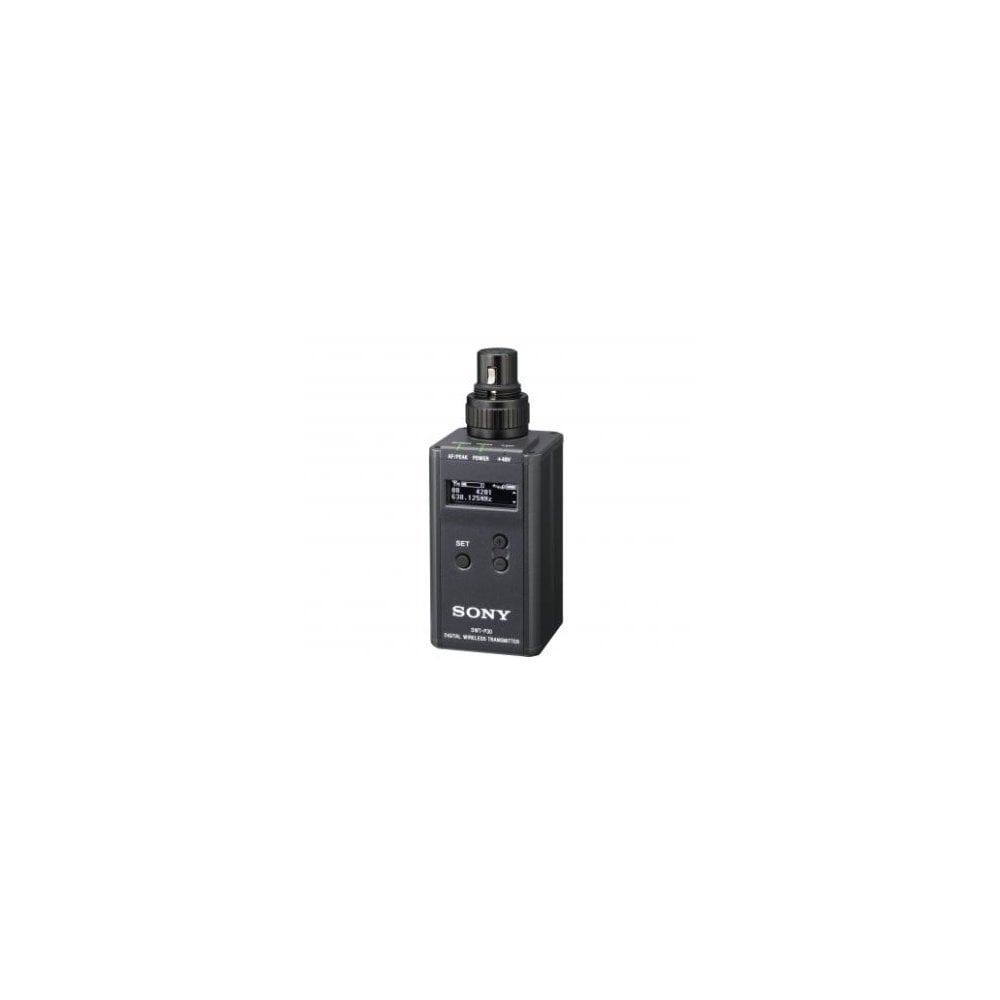

Sony DWT-P30/H plug-on transmitter

Sony DWT-P30/H plug-on transmitter, TV channel 33-51, 566.025 MHz to 714.000 MHz

This high performance wireless plug-on transmitter is an ideal choice for live sound applications including theatre and concerts, as well as studio based TV production and ENG/EFP.

The DWT-P30 is part of Sony's third generation DWX series digital wireless microphone system that combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies and an enviable reputation for stability.

Sophisticated audio processing, encryption and RF transmission technologies assure secure, stable digital transmission and reception of very high quality audio with low latency.

The transmitter operates with a wide bandwidth up to 148 MHz (depending on region), and the high density 375 kHz interval channel plan enables simultaneous multi-channel operation, increasing the probability of finding unoccupied frequencies in congested metropolitan areas.

The DWT-P30 is compatible with Sony Wireless Studio control software for PC (Ver 5.22 or later) , allowing flexible remote operation. Control of up to 82 transmitters is possible using the Cross Remote™ function combined with the RMU-01 remote control unit (available separately).

Oscillator Type

Crystal-controlled PLL synthesizer

Antenna Type

1/4 λ wavelength wire antenna

Carrier Frequencies

UC7 : 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz (UHF-TV channels 14 to 36, 38)

L/CE7 : 470.025 MHz to 614.000 MHz (UHF-TV channels 21 to 38)

H/CE7 : 566.025 MHz to 714.000 MHz (UHF-TV channels 33 to 51)

RF Output Power

UC7, CE7: 2 mW/10 mW/25 mW (e.r.p) selectable

Input Connector

XLR-3-11C (female)

Reference Audio Input Level

MIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz

Maximum Audio Input Level

MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu

Audio Attenuator Adjustment Range

0 to 48 dB (3 dB steps, MIC input mode only)

Frequency Response

20Hz to 22kHz (typical)

Dynamic Range

106 dB typical (A-weighted, T.H.D=1%)

Distortion (T.H.D)

MODE1, MODE2, MODE4: 0.03% or less MODE3: 0.3% or less

Audio Delay

MODE1: 0.8 msec/ MODE2: 0.7 msec/ MODE3: 1.8 msec/ MODE4: 0.7 msec

Wireless Remote Control

Cross Remote (2.4-GHz IEEE802.15.4 compliant)

Display

OLED

Power Requirements

DC 3.0 V (two LR6/AA size alkaline batteries)

DC 5.0 V (supplied from USB connector)

Battery Life

Approx. 6 hours with AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output (with the wireless remote control function off and DIMMER MODE set to AUTO OFF)

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage Temperature

-20°C to +60°C / -4°F to +140°F

Dimensions

Approx. 44 x 113.5 x 44 mm (W x H x D)

Mass

Approx. 245 g (including batteries)

In the box;

1 x Sony DWT-P30/H plug-on transmitter
