Sony Network Accessory Kit

Sony CBK-NA1 (CBKNA1, CBK/NA1, cbk-na1) Network Accessory Kit

Optimises LAN connection for PXW-X180, PXW-X200 and PXW-X500 camcorders working with CBK-WA100 and CBK-WA101 wireless adapters

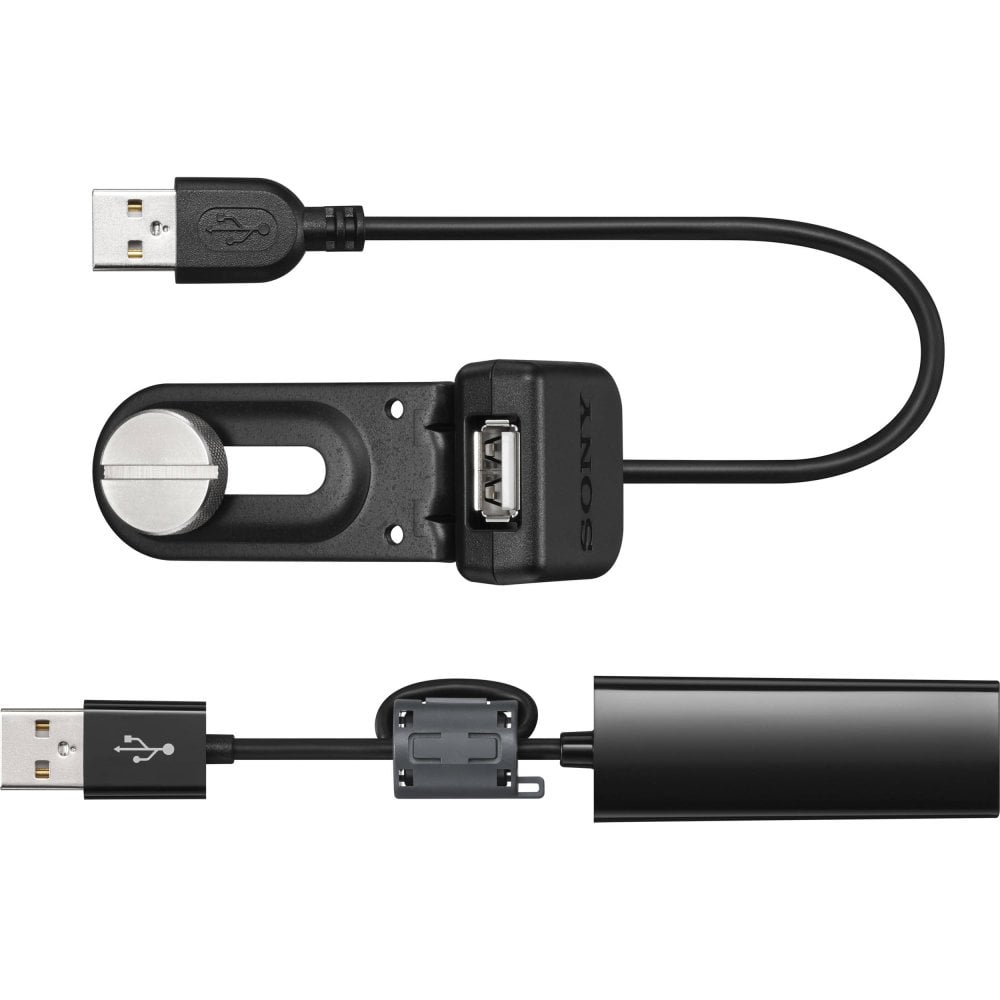

The CBK-NA1 network adapter kit consists of a CBK-NA1E modem attachment for 3G/4G/LTE and Wi-Fi communication, and a CBK-NA1R USB/RJ-45 adapter. The CBK-NA1E allows you to attach the modem to the camcorder’s handle to avoid interfering with the camcorder operation and to improve the signal transmission. The CBK-NA1R allows you to use the camcorder’s streaming features with a wired connection. The unit has a cable clamp mechanism to avoid the USB connector being damaged by a cable stress.

Network module extension adapter

• The CBK-NA1E allows you to attach a 3G/4G/LTE modem to a Sony camcorder and is optimised for the PXW-X180, PXW-X200 and PXW-X500 camcorders. The module is fixed on a 1/4-inch accessory shoe.

USB/RJ-45 adapter

• The CBK-NA1R converts the USB terminal* to the RJ-45 terminal of the camcorder or wireless adapter CBK-WA100 and CBK-WA101. It allows you to connect the camcorder to a network using a LAN cable for streaming with a wired connection. A cable clamp secures the USB connector.
• The terminal name differs depending on the attaching device (USB wireless LAN module terminal or connecting terminal for external devices).

• Network Module Extension Adapter: CBK-NA1E
• USB: USB 2.0 Type A
• Cable length: Approx. 200 mm (7 7/8 inches)
• Mass: Approx. 65 g (2.3 oz)
• Operating temperature: 0°C~+40°C
• Operating humidity: 20%~90%
• Storage temperature: -20°C~+60°C
• USB to RJ45 Adapter: CBK-NA1R
• USB: USB 2.0 Type A
• Network terminal: RJ-45 10 /100BASE-T
• Feeding system: Bus power
• Cable length:Approx. 100 mm (4 inches)
• Mass: Approx. 20 g (0.7 oz)
• Power consumption: 1.5 W
• Operating temperature: 0°C~+40°C
• Operating humidity: 20%~90%
• Storage temperature: -20°C~+60°C

In the box

• 1 x Network Module Extension Adapter: CBK-NA1E
• 1 x USB to RJ45 Adapter: CBK-NA1R
