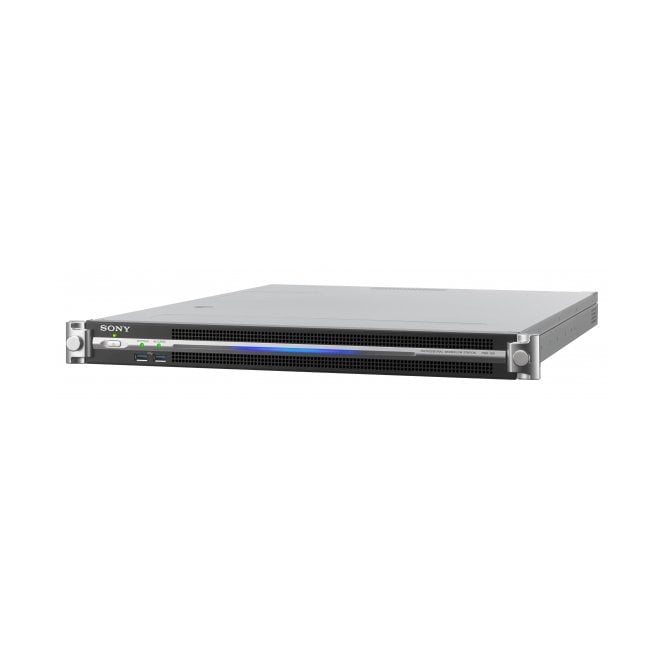

Sony Network RX Station for XDCAM Camcorders Live Streaming over 4G/LTE and Wi-Fi

Sony PWS-110RX1 (PWS/110RX1, PWS_110RX1, PWS 110RX1) Network RX Station for XDCAM Camcorders Live Streaming over 4G/LTE and Wi-Fi

The PWS-110RX1 network RX station is an advanced system for cost efficient live streaming video and audio direct from XDCAM camcorders using 4G/LTE and Wi-Fi networks.

The PWS-110RX1 uses Sony’s unique QoS (quality of service) technology or MPEG2-TS to maintain video and audio integrity during transmission. Each PWS-110RX1 unit can simultaneously control two SDI outputs: these can be used to live stream from two locations at the same time. Multiple systems can be added for greater input and output loads.

The unit includes reference and timecode input connectors, which enable synchronised operation with broadcast systems. In addition, it can output in a variety of broadcast formats, including 1080i. The PWS-110RX1 system comes with preinstalled Connection Control Manager software that enables easy connection to camcorders and delivers efficient handling of the live streams.

Cost efficient live streaming of 1080i over 4G/LTE or Wi-Fi

• Live streaming video and audio direct from XDCAM camcorders using 4G/LTE and Wi-Fi networks in a variety of broadcast formats, including 1080i

High quality Sony's QoS ensures no lost video or audio

• Sony’s unique QoS (quality of service) technology or MPEG2-TS to maintain video and audio integrity during transmission.

SDI outputs

• Two SDI outputs on each unit allow you to manage two separate streams in and out. Multiple units can be used together to increase capacity.

• Power Requirements: 100V to 240V AC, 50/60 Hz
• Power Consumption: Normal: 235W, Standby: 3W or lower
• Operating Temperature: 41 ~ 95 ℉ (5 ~ 35 ℃ )
• Mass: 9.8kg (21 lb. 9 oz.)
• Dimensions (W x H x D): 440 x 43.6 x 507mm: (17 3/8 x 1 3/4 x 20 inch)

In the box

• Network RX Station for XDCAM Camcorders Live Streaming over 4G/LTE and Wi-Fi
