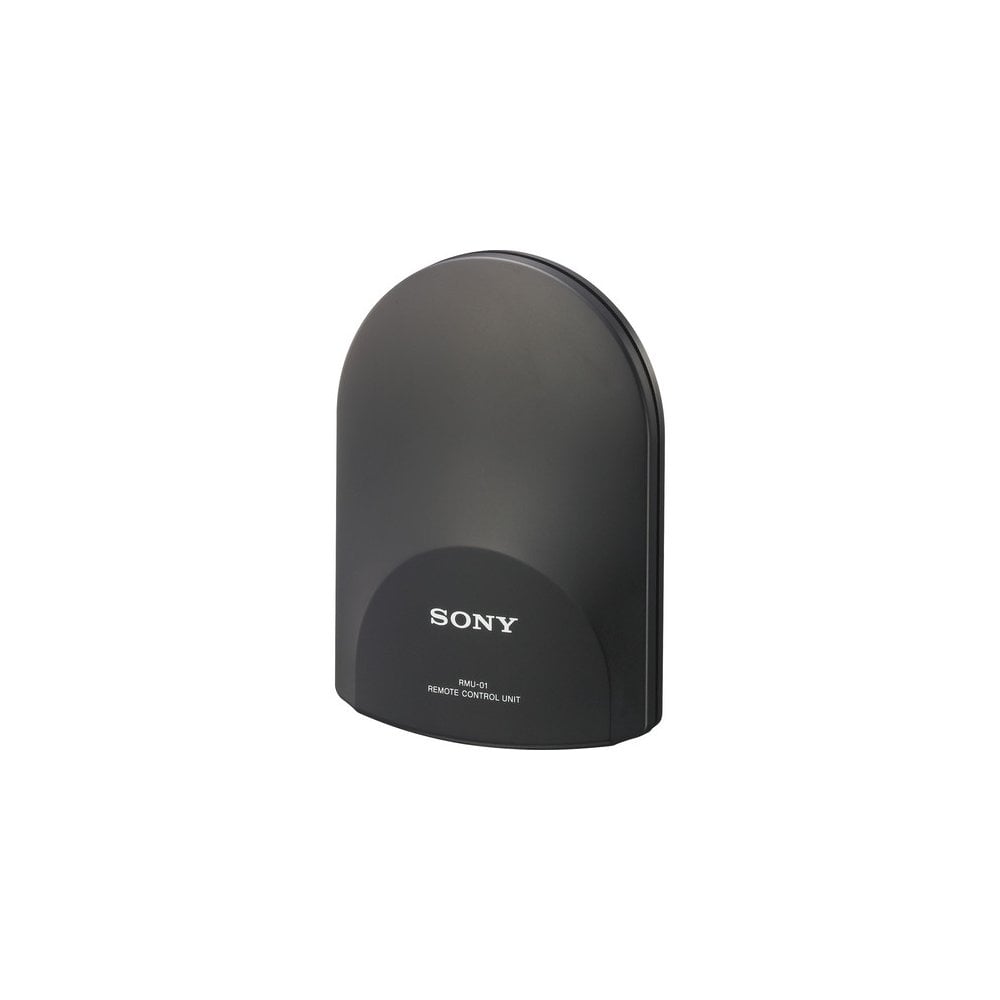

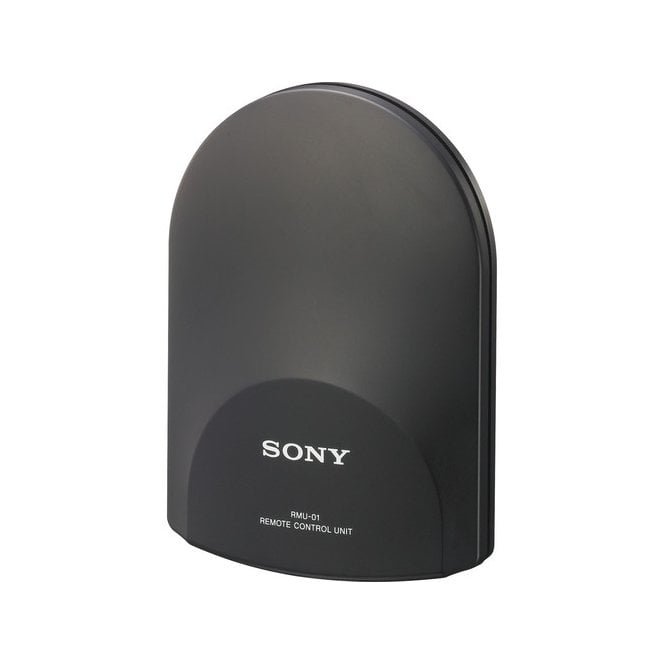

Sony RMU-01 Digital Wireless Remote Control Unit

Sony RMU-01 (RMU/01, RMU_01, RMU 01, RMU01, rmu-01) Digital Wireless Remote Control Unit

The RMU-01 controls up to 82 digital wireless transmitters via a separate RF carrier in the 2.4GHz spectrum. This unit can be connected using Ethernet cabling (RJ-45) with an optional third-party PoE switch (Power-over-Ethernet) to create a remote control network for use with one or more DWR-R01D receivers. The RMU-01 covers a 10 meter radius (32 feet).

Multiple units can be configured to expand the 2.4GHz spectrum coverage area (up to 9 x RMU-01’s max.). The RMU-01 is supplied with a 12V AC adapter for powering the unit when PoE (Power over Ethernet) powering isn’t available. Mounting options include mounting the RMU-01 onto a mic stand using supplied screw adapters or using a supplied bracket mount for ceiling or wall mounting.

• Radio System: Conforms to IEEE802.15.4
• Frequency range of transmission / reception: 2.405 GHz to 2.480 GHz
• Antenna Gain: 2 dBi
• RF Power Output: 1 mW
• Remote Control Distance: 10 m (33 feet) at maximum (per unit)
• LAN Transmission Speed: 10M / 100Mbps (automatic detection)
• Connectors
• LAN Connector: RJ45-type, 8-pin (accepts PoE power)
• AC Adapter Connector: EIAJ-type4
• PoE Power Reception: Conforms to IEEE802.3af (supports mode A and B)
• Supply Voltage
• When the PoE device is used: 48 V DC
• When the AC adapter is used: 12 V DC
• Current Consumption
• When the PoE device is used: 50 mA or less
• When the AC adapter is used: 100 mA or less
• Operation Temperature
• When the PoE device is used: 32°F to 122°F (0°C to 50°C)
• When the AC adapter is used: 32°F to 113°F (0°C to 45°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Dimensions (W x H x D): 4 1/4 x 6 x 1 3/16 inch (107 x 151 x 30 mm)
• Weight: 10.5 oz (300 g)

In the box

• 1 x DWX Remote Control Unit
• 1 x AC Adapter
• 2 x Brackets
• 2 x Stand Adapters
• 1 x Screw Set
• 1 x Safety Wire
• 1 x Operating Instructions
• 1 x CD-ROM
• 1 x Warranty Booklet
