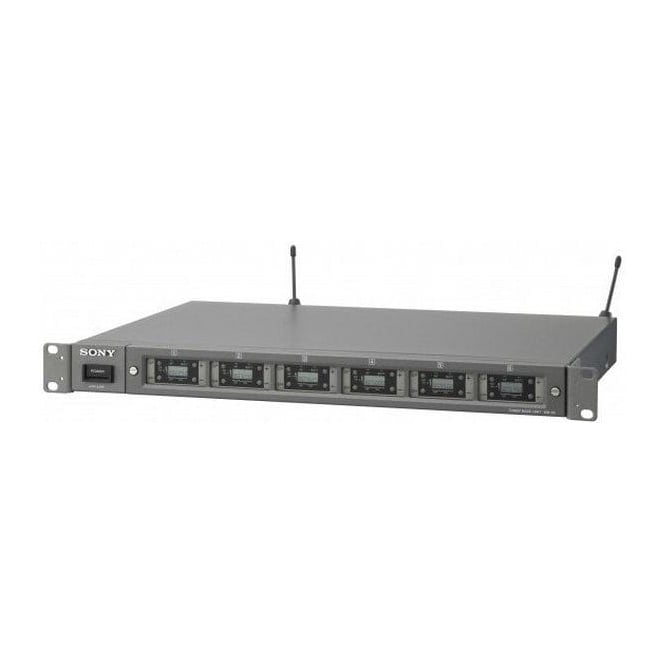

Sony Tuner Base Unit

code: MB-X6
  • £627.02
  • RRP: £866.95
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features

  • Accommodates up to six tuner modules included in the UWP-X1/X2 package, for up to six channels of simultaneous operation
  • Addition of the WD-850A allows multi-channel operation with even more channels
  • Easy mechanism for attaching and detaching tuner modules
  • RF input attenuator switch (10 dB/0 dB)
  • Balanced XLR output connector for each tuner and mix output
  • Selectable output level: -58 dBu (for MIC) or -20 dBu (for LINE) at ±5 kHz deviation at 1 kHz modulation
  • Auto channel search function automatically selects unoccupied channels
  • Supplied with passive antennas
  • Modular, 1U high, 19-inch rack unit

Sony MB-X6 (MBX6, MB X6, MB/X6) Tuner Base Unit

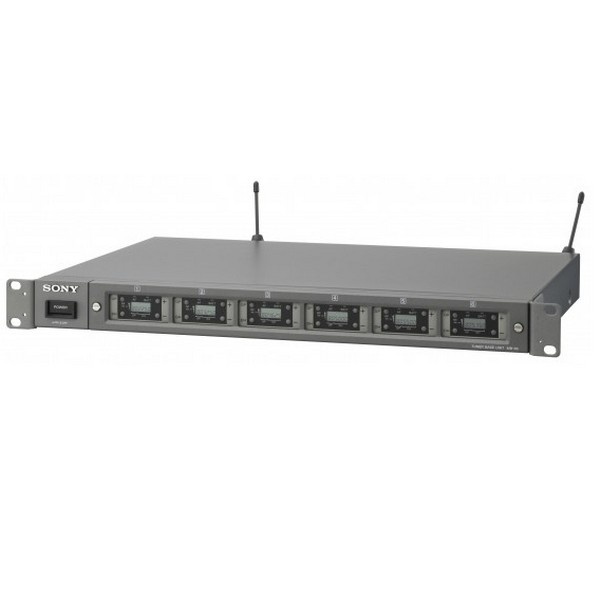

The Sony MB-X6 UHF Tuner Base Unit features a modular design that conveniently accommodates up to six WRU-806A and URX-M1 tuner modules. Up to six transmitters may be used simultaneously with six tuner modules installed. The rear panel provides six XLR (mic/line selectable) outputs and a stereo mix output. The MB-X6 features a single 19" rack space design and operates on channels 30 through 69.

Wide Frequency Range

  • This MB-X6 tuner base operates in UHF-TV channels 30 through 69. WL-800 series wireless systems are compatible.

Up to Six Tuner Modules

  • Up to six WRU-806 or URX-M1 may be installed for simultaneous operation of up to 6 wireless transmitters.

Internal Active Antenna Divider

  • Built-in antenna divider sends an amplified signal to all six channels with optional AN-820A antennas.

Antenna Gain Switch

  • An antenna gain switch adjusts antenna sensitivity to prevent overload of antenna section of receiver.

Output Level Switch

  • Selects mic or line operating level for all outputs.









  • Receiving channels: 6 channels when accommodating 6 tuner modules included in the UWP-X1/X2 package
  • Receiving frequencies: 792 MHz to 806 MHz (TV channels 66 to 67) when AU type tuner module installed 798 MHz to 822 MHz (TV channels 62 to 64) or 838 MHz to 862 MHz (TV channels 67 to 69) when CE type tuner module installed 758 MH to 782 MHz (TV channels 62 to 65) or 782 MHz to 806 MHz (TV channels 66 to 69) when U type tuner module installed
  • Audio output connector: XLR-3-32 type (x7), balanced
  • Audio output level: -20 dBu (LINE level) or -58 dBu (MIC level)
  • Antenna attenuator level: 0 dB or 10 dB
  • Antenna connectors: BNC-R type (x2), 50 U
  • Power requirements: U type: AC 120 V, 60 Hz CE type: AC 230 V, 50/60 Hz
  • Power consumption: 30 W when accommodating six tuner modules included in the UWP-X1/X2 package
  • Dimensions (W x H x D): 482 x 44 x 285 mm (19 x 1 3/4 x 11 1/4 inches)
  • Mass Approx: 5.5 kg (12 lb 2 oz)

In the box

  • 1x Pair Antennas
  • 1x AC power cord
  • 1x Operating instructions
