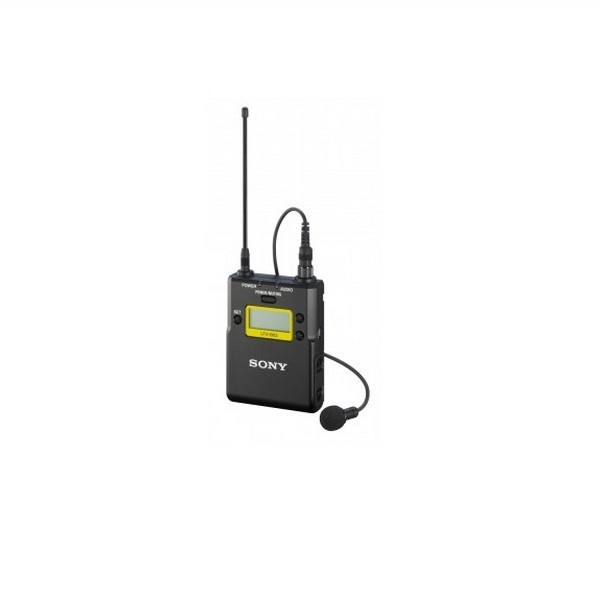

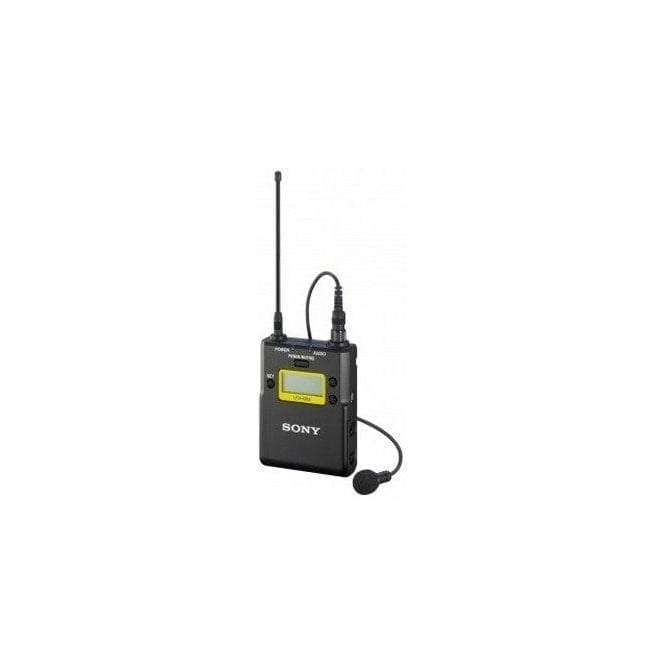

Sony UTX-B03/K51 UWP-D Belt Pack Transmitter

Sony UTX-B03/K51 (UTX-B03-K51, UTX/B03/K51, UTX_B03_K51, UTXB03K51, utx-b03/k51) UWP-D Belt Pack Transmitter

UWP-D digital audio processing for high quality sound

The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

Large display for ease of use

The UTX-B03 belt-pack transmitter features a bright 11.5mm x 27.8mm display, significantly larger than previous UWP models to make them easily readable in all situations.

Automatic channel setting

The receiver will automatically set the transmitter channel by IR Sync.

Wide frequency coverage

The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across - please refer to product specifications for more information.

True Diversity reception system

The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

Compatibility with Sony 800 and UWP Series analogue audio receivers

The UWP-D Series transmitters and receivers are also compatible with Sony’s WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

USB for external power supply or charging batteries

The UTX-B03 belt-pack transmitter has a micro USB terminal for connection to USB external portable power sources allowing the unit to be powered by the camcorder during use, resulting in hassle free power. You can also load NiMh batteries into the belt-pack to be charged through the micro USB.

Robust metal body

The UTX-B03 belt-pack transmitter is made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Line Input available

The UWP-D Series system has line input available for added flexibility.

Important Notes: This product is available in a variety of different frequency range models to suit the regulatory requirements of individual countries. Please contact your Sony reseller for more information on which product will best suit your specific needs.

• Oscillator Type: Crystal-controlled PLL Synthesizer
• Antenna Type: 1/4 wave length wire
• Type of Emission: F3E
• Carrier Frequencies: UTX-B03/51: 710.025 MHz to 782.000 MHz (only available in Europe)
• RF Power: 30mW / 5mW
• Capsule Type: Electret condenser
• Directivity: Omni-directional
• Input Connector: 3-pole locking mini jack

Reference Input Level:

• MIC: -60 dBV (at 0-dB attenuator level)
• LINE: +4 dBu

Audio Attenuator Adjustment Range

• 0 dB to 27 dB (in 3-dB steps): Mic input

Frequency Response:

• Transmission: 23Hz to 18kHz (typical)

• Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
• Audio Delay: Approx. 0.35 msec
• Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
• Display: LCD

Power Requirements:

• DC 3.0 V (with two AA-size alkaline (LR6) batteries)
• DC 5.0V (via USB micro-B)

Battery Operating Time

• Approx. eight hours with Sony's AA-size alkaline (LR6) batteries at 25°C(77°F) at 30-mW

Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Storage/Transport Temperature:

• -20°C to +55°C
• -4°F to +131°F

• Dimensions: 63 x 82 x 20 mm (excluding the anntenas) (W x H x D)
• Mass: Approx. 149 g (including batteries)

In the Box

• Sony TX lavalier 710-782MHz
• Lavalier Microphone (1)
• Lavalier Windshield (1)
• Lavalier Clip (1)
• Belt Clip (1)
