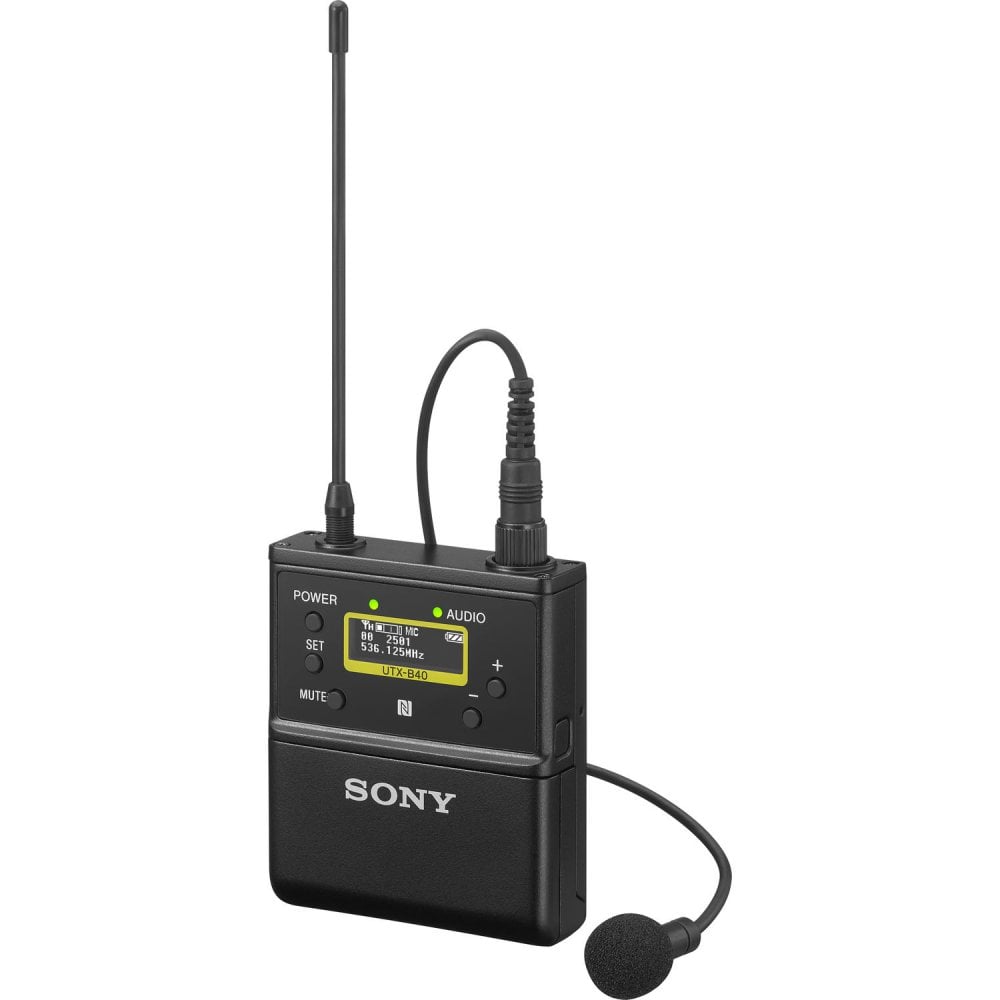

Sony UTX-B40-K21 Wireless Bodypack Transmitter

Sony UTX-B40-K21 (UTX-B40/K21, UTX-B40_K21, UTXB40-K21, utx-b40/k21) Wireless Bodypack Transmitter

The Sony UTX-B40 / K21 is a portable UHF synthesized transmitter with a frequency of 470 - 542 (channels 21 - 29). The UWP-D series offers excellent sound quality with digital processing, reliable RF transmission, true dual tuner diversity reception and user-friendly functions. The transmitter is compatible with Sony's WL-800, UWP and UWP-D series.

Digital audio processing for high quality sound

Sony's advanced digital audio processing technology ensures high-quality sound with improved transient response performance. A new digital audio interface [optional] enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface Shoe Adapter, skipping the A conversion / D and D / A to further ensure excellent sound quality.

Quick and easy frequency setting

The easy-to-use Sony exclusive NFC SYNC feature enables quick and intuitive secure channel setup between the transmitter and receiver.

Compact and lightweight design

The system's reduced size and weight allows for superior mobility in a wide variety of applications including newscasts, documentaries, weddings and remote production. The compact size and light weight of the receiver make it the ideal complement to use small size interchangeable-lens digital cameras and camcorders.

• Oscillator type: Crystal controlled PLL synthesizer
• Antenna type: Wire antenna with 1/4 lambda wavelength
• Carrier frequencies: 21CE: 470.025 MHz to 542.000 MHz (UHF TV channels 21 to 29)
• RF output power: 30 mW / 5 mW selectable
• Capsule type: Electret condenser
• Characteristic: Omnidirectional
• Input connector: Jack socket, 3-pin, 3.5 mm diameter

Reference audio input level:

• -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
• +4 dBu (LINE INPUT)

• Audio attenuation adjustment range: 0 to 27 dB (in steps of 3 dB)
• Frequency response: 23 Hz to 18 kHz (typical)

Signal-to-noise ratio:

• 60 dB (-60 dBV, 1 kHz input)
• 102 dB (gain

• mode set to AUTO GAIN, max.): 96 dBV (gain mode set to NORMAL, max.)
• distortion: 0.9% or less (-60 dBV, input 1 kHz)
• Sound delay: approx. 0.35 ms

Beep frequency:

• in UWP-D compander mode: 32.382 kHz
• in UWP compander
• mode : 32 kHz in WL800 compander mode: 32.768 kHz

• display: OLED

Operating voltage:

• DC 3.0 V (two LR6 / AA alkaline batteries)
• 5.0 V DC (supply via USB type-C port)
• Battery life *: approx. 8 hours with an output power of 30 mW
•


* The battery life was measured with two LR6 / AA alkaline batteries from Sony at 25 ° C.

• operating temperatur: 0 to 50 ° C
• Temperature (storage / transport): -20 ° C to +55 ° C
• Dimensions: 63 x 73 x 19 mm (WxHxD) without antenna)
• Weight: approx. 83 g (without batteries)

In The Box

• 1 x Sony UTX-B40 / K21 UHF transmitter
• 1 x Sony ECM-V1BMP lavalier microphone
