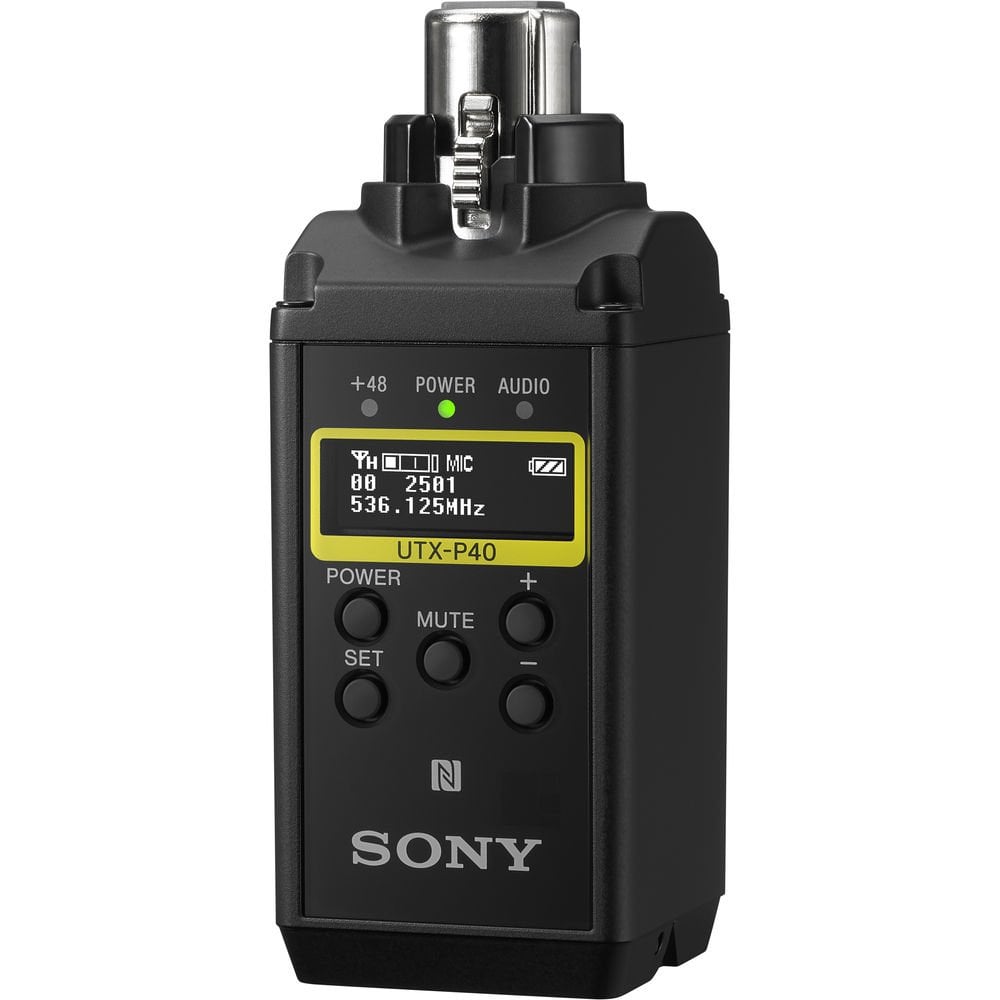

Sony UTX-P40-K21 Wireless Plug-On Transmitter

code: UTX-P40-K21

£261.17
Secure yours with a deposit of
RRP: £337.45
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Features:

Frequency range: 470 - 542 MHz (channels 21 - 29)
High sound quality thanks to digital audio processing from Sony
NFC-SYNC function for quick and easy safe channel setting (IR synchronization with receivers URX-P03, URX-P03D and URX-S03D)
Volume control in auto gain mode
+15 dB gain / volume boost mode for audio without a microphone
Line input
+48 V power supply
Transmitter frequency is sent to receivers to match multiple receivers to one transmitter
Variable mute function
Compatible with Sony WL-800 / UWP / UWP-D series
Easily legible OLED display, ideal for indoor and outdoor use
USB connection for power supply

Description
Specification
Included In Box
Reviews
(0)

Sony UTX-P40-K21 (UTX-P40/K21, UTX-P40_K21, UTXP40-K21, UTXP40/K21, utx_p40/k21) Wireless Plug-On Transmitter

The Sony UTX-P40 is a wireless plug-on transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this plug-on is well suited for tough operating conditions. It provides up to 6 hours of operation on two AA batteries, with a selectable 5/40mW RF power output and a transmission range up to 330'.

The UTX-P40 can be attached to a handheld microphone of your choice for man-on-the-street interviews, or to a shotgun mic for wireless booming (both types of mics are available separately). The plug-on provides 48V phantom power, giving you the option to use a condenser microphone. The transmitter offers a 72 MHz bandwidth with 2772 selectable UHF frequencies.

The UTX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.0 different capsules from various manufacturers.

The UTX-M40 is backward-compatible with Sony WL-800 and UWP Series systems.

Frequency CE 470,025 - 542,000 MHz.

Wireless Transmission Analog: UHF
RF Frequency Band: 470 to 542 MHz
RF Bandwidth: 72 MHz
Frequency Step Size: 25 kHz
Max Operating Range: 330' / 100.6 m (Typical)
Latency: 0.35 ms
Modulation: FM
Form Factor: Plug-On
RF Output Power: 5 / 40 mW
Audio: I/O 1 x XLR 3-Pin Female Input (Lockable)
Phantom Power: +48 V
Muting Off/On: Switch
Audio Input Level: -60 dBV (Mic Level)
Gain Range: 0 to +48 dB (3 dB Steps)
Frequency Response: 23 Hz to 18 kHz
Sync Method: NFC
Antenna: 1 x Internal
Power Requirements Battery, Bus Power: (USB)
Battery: Type 2 x AA (Not Included)
Approx: Battery Life 6 Hours (Alkaline)
USB/Lightning Connectivity: 1 x USB Type-C (Bus Power, Charging)
Display & Indicators: 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
Housing: Metal
Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 131°F / -20 to 55°C
Dimensions: 1.5 x 3.9 x 1.5" / 38.0 x 98.0 x 38.0 mm (without Antennas)
Weight: 4.9 oz / 139.0 g (without Batteries)

In The Box

1 x Sony UTX-P40 / K21 470 - 542 MHz (channels 21 - 29)
