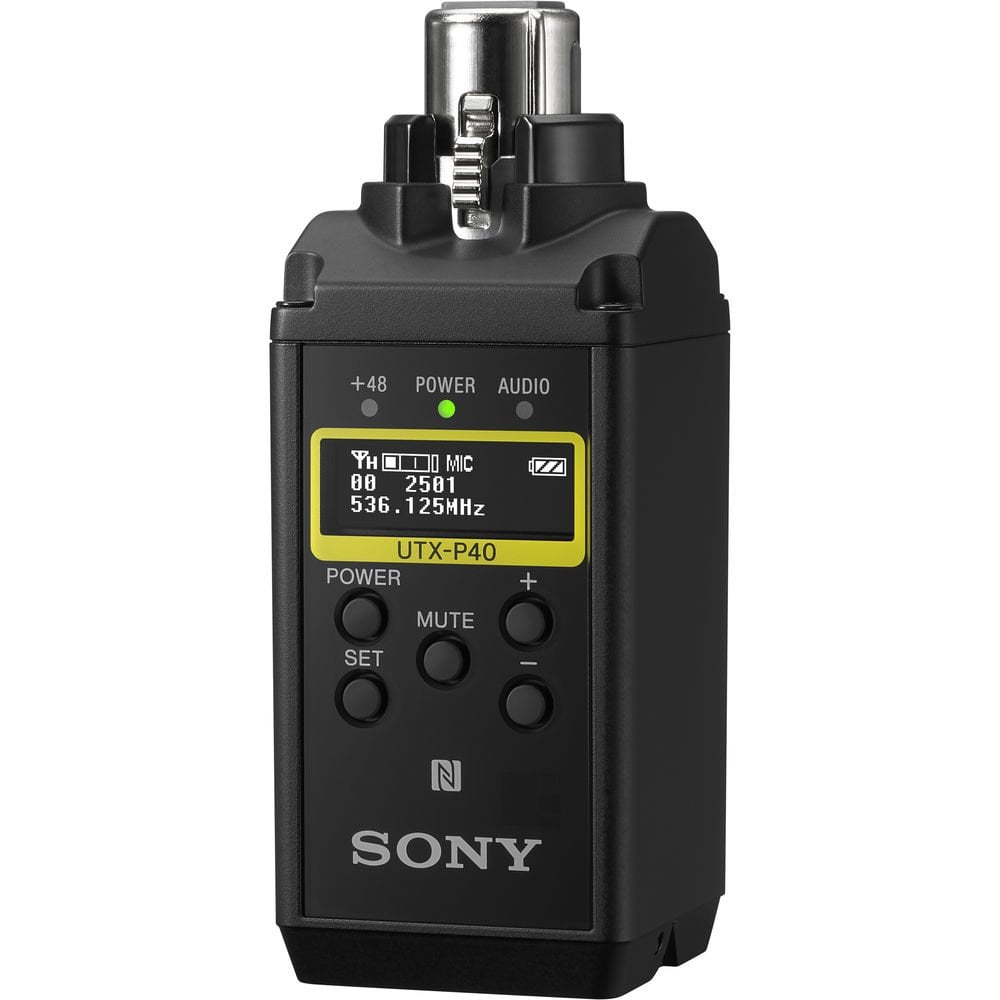

Sony UTX-P40-K42 Digital Wireless XLR Plug-on Transmitter

Sony UTX-P40-K42 (UTX-P40/K42, UTX_P40_K42, UTXP40/K42, UTX-P40_K42, utx-p40/k42) Digital Wireless XLR Plug-on Transmitter

The Sony UTX-P40 / K42 is an XLR plug-on transmitter for the WL-800, UWP and UWP-D series and works in the frequency range of 638 - 694 MHz (channels 42 - 48). The UWP-D series offers excellent sound quality with digital processing, reliable RF transmission, true dual tuner diversity reception and user-friendly functions.

The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources. Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings. The UWP-D26 package includes the UTX-B40 bodypack transmitter, UTX-P40 XLR plug-on transmitter and URX-P40 receiver, plus accessories.

• Oscillator type: Crystal controlled PLL synthesizer
• Carrier frequencies: 42CE: 638.025 MHz to 694.000 MHz (UHF TV channels 42 to 48)
• RF output power: 30 mW / 5 mW selectable
• Input connector: XLR-3-11C (female)
• Reference audio input level: -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
• Audio attenuation adjustment range: 0 dB to 48 dB (in 3 dB steps)
• Frequency response: 23 Hz to 18 kHz (typical)

Signal-to-noise ratio:

• 60 dB (-60 dBV, 1 kHz input)
• 102 dB (gain
• mode set to AUTO GAIN, max.) 96 dBV (gain mode set to NORMAL, max.)

• distortion: 0.9% or less (-60 dBV, input 1 kHz)
• Sound delay: approx. 0.35 ms

Beep frequency:

• in UWP-D compander mode: 32.382 kHz
• in UWP compander

• mode : 32 kHz in WL800 compander mode: 32.768 kHz
• display: OLED

Operating voltage:

• DC 3.0 V (two LR6 / AA alkaline batteries)
• 5.0 V DC (supply via USB type-C port)

Battery life * During +48 V OFF:

• approx. 8 hours with an output power of 30 mW

With +48 V ON and ECM-673 connection:

• Approx. 6 hours with an output power of 30 mW

* The battery life has been measured with two LR6 / AA alkaline batteries from Sony at 25 ° C.

• operating temperatur: 0 to 50 ° C
• Temperature (storage / transport): -20 ° C to +55 ° C
• Dimensions: 38 x 98 x 38 mm (W x H x D) (including audio input terminal)
• Weight: approx. 139 g (without batteries)

In the Box

• 1 x Sony UTX-P40 / K42 638 - 694 MHz (channels 42 - 48)
