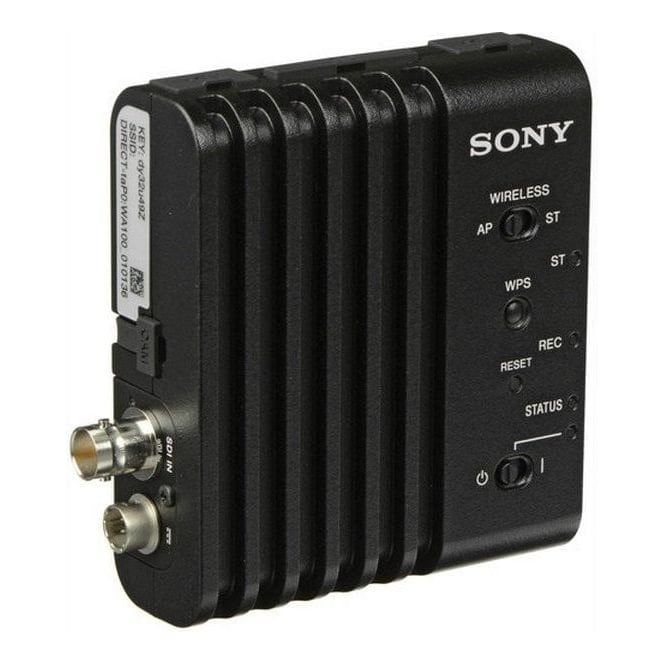

Sony Wireless LAN / Modem Adapter with SDI Input for XDCAM

Sony CBK-WA100 (CBK_WA100,CBK/WA100, CBK WA100) Wireless LAN / Modem Adapter with SDI Input for XDCAM

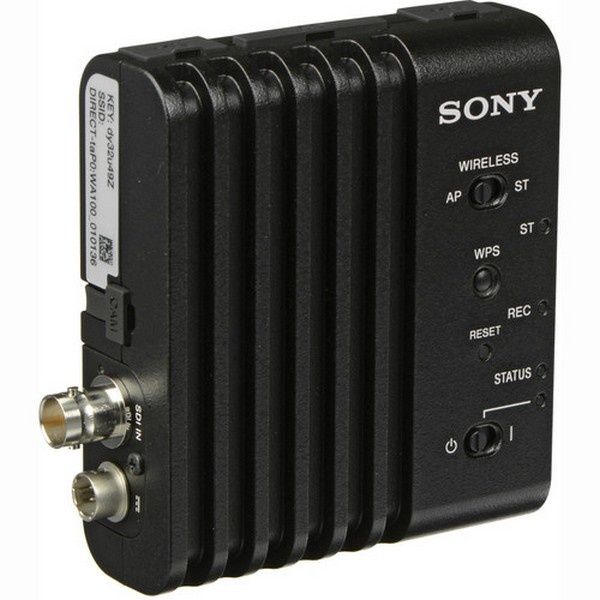

Sony CBK-WA100 Wireless Adapter for XDCAM EX Camcorders

Mobile network 3G / 4G / LTE / Wi-Fi wireless adapter for XDCAM EX camcorders

Enables easy transmission of content over a wireless network significantly accelerating the ENG workflow

The CBK-WA100 adapter connects directly to a camera and allows XAVC proxy files to be created and then saved on an SD card in the adapter. The CBK-WA100 is then able to upload the proxy content and the original high-resolution content via 3G/4G/LTE/Wi-Fi* to a broadcast station, on premise server or to a cloud environment.

Tablet or smartphone control via Wi-Fi

By supporting Wi-Fi connectivity, the CBK-WA100 allows tablets or smartphones to interact with it and control it via Sony’s Content Browser Mobile application. This connectivity for XDCAM camcorders allows users on their mobile device to remotely control the camera, logging metadata on set and reviewing content without having to connect a monitor to the camcorder.

For wireless transmission, Wi-Fi/3G/4G/LTE dongles are necessary. For Wi-Fi dongle, Sony’s “IFU-WLM3”, 2.4GHz Wi-Fi dongle is available. As for the Modem dongle, recommended model differs country by country depending on carrier.

• Weight: Approx. 220 g
• Dimensions (W x H x D): 84 x 95 x 30 mm without projection
• Power Requirements: DC 12 V
• Power Consumption: 4.5W (exclusive of external USB devices)
• Operating Temperature: 0 to +40 ℃, +32 to +104 °F
• Proxy Format (Video): XAVC Proxy (AVC/H.264 Main Profile, 4:2:0 Long GOP), - 1280x720, 9M (VBR), - 640x360, 3M (VBR), - 480x270, 1M (VBR)
• Proxy Format: (Audio): AAC-LC, 2ch,128kbps for Stereo
• DC Input: 4-pin (male)
• HD-SDI Input: BNC (x1)
• USB: USB device mini B Type (x1), for Camcorder host A Type (x2), for Wireless LAN USB Device and 3G/4G/LTE modem
• Recording Media (*1): SD Card Slot (x1)

In the box

• 2x Brackets
• 1x Cushion
• 1x Guard Bracket
• 2x Pads
• 1x DC Power Cable
• 1x BNC Cable
• 1x USB Cable
• 5x Screws
• 1x CD-ROM (incl. Operation Manual)
• 1x Installation Manual
• 1x Before Using This Unit
• 1x Warranty
• 1x Cable Tube
• 5x Cord Clamp
• 2x Hook and loop fastener
