Sony Wireless Mobile Network / Wi-Fi Adapter for PMW-400 Camcorder

Sony CBK-WA101 (CBK_WA101, CBK/WA101, CBK WA101)(PMW_400, PMW/400) Wireless Mobile Network / Wi-Fi Adapter for PMW-400 Camcorder

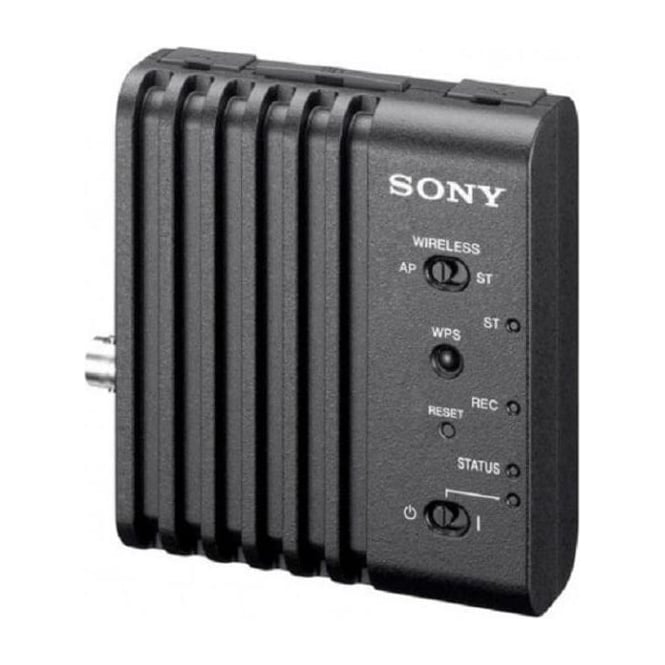

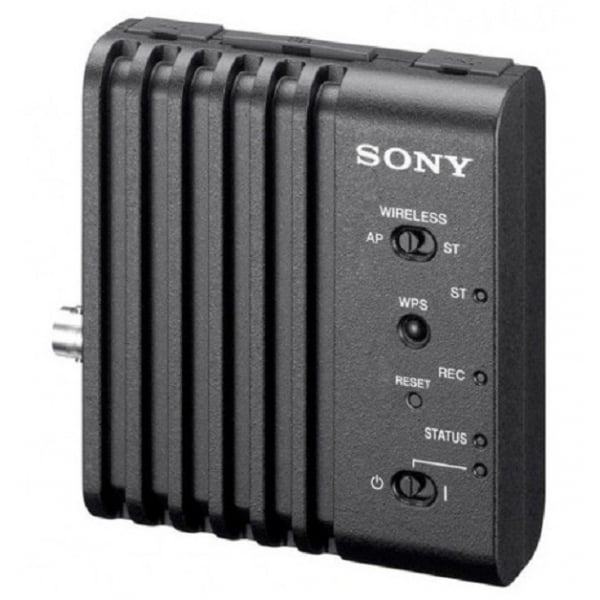

The Sony CBK-WA101 Wireless Adapter connects directly to the PMW-400 camcorder body to enable easy transmission of content over a wireless network.

Once attached it allows XAVC proxy files to be created and then saved on an SD card inside the adapter. The CBK-WA101 is then able to upload the proxy content and the original high-resolution content (depending on the model) via 3G/4G/LTE/Wi-Fi* to a broadcast station, on-premises server or to a cloud environment.

Tablet or smartphone control via Wi-Fi

By supporting Wi-Fi connectivity, the CBK-WA101 allows tablets or smartphones to interact with it and control it via Sony’s Content Browser Mobile application. This connectivity for the PMW-400 camcorder allows users on their mobile device to remotely control the camera, logging metadata on set and reviewing content without having to connect a monitor to the camcorder

For wireless transmission, Wi-Fi/3G/4G/LTE dongles are necessary. For Wi-Fi dongle, Sony’s “IFU-WLM3”, 2.4GHz Wi-Fi dongle is available. As for the Modem dongle, recommended model differs country by country depending on carrier.

• Weight: Approx. 220 g
• Dimensions (W x H x D): 84 x 95 x 30 mm without projection
• Power Requirements: DC 12 V
• Power Consumption: 4.5W (exclusive of external USB devices)
• Operating Temperature: 0 to +40 ℃, (+32 to +104 °F)
• Proxy Format (Video): XAVC Proxy (AVC/H.264 Main Profile, 4:2:0 Long GOP), 1280x720,9M (VBR), 640x360,3M (VBR), - 480x270,1M (VBR)
• Proxy Format (Audio): AAC-LC, 2ch,128kbps for Stereo
• DC Input: 4-pin(male)
• HD-SDI Input: BNC (x1)
• USB: USB device mini B Type (x1), for Camcorder host A Type (x2), for Wireless LAN USB Device and 3G/4G/LTE modem
• Recording Media: SD Card Slot (x1, for Class 4 and higher, SDXC should not be used)

In the box

• Wireless Adapter
• Bracket (2)
• Guard Bracket (1)
• Guard cushion (2)
• DC cable (1)
• BNC cable (1)
• USB cable (1)
• Fixing Screw (5)
• CD-ROM (incl. Operation Manual) (1)
• Installation Manual (1)
• Before Using this Unit document (1)
