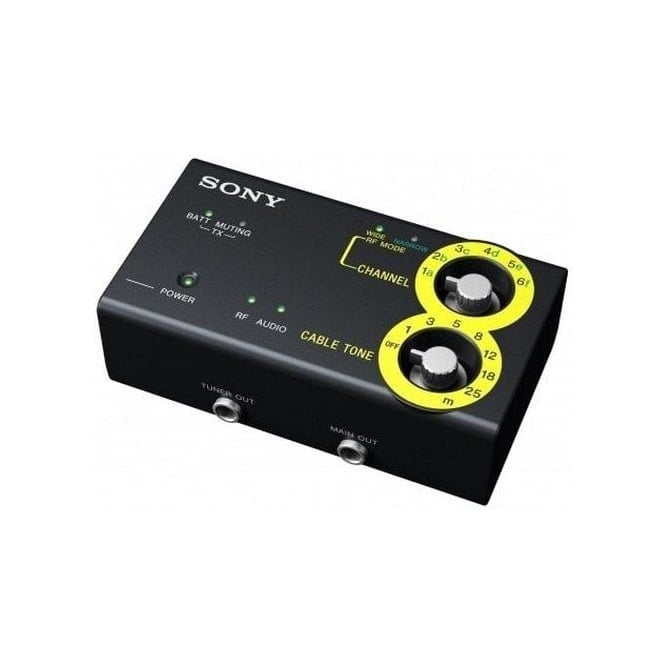

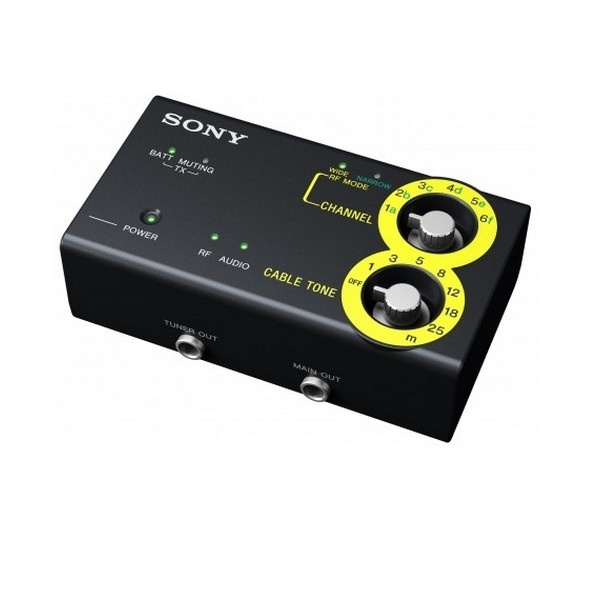

Sony ZRX-C30//EU Digital Wireless Pedalboard Receiver

Sony ZRX-C30//EU (ZRX-C30-EU, ZRX/C30/EU, ZRX_C30_EU, ZRXC30EU, zrx-c30//eu) Digital Wireless Pedalboard Receiver

The ZRX-C30 Digital Wireless Pedalboard Receiver from Sony is capable of receiving 24-bit linear PCM digital signals and is designed to be used with DWZ series wireless systems. It has both XLR and 1/4" instrument outputs and can be integrated into your pedalboard for use in wireless instrument applications. Its cable tone generator allows you to emulate the frequency response of a fully wired system, allowing you to use the same amp settings between wired and wireless setups.

The ZRX-C30 can be powered by a 9-volt battery, the included AC adapter, or via its 9-volt DC jack, allowing it to be powered by your pedalboard power supply. It has a metal body to endure the rigors of being on a pedalboard while its antenna in internal to avoid damage. The 1/4" tuner output allows you to run your signal straight to a stomp box tuner.

• Type: 1-channel
• Reception Type: Space Diversity
• Antenna Type: Internal monopole
• Receiving Frequency Range: 2402.0 to 2478.5 MHz
• RF Sensitivity: 30 dBu V or less
• Frequency Response: 10 Hz to 22 kHz
• Distortion (THD): 0.03 % or less (-38 dBu, 1 kHz input)
• Analog Output: 1x balanced XLR-3-32, 2x unbalanced phone jack
• Reference Output: Balanced output: -20 dBu, Main/Tuner Output: -28 dBu
• USB: 1x USB for firmware updates
• Power Requirement: DC 12 V, DC 9 V, Square 9 V 6LR61 battery
• Battery Operating Time: 3.5 hours approximate, with continuous use (77°F, 25°C ambient temperature)
• Operating Temperature: 32 to 122°F (0 to 50°C)
• Storage Temperature: -4 to 140° (-20 to 60°C)
• Dimensions (WxHxD): 5 x 1.6 x 3" (132 x 41 x 74 mm)
• Weight: 7.2 oz (205 g)

In the box

• Sony ZRX-C30 Digital Wireless Pedalboard Receiver
• AC Adapter
• Cable Clamp
