Hollyland SYSCOM1000T-4 Syscom 1000T Full Duplex Intercom System with 4 Belt Packs

Hollyland SYSCOM1000T-4 (SYSCOM-1000T-4, SYSCOM/1000T/4, SYSCOM_1000T_4, SYSCOM 1000T 4, syscom1000t-4) Syscom 1000T Full Duplex Intercom System with 4 Belt Packs

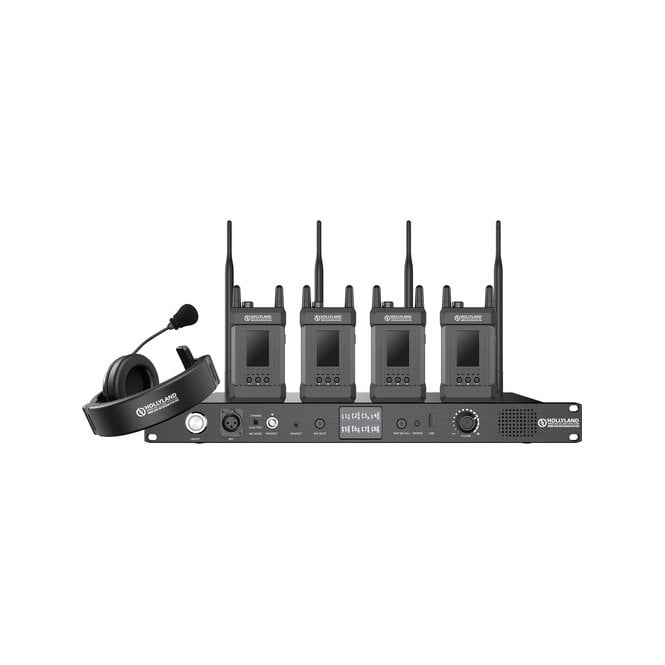

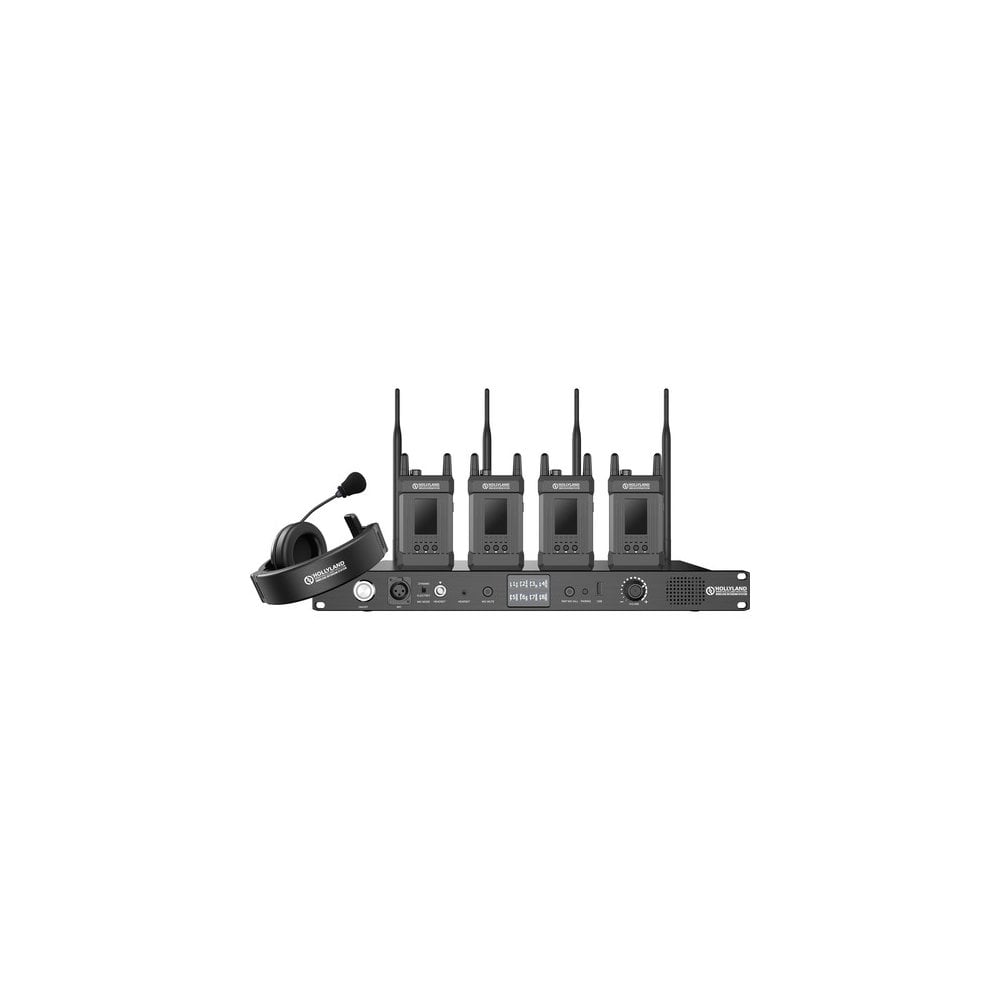

The Hollyland Syscom 1000T-4B Full-Duplex Intercom System with Four Beltpacks and Headsets is great for broadcasting, training, and meetings as a full-duplex intercom system offering carrier-grade voice quality and wireless tally at a range of up to 1000 feet. This system includes a base station with four high-gain antennas, four beltpack transceivers with chargers, four headsets, and a gooseneck microphone.

The base station features extensive connectivity such as LEMO and 3.5mm headset sockets, analog voice I/O via XLR jacks, USB Type-A and USB Type-C ports, and a DB25 tally interface. Thanks to its support for AC and DC power supplies, you can be assured of continued operation even if one power source fails. The base station also provides adjustable audio levels and a remote mic kill function.

Plug the supplied headsets into the beltpack transceivers and enjoy up to eight hours of run time before needing to recharge the transceivers. With wireless tally and LCD screens that display different colors, the transceivers allow clear communication through simple color cues.

General Features

• Ideal for broadcasting, forum meetings, business activities, education, and training
• 1000' full-duplex wireless communication for simultaneous two-way audio signal transmission without latency
• Wireless tally function allows accurate communication by seeing beltpack screen colors
• Carrier-grade voice quality
• Automatic upgrade via flash drive or USB
• Integrates with other intercom systems
• Includes four high-gain base station antennas
• Includes gooseneck microphone
• Includes single-sided headsets

Base Station Features

• Base station supports up to eight rechargeable beltpack transceivers
• Mic mute and remote mic kill via base station
• Adjustable volume control on front panel
• Rear-panel controls for audio I/O levels
• 3-pin XLR gooseneck microphone input with dynamic/electret mode switch
• LEMO and 3.5mm headset ports
• USB Type-A and USB Type-C ports
• DB25 tally control interface
• Analog voice input and output via 3-pin XLR jacks
• Supports dual power supplies via AC (standard IEC connector) and DC (4-pin XLR connector)
• Industrial metal shell occupies 1 RU of rackspace

Beltpack Transceiver Features

• Built-in lithium battery provides up to eight hours of operating time
• LEMO and 3.5mm headset ports
• Power switch, volume control, and mute/call button
• Easy operation via LCD screen and menu navigation buttons
• USB Type-C charging port
• 3.5mm tally output
• SMA-K antenna ports
• Industrial metal shell with belt clip

System

• Number of Included Headsets: 4 x Single-Sided Headset
• Number of Included Transceivers: 4 x Belt Pack

Headphone

• Earpiece Design: Over-Ear (Circumaural)
• Earpiece Connection / Wearing Style: Headband
• Number of Earpieces: Single Earpiece (Left Side)
• Sound Field: Mono
• Driver Type: Dynamic
• Controls/Microphone Location: Microphone: Fixed Boom

Microphone

• Mic Boom Location: Left Side

Wireless Connectivity
Wireless Transmission:

• Digital 1.9 GHz
• Digital 2.4 GHz

• RF Bandwidth: Up to 1.73 MHz
• Modulation: GFSK
• Duplex Mode: Full-Duplex (FDX)
• Approximate RF Sensitivity: -93 dBm
• Wireless Range: 1000' / 304.8 m

Wired Connectivity
Audio Connector to Source:

• 1 x 1/8" / 3.5 mm TRRS Male Straight
• 1 x LEMO (Unspecified Type) Female Straight

Battery
Battery Chemistry:

• Beltpack: Lithium-Ion Polymer (LiPo)
• Capacity (mAh): 4000 mAh

Runtime

• Beltpack: 8 Hours

Base Station / Transmitter

• Users per System: 8

I/O Connectors:

• 2 x XLR 3-Pin - Audio Input
• 1 x XLR 3-Pin - Audio Output
• 1 x LEMO - Audio Input/Output
• 1 x 1/8" / 3.5 mm - Audio Input/Output
• 1 x USB Type-A - Input/Output
• 1 x USB Type-C - Input/Output
• 1 x DB25 - Control Input/Output

Antenna

Base Station:

• 4 x 1/2 Wave External, Detachable
• AC/DC Power Adapter: 10 to 20 VDC (Not Included)

• AC Input Power: 110 to 240 VAC, 50 / 60 Hz
• Power Consumption: 6 W

Environmental

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 140°F / -20 to 60°C
• Certifications: CE, FCC, as per Manufacturer

Physical

• Water Resistance: None
• IP Rating: None
• Material of Construction: Metal

Dimensions:

• Base Station: 19 x 6.89 x 1.75" / 482.6 x 175 x 44.4 mm
• Beltpack: 4.72 x 2.8 x 0.98" / 120 x 71 x 25 mm

Weight

• Base Station: 6.4 lb / 2.9 kg
• Beltpack: 0.7 lb / 0.3 kg

Packaging Info

• Package Weight: 40.075 lb
• Box Dimensions (LxWxH): 25.7 x 20.9 x 12.7"

In the Box

• Base Station x 1;
• Beltpack x 4;
• Dynamic LEMO Single-Ear Headset x 5;
• 1.9G High-Gain Base Station Antenna x 6;
• USB Type-C Cable x 4;
• AC Power Cable x 1;
• 3-Pin XLR Gooseneck Microphone x 1;
• User Manual x 1;
• Multi-Port USB Charger x 1.
