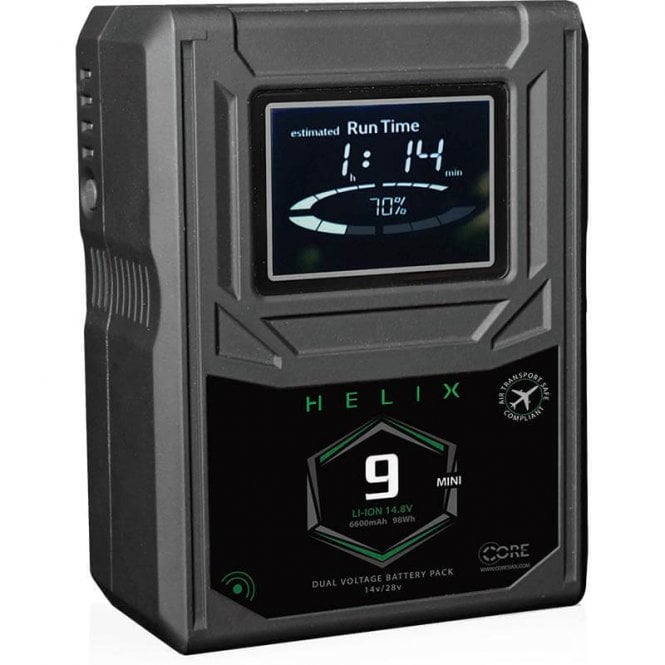

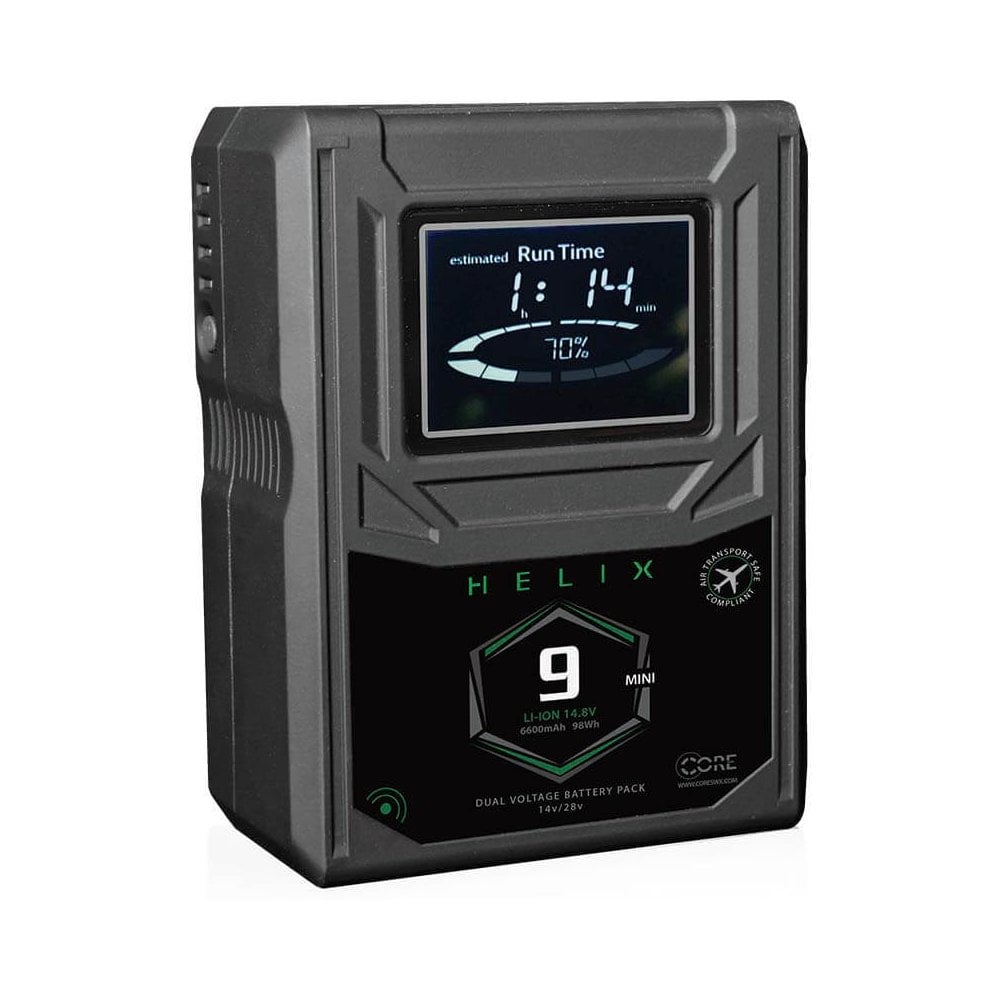

Core SWX Helix Dual Voltage 9 mini - V-mount

Core SWX CORE-HLX-9S (COREHLX-9S, CORE-HLX9S, COREHLX9S, HLX-9S) Helix Dual Voltage 9 mini - V-mount.

Simultaneous 14V/28V Power Output:

Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.

Near Lossless Power Transmission:

Leveraging a proprietary, patent pending technology, Helix is ultra efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing lesscurrent, creating less heat and extending both operational runtime and product longevity.

Ultra Compatible V-mount & Gold mount:

Helix’s uniquely designed infrastructure allows the pack to function as a standard V-mount or Gold mount 14v pack in all applications without the fear of accidentally transmitting high voltage. Along with standard powering applications, Helix charges on all standard v-mount and gold mount Lithium-Ion equipment, including Anton/Bauer, allowing it to seamlessly integrate into your current fleet of battery packs.

CoreSWX has produced a series of mount plates (sold separately), offerings for high voltage accepting equipment. To unlock the high voltage output function, couple HELIX with the mount plate. Once mounted, the battery pack will transmit the higher voltage efficiently to the camera, yet still have access to 14v for other production accessories. In addition, the battery mount plates are compatible with standard on-board battery packs. This compatibility allows you to still use your existing V-mount and Gold mount battery packs on wide range voltage cameras (ARRI Alexa, Amira, Mini Alexa, etc.) when using a Helix mount.

• Capacity 98wh, 6.6Ah, 14.8v native
• Dimensions 9cm x 11.8cm x 4.8cm
• Weight 0.63kg
• Mount V-Mount

What in The Box

• 1x Helix 9 Mini Battery V-Mount
