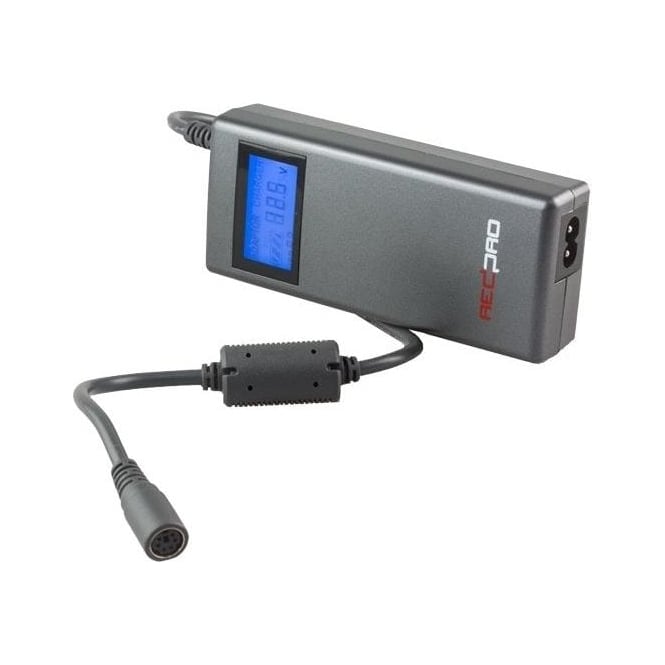

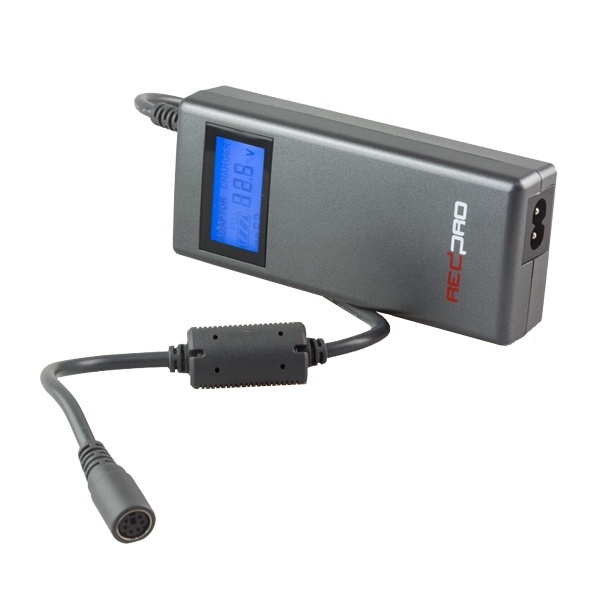

Redpro RP-DC80 intelligent professional digital battery charger / adaptor

Redpro RP-DC80 (RPDC80, RP DC80, RP/DC80, rp-dc80) Intelligent Professional Digital Battery Charger

RedPro RP-DC80 is the versatile and multifunctional charger and power unit all in one. Its user friendly and self adapting capabilities won't leave you indifferent as it is ideal for traveling, for powering up professional LED lights, pro camcorders, for charging V-Lock Batteries whether you work in a studio or a backlot.

RP-DC80 will provide the constant currency power supply to the professional video camcorder manufacturers, video LCD monitors manufacturers, audio and video devices and any other unit which powers from 12.5V to 17V / 90W maximum, professional batteries manufactures which run on 14.8V where 5V to 16.8V/3A/50W is needed.

 All known world’s Professional Batteries manufacturers: Sony, Idx, Anton Bauer, Pag, Swit, Blueshape, Dynacord.

How does it work? Connect appropriate cable to the unit and you have your charger/adaptor ready. Cables are purchased individually.

IN THE BOX:

• RPC – 1255 (DC multi pin Jack – soldered ends) ~ 12.5V / 5A - 80W (Max) … adaptor power Cable ready for individual assembly

• RPC – 1685 (DC multi pin Jack – soldered ends) ~ 17.0V / 5A - 90W (Max) … adaptor power cable ready for individual assembly

According to what you want to charge, you will have to order different cables on the list below:

Battery Charger Extension Cable (Optional)

• RPC – DT (DC multi pin Jack – D-Tap Plug) ~ 16.8V / 2.3A … useto charge all battery packs that run on 14.4V on D-Tap ( RedPro RP-BP85D , PB-D150V , PB-D150A , PB-D100V , PB-D100A )

Power Supply Extension Cables (Optional)

• RPC – HY (DC multi pin Jack – HIROSE 4-pin HR10A-7R-4P Plug) ~ 12.5V / 5A - 80W (Max) ... use to power Sound Device and all other units that need 4-pin Hirose Plug

• RPC - DTP ( DC multi pin Jack – D-TAP Jack) ~ 17V / 5A - 90W (Max) … adaptor power cable provide power on D-Tap female connector

• RPC - DTPS ( DC multi pin Jack – D-TAP Jack) ~ 12.5V / 5A - 80W (Max) … adaptor power cable provides power on D-Tap female connector

• RPC – SO (DC multi pin Jack – Sony C-pin 5.5 mm pole DC lead plug) ~ 12.5V / 5A - 80W (Max) … use to power all Sony DV Camcorders

• RPC – 4X (DC multi pin Jack – 4-pin XLR Plug) ~ 17V / 5A - 90W (Max) ... use to power all Professional Camcorders and all other units that connect on 4-pin XLR Plug

• RPC – DC (DC multi pin Jack – DC 5.5 x 2.5mm plug) ~ 12.5V / 5A - 80W (Max) … To use to power all units on standard DC 5.5mm connection ( Black Magic Design, Canon)

ite-space: pre;" class="Apple-tab-span">DC 5V / 1A  / 5W ( max )

Operation Control : 1.6-inch LCD Back lite Display Dual Color – Shows Charging Status / Voltage of DC and USB out

Operating Temperature : -10 to 40 C

Dimensions (HxWxD) : 132 x 58 x 30 cm

Weight (Gram,Pound,Ounce) : 365g

• DC80
