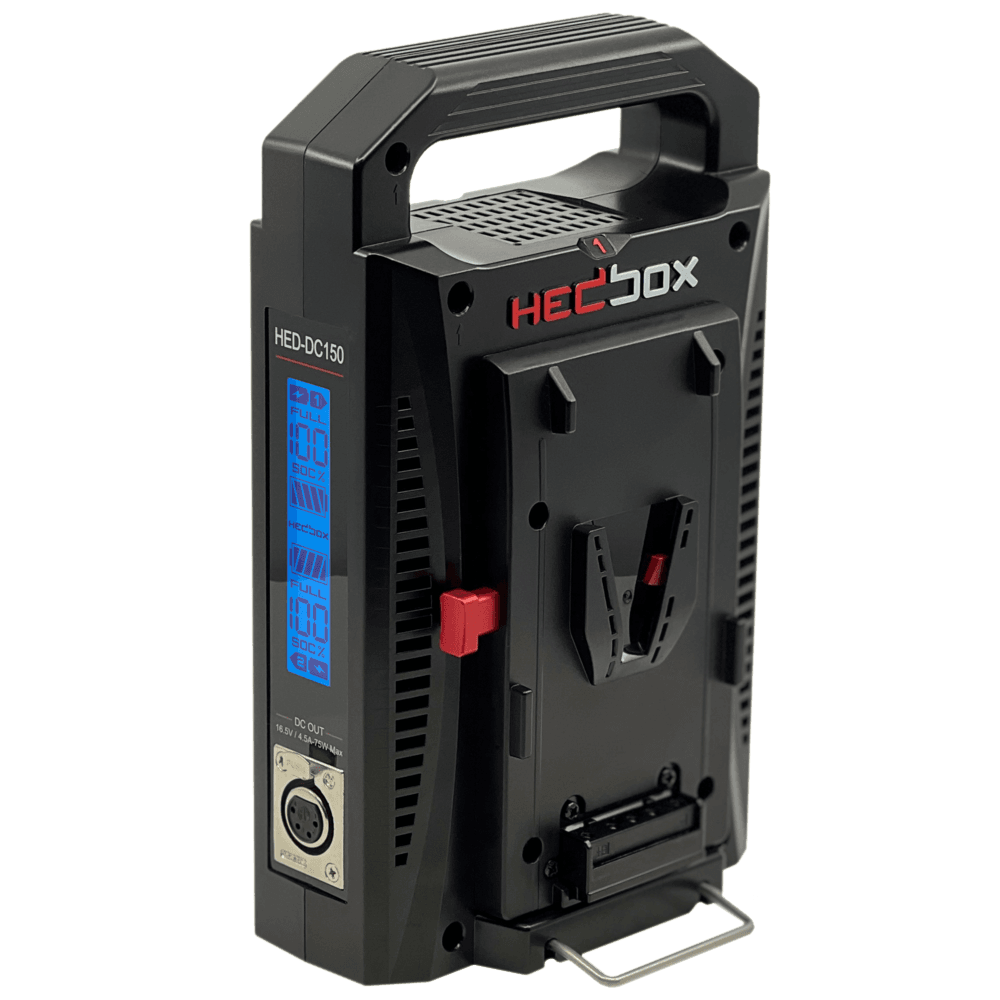

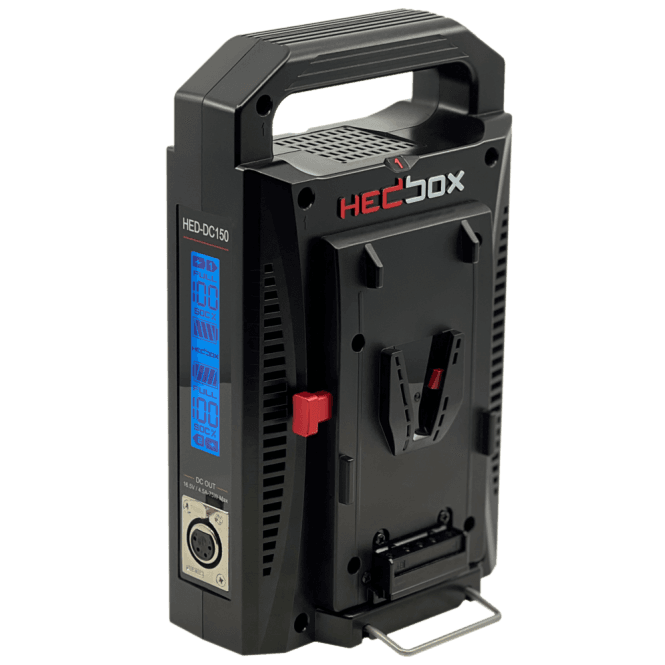

HedBox Simultaneous Dual Battery Charger/Power Bank

Hedbox Simultaneous Dual Hedbox Battery Charger/Power Bank(HED-DC150V, HEDDC150V, HED/DC150V)

Hedbox HED-DC150V is an Intelligent Digital Dual LCD Battery Charger for V-Mount (V-Lock) Batteries featuring simultaneous charging and UPS/Power Bank capabilities. LCD status indicators with backlight provides clear, accurate and precise reporting while integrated support stands ensure stable operation when only one battery is mounted. The included 4-pin XLR female to male DC Power Cable (RPC-DC4X4) enables the HED-DC150V to be used as a Power Bank, providing power to the DC output from the AC-input or fitted V-Lok batteries. DC output power of up to 14.5V 4.5A 75W is available.

When running as a Power Bank should the AC-input fail then power to the DC is seamlessly switched to a fitted battery, and then to the second battery upon depletion of the first battery.

AC Power In: AC 110 – 240V , 50/60Hz

Battery Mount: V-Lock and V Mount Battery Plate

Power Consumption: Max 85W

Power Output 1: DC 16.8V / 3A Single Chanel / 2.4A Dual Chanel Charge

Power Output 2: DC 16.8V / 3A Single Chanel / 2.4A Dual Chanel Charge

DC Power Out: DC 16.5V , 4.5A / 75W (max)

Power Bank Out: DC 16.5V , 4.5A / 75W (Capacity depends on the total capacity of the installed Battery Packs)

Charging Type: Ni-CD , Ni-MH , Li-Ion

Operating Temperature: –20°C to +45°C (–4°F to +113°F)

Dimensions (WxDxH): 124 x 114 x 445 mm

Weight: 1.2 Kg

In the Box

1x HED-DC150V INTELLIGENT DIGITAL DUAL LCD BATTERY CHARGER

1x RPC-DC4X4 DC 4-PIN XLR POWER CABLE

1x 110V ~ 240V POWER SUPPLY CABLE

1x USER MAUNAL (ENGLISH)
