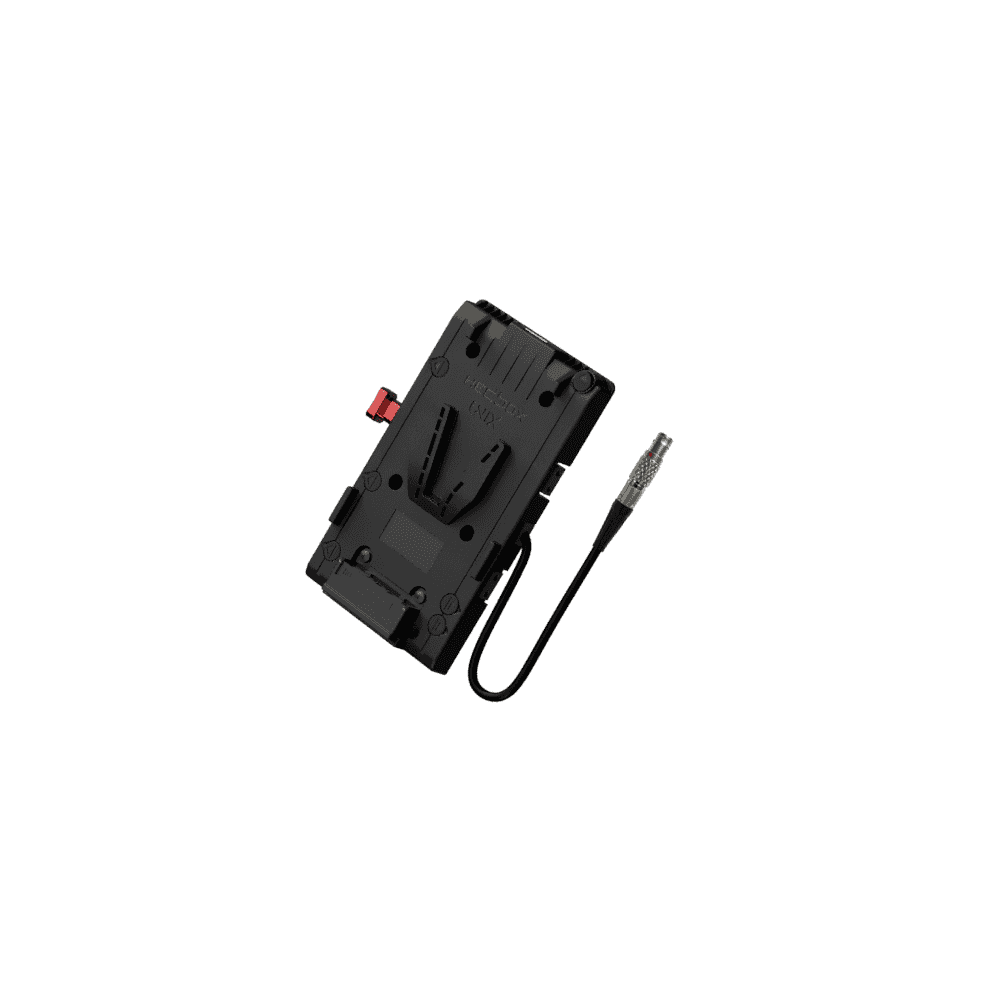

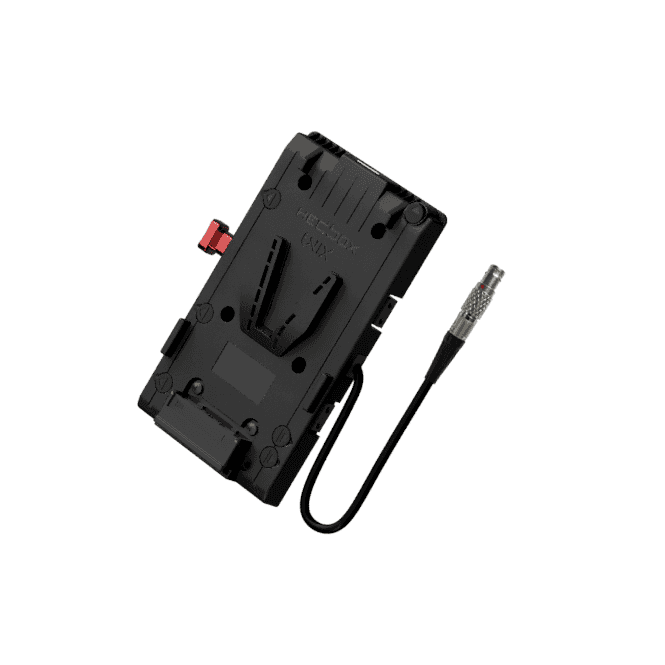

HedBox UNIX-0B V-Mount Battery Plate with 3x D-Tap 1x USB 1x 50cm 2-Pin FGG.0B.302 cable

HedBox UNIX-0B (UNIX0B, UN-IX-0B, UNIX 0B, UNIX/0B) V-Mount Battery Plate with 3x D-Tap 1x USB 1x 50cm 2-Pin FGG.0B.302 cable

UNIX Professional Cine Battery V-Mount Plate enables the use of V-Lock battery packs on cameras and/or numerous professional peripherals simultaneously. Featuring a high-quality aluminium v-lock release, Hedbox UNIX plates are designed and tested for up to 10,000 battery cycles. Three (3) D-Tap DC Power Outputs provide 14.8V for extra devices and peripherals such as on-board recorders, LED lights, monitors, remote follow focus, wireless transmitters etc. A built-in USB 5V 2.1A Power Output is located on the top of the UNIX plate.

Designed with versatility in mind UNIX plates have multiple mounting holes to provide universal camera connection or peripheral mounting – 4x M3x12 screws are included with UNIX to mount the plate as required.

The UNIX-0B includes a hard-wired 50cm power cable with a 2-Pin Push Pull FGG.0B.302 (Male) Connector that can be used to power various cameras and other professional photo/video devices that accept this connector.

UNIX Professional Cine Battery V-Mount Plate enables the use of V-Lock battery packs on cameras and/or numerous professional peripherals simultaneously. Featuring a high-quality aluminium v-lock release, Hedbox UNIX plates are designed and tested for up to 10,000 battery cycles. Three (3) D-Tap DC Power Outputs provide 14.8V for extra devices and peripherals such as on-board recorders, LED lights, monitors, remote follow focus, wireless transmitters etc. A built-in USB 5V 2.1A Power Output is located on the top of the UNIX plate.

Designed with versatility in mind UNIX plates have multiple mounting holes to provide universal camera connection or peripheral mounting – 4x M3x12 screws are included with UNIX to mount the plate as required.

The UNIX-0B includes a hard-wired 50cm power cable with a 2-Pin Push Pull FGG.0B.302 (Male) Connector that can be used to power various cameras and other professional photo/video devices that accept this connector input.

• Model : UNIX-0B V-Mount Adapter Power Plate
• Battery Mount : V-Lock Mount
• D-Tap Power Out 1 : DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
• D-Tap Power Out 2 : DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
• D-Tap Power Out 3 : DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
• USB Output : DC 5V / 2.1A /10W (Max)
• Breakaway DC Cable : DC 12V ~ 16.8V / 10A / 148W (Max) 50cm (length)/ Unregulated Push Pul FGG.0B.302 Male
• V-lock release : High Quality Aluminium Alloy
• Operating Temperature : –20°C to +45°C (–4°F to +113°F)
• Dimensions (WxDxH) : 146 x 102 x 26 mm
• Weight : 185 g
• Mounting : Multiple mounting holes for universal camera connection

In The Box

• 1 x UNIX-0B V-Mount Plate
• 1 x Set Screw M3x12 ( 4pcs)
• 1 x User Manual - (English)
