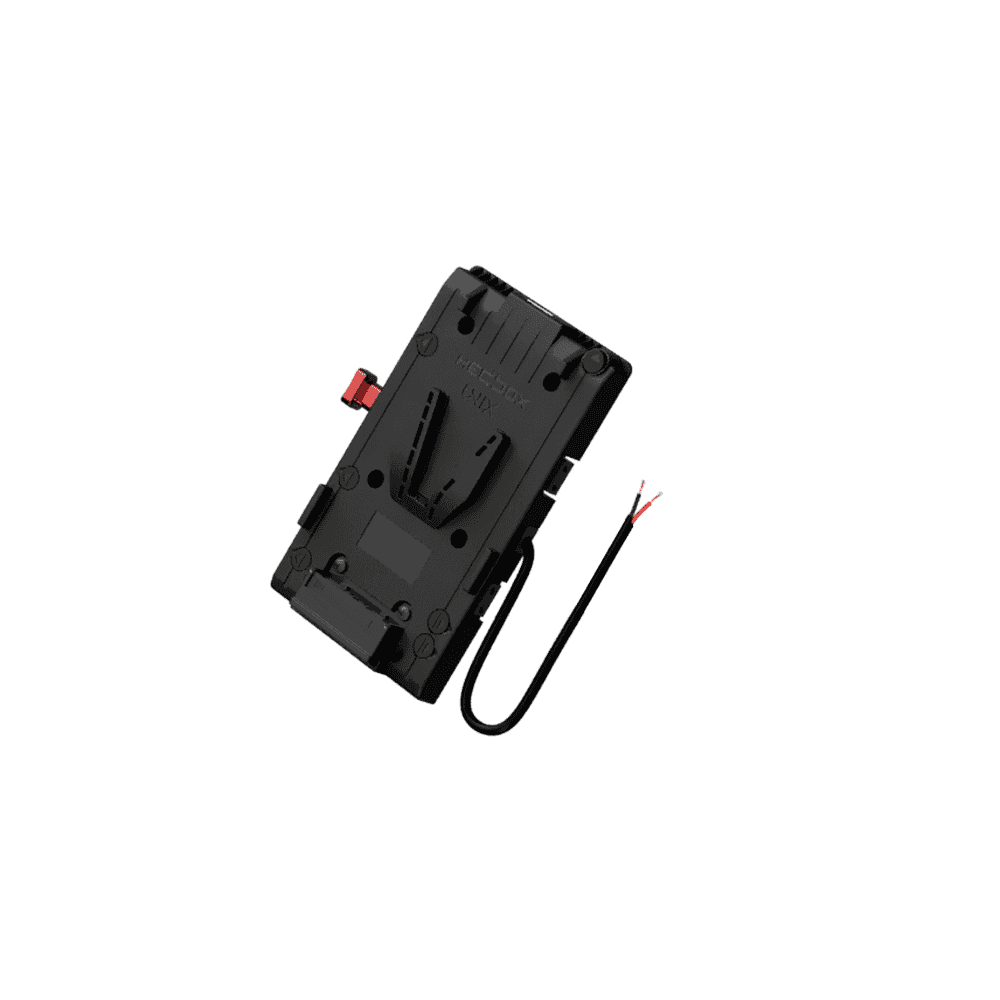

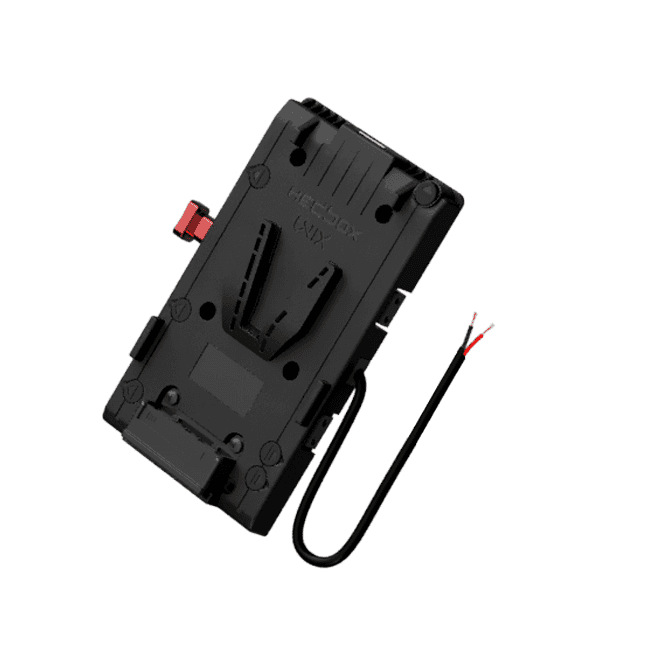

HedBox UNIX-7V2 Professional Cine Battery Plate for use on Pro V-Lock Battery Packs

code: UNIX-7V2
  • £78.00
  • RRP: £78.00
Item Available | Usually dispatched within 24 hours


  • V-Mount Adapter Power Plate with 3x D-Tap DC 14.8V Outputs and Single USB 5V 2.1A Output
  • Hard-wired DC 7.2V 2.1A 15W 50cm power cable (un-terminated)
  • Aluminium V-Lock Release supports up to 10,000 Battery Cycles

HedBox UNIX-7V2 (UNIX7V2, UNIX/7V2, UNIX 7V2, UN-IX-7V2) Professional Cine Battery Plate  for use on Pro V-Lock Battery Packs

UNIX Professional Cine Battery V-Mount Plate enables the use of V-Lock battery packs on cameras and/or numerous professional peripherals simultaneously. Featuring a high-quality aluminium v-lock release, Hedbox UNIX plates are designed and tested for up to 10,000 battery cycles. Three (3) D-Tap DC Power Outputs provide 14.8V for extra devices and peripherals such as on-board recorders, LED lights, monitors, remote follow focus, wireless transmitters etc. A built-in USB 5V 2.1A Power Output is located on the top of the UNIX plate.

Designed with versatility in mind UNIX plates have multiple mounting holes to provide universal camera connection or peripheral mounting – 4x M3x12 screws are included with UNIX to mount the plate as required.

The UNIX-7V2 includes a hard-wired 50cm DC 7.2V 2.1A 15W power cable that can be used to power various cameras and photo/video devices. Please note that for versatility the end of the hard-wired cable is not terminated so appropriate termination of the ‘flaying ends’ is required as appropriate by a qualified technician prior to use.

View More Details
  • Model : UNIX-7V2 V-Mount Adapter Power Plate
  • Battery Mount : V-Lock Mount
  • D-Tap Power Out 1 : DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
  • D-Tap Power Out 2 : DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
  • D-Tap Power Out 3 : DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
  • USB Output : DC 5V / 2.1A /10W (Max)
  • Breakaway DC Cable : DC 7.2V / 3.5A / 25W (Max) 50cm (length)/ Regulated Flaying End
  • V-lock release : High Quality Aluminium Alloy
  • Operating Temperature : –20°C to +45°C (–4°F to +113°F)
  • Dimensions (WxDxH) : 146 x 102 x 26 mm
  • Weight : 185 g
  • Mounting : Multiple mounting holes for universal camera connection
View More Details

In The Box

  • 1 x UNIX-7V2 V-Mount Plate
  • 1 x Set Screw M3x12 ( 4pcs)
  • 1 x User Manual - (English)
View More Details
