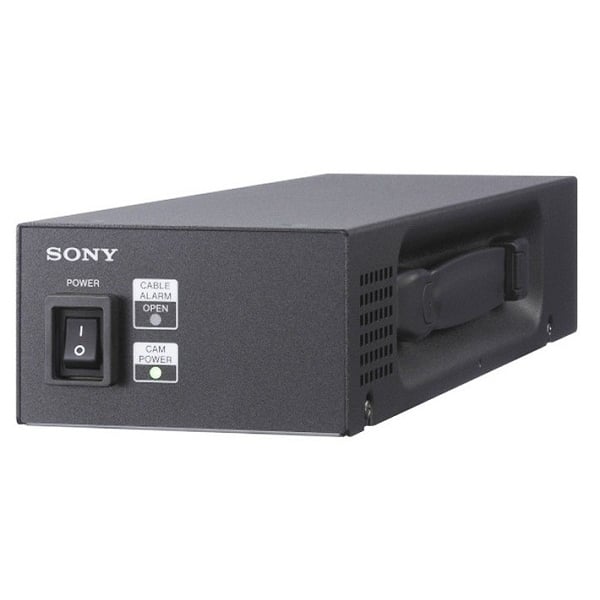

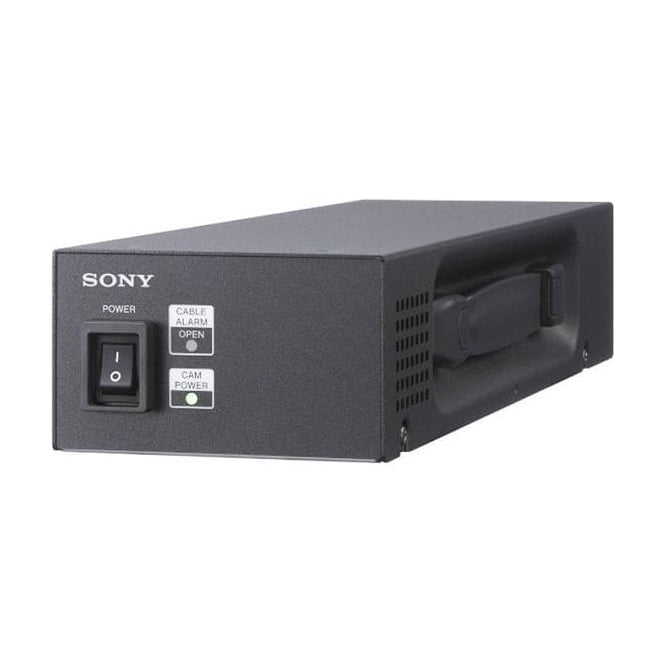

Sony Power Supply Extension Unit

Sony HXCE-FB70//U (HXCEFB70//U, HXCE/FB70//U, hxce-fb70//u) Power Supply Extension Unit

Extends fibre connection from 250m to 10km

• The HXCE-FB70 is an extension module for the fibre connection between the CA-FB70 optical fibre adaptor and HXCU-FB70 optical fibre CCU. It receives power via a fibre from the HXCU-FB70. It then connects to the CA-FB70 with a single mode fibre cable. In this case, it can extend the extension distance from 250m to 250m + 10km if the CA-FB70 is powered locally. The HXCE-FB70 is designed to work with the HXC-D70 and PMW-320/350/500 camcorders.

Full HD picture quality and connection for all signals

• The HXCE-FB70 provides the excellent picture images as well as flexible integration and the possibility to extend the operation with all signals (Tally, Intercom, Video Return and Prompter) in full HD.

• Power Supply: AC 100 v to 240 V, 50/60 Hz
• Operation Temperature: 5°C to 40°C (41°F to 104°F)
• Storage Temperature: -20°C to +60°C (-4°F to +140°F)
• Dimensions (W-H-D): 104 x 62 x 360 mm (4 1/8 x 2 1/2 x 14 1/4 inches)
• Mass: 2.3 kg (5 lb 1.1 oz)
• Camera: Optical Multi Connector (x1)
• CCU: Optical Multi Connector (x1)

In the box

• 1 x Power Supply Extension Box
• 1 x CD-ROM
• 1 x Operation Instructions
