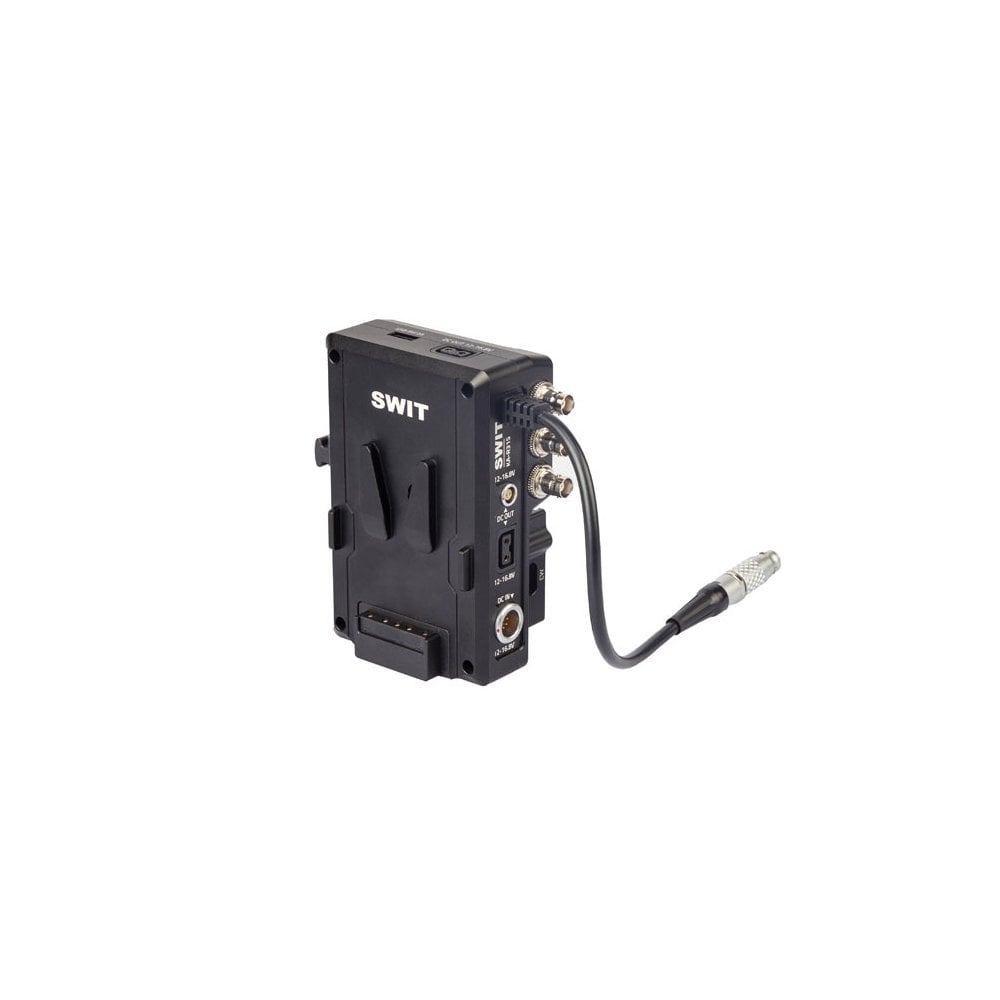

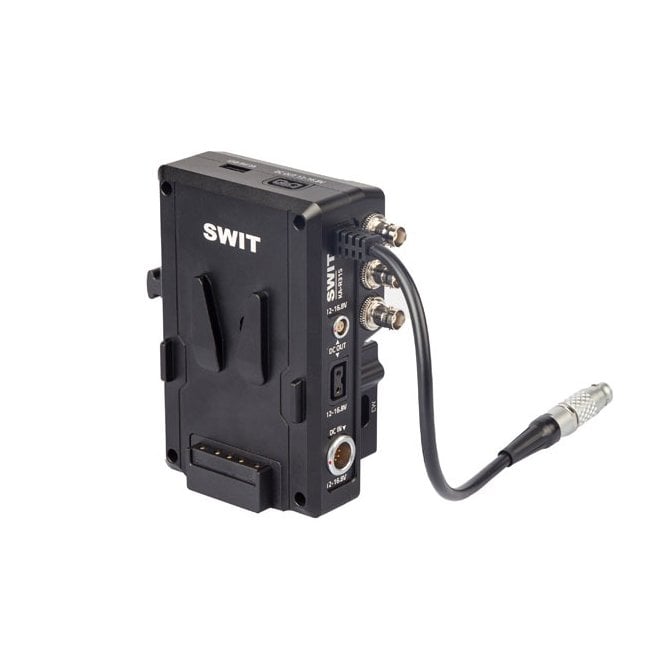

Swit KA-R31S | High load with multi-sockets Hot-Swap Adaptor with SDI 1to2, V-Mount to ARRI ALEXA Mini or Mini LF

SWIT KA-R31S | High load with multi-sockets Hot-Swap Adaptor with SDI 1to2, V-Mount to ARRI ALEXA Mini or Mini LF

KA R31S KAR31S KA-R31S KA/R31S

Hot-Swap Plate for ALEXA MINI / MINI LF- KA-R31S is a V-mount extended plate dedicated for ARRI ALEXA MINI and MINI LF install. The plate has battery cells inside, and when you changing battery, the plate will take over the power supply for at least 2 minutes, till a new battery is mounted on. So you don’ t need to switch off the cameras with this hot-swap plate.

ALEXA MINI / MINI LF Install- KA-R31S matches with ARRI original MINI / MINI LF support system by connection with RAB-1 Clamp 2 (K2.0023406).

* The KA-R31S plate doesn’t include the K2.0023406 clamp.

At least 2mins at 200W load- KA-R31S has CNC aluminium housing, 4 battery cells inside, 14.4V nominal voltage, 43Wh capacity, 200W constant high load. The full capacity plate will ensure at least 2 minutes at 200W load even after 1000 cycle times.

120 Seconds Countdown Display- The hot swap plate provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it count down to 0. The new battery will charge the hot swap plate as well. You can see the countdown seconds will go back to 120s after a period of time.

Power and SDI Distribution

KA-R31S provides:

• 1x 8-pin 12-16.8V 200W/16A to ALEXA MINI/MINILF
• 1x 2-pin LEMO 12-16.8V 38W/3A out
• 2x D-tap 12-16.8V 125W/10A out
• 1x USB-A 5V/2A output
• 1x 8-pin 12-16.8V DC input (For power station hot swap)

And supports 3GSDI 1 to 2 distribution, with SDI isolator inside, to prevent other camera top SDI devices damage the camera SDI port.

15mm Rod Adaptor- KA-R31S provides with a free 15mm Rod Adaptor in the package, to install on the old style ALEXA MINI 15mm rig system.

Specifications

• Inner battery voltage- 14.4V nominal, 12-16.8V
• Inner battery capacity- 43Wh/3Ah
• Power load- 200W/16A constant high load
• 8-pin LEMO output- 12-16.8V, 200W/16A for ALEXA MINI / MINI LF
• D-tap output x2- 12-16.8V, 125W/10A each, 200W/16A in total
• 2-pin LEMO output- 12-16.8V, 38W/3A
• USB-A output- 5V, 10W/2A
• 8-pin LEMO input- 12-16.8V
• BNC x1- 3G/HD/SD-SDI input
• BNC x2- 3G/HD/SD-SDI distribution output
• Dimensions-93×143×53mm
• Net weight- 875g

What's in the box

• 1x SWIT KA-R31S | High load with multi-sockets Hot-Swap Adaptor with SDI 1to2, V-Mount to ARRI ALEXA Mini or Mini LF
• 1x 15mm Rod Adaptor
