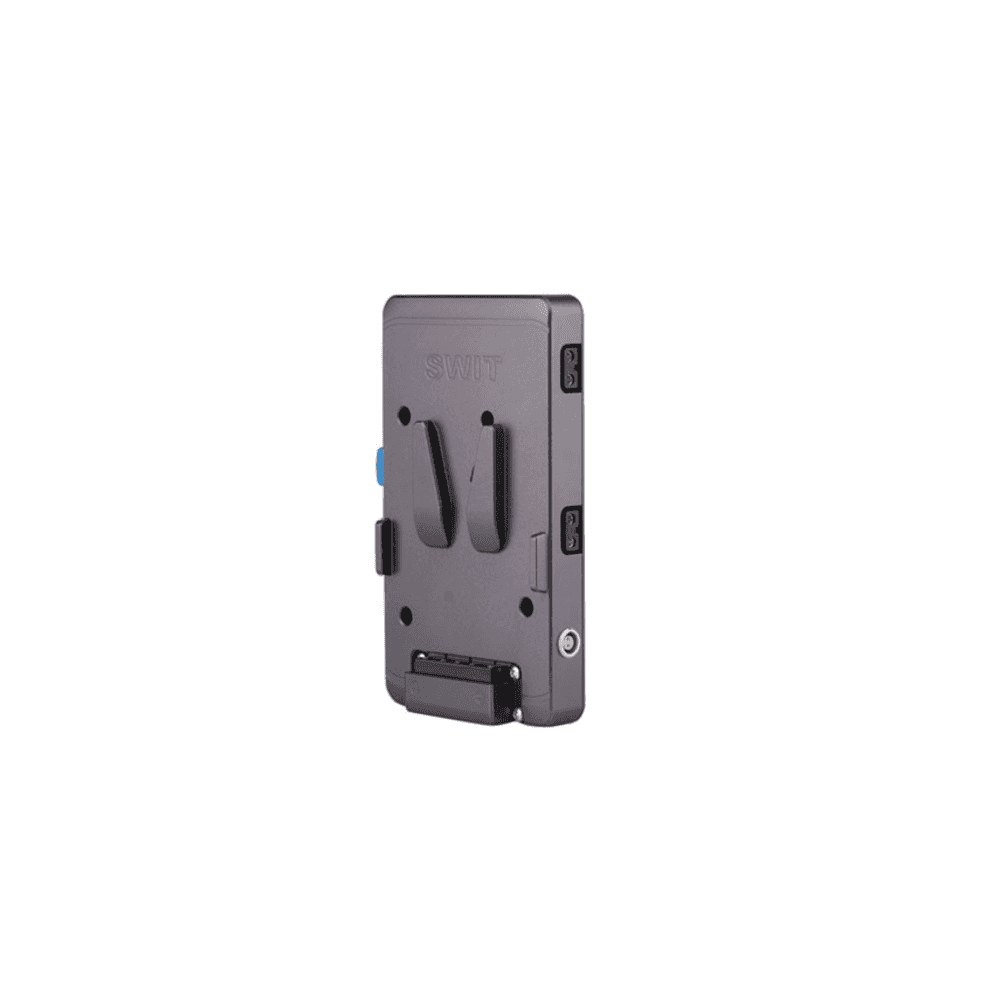

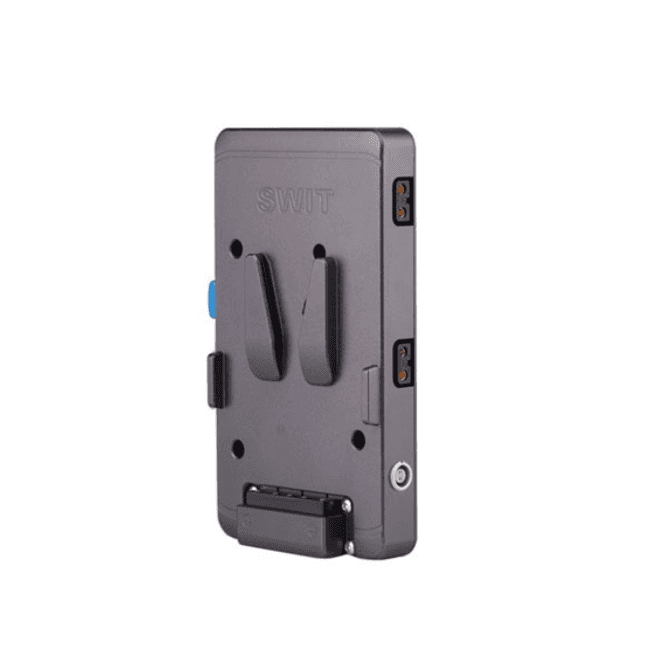

Swit KA-S30S High load with multi-sockets Hot-Swap Plate, V-Mount to V-mount

SWIT KA-S30S | High load with multi-sockets Hot-Swap Plate, V-Mount to V-mount

KA S30S KAS30S KA-S30S KA/S30S

V-mount Hot-Swap Plate: The KA-S30S is a V-mount extended plate with battery cells inside, and when you're changing battery, the plate will take over the power supply until a new battery is mounted on. So there is no need to switch off the cameras with this hot-swap plate.

At least 2mins at 200W load: The KA-S30S has CNC aluminium housing, with 4 battery cells inside, 14.4V nominal voltage, 43Wh capacity, 200W constant high load. The full capacity plate will ensure at least 2 minutes at 200W load even after 1000 cycle times.

120 Seconds Countdown Display: The hot swap plate provides an LCD screen to display countdown seconds when changing battery. When the battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it counts down to 0. The new battery will charge the hot swap plate as well. You can see the countdown seconds will go back to 120s after a period of time.

Power Interfaces

KA-S30S provides:

• 1x 2-pin LEMO 12-16.8V 38W/3A out
• 2x D-tap 12-16.8V 125W/10A out
• 1x USB-A 5V/2A output
• 1x 8-pin LEMO 12-16.8V input (For power station hot swap)
• 15mm Rod Adaptor

The KA-S30S comes provided with a free 15mm Rod Adaptor in the package, to install on 15mm rig systems to power the cameras without a V-mount plate.

Key Features:

• 14.4V V-mount Hot swap
• 43Wh, 200W constant load cells inside
• At least 2 minutes run time
• Countdown seconds display
• D-tapx2, 2-pin LEMO, USB output
• 8-pin LEMO input for power station hot swap
• SONY & RED digital power info
• Aluminium CNC unibody housing
• Support 15mm rod clamp install
• Multiple circuit protections

Specifications

• Inner battery voltage: 14.4V nominal, 12-16.8V
• Inner battery capacity: 43Wh/3Ah
• Power load: 200W/16A constant high load
• D-tap output x2: 12-16.8V, 125W/10A each, 200W/16A in total
• 2-pin LEMO output: 12-16.8V, 38W/3A
• USB-A output: 5V, 10W/2A
• 8-pin LEMO input: 12-16.8V
• Dimensions: 93×143×42mm
• Net weight: 691g

What's in the box

• 1x Swit KA-S30S V-mount Hot swap Plate
• 1x 15mm Rod Adaptor
