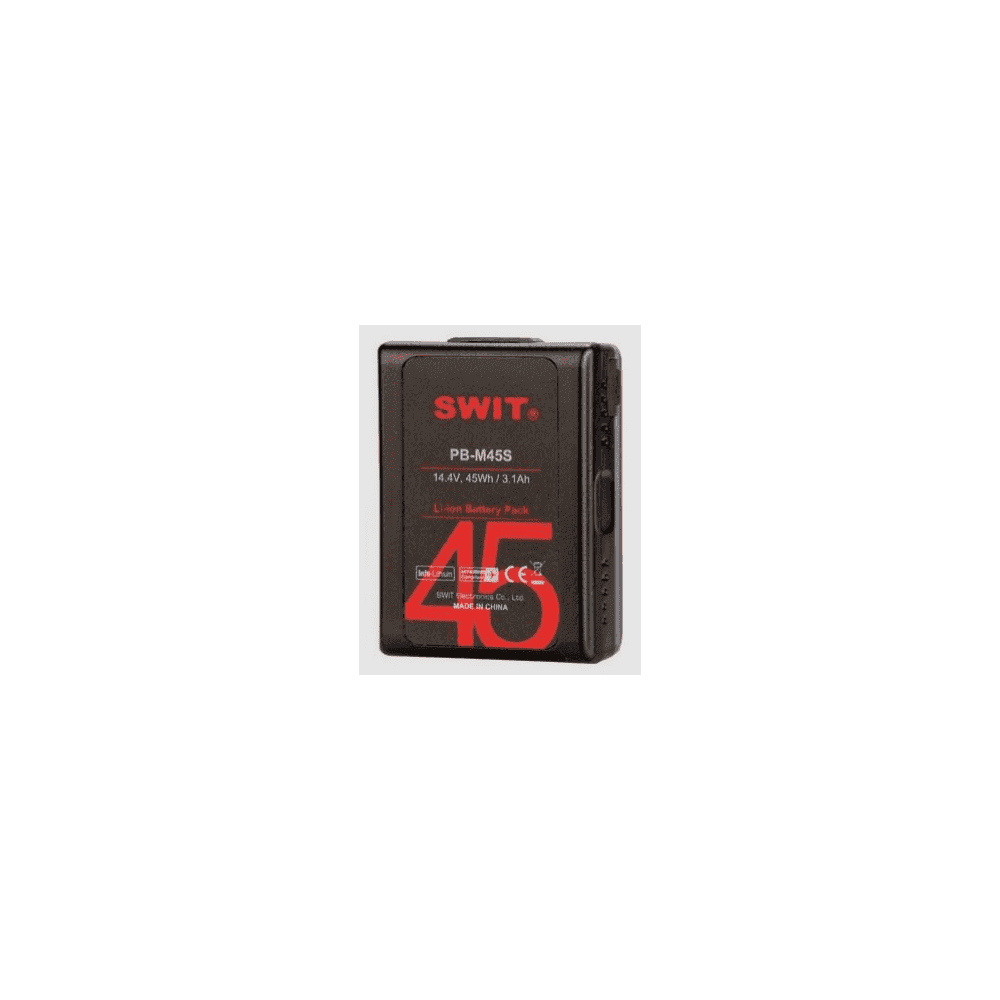

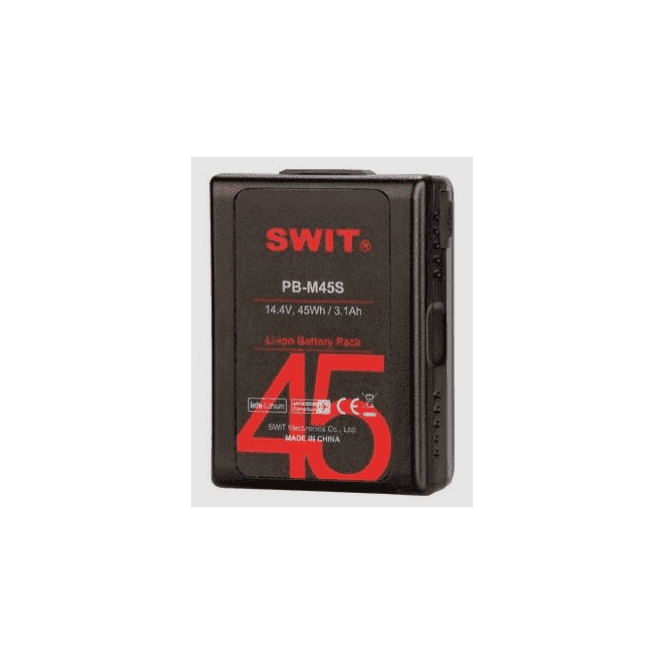

Swit PB-M45S 45Wh V-lock Pocket Mini

Swit PB-M45S 45Wh V-lock Pocket Mini PB-M45S PB-M45S PB-M45S PB-M45S

Tiny V-mount battery - Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabilisers, focus puller monitor, portable LED panel, or small cameras.PB-M45S Pocket V-mount battery is a perfect solution! It’s only a DV battery size, 45Wh capacity, and without any compromise on the DC sockets!

45Wh Fly Friendly - 150W/12A constant high load

PB-M45S consists of 4pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 45Wh / 3.1Ah high capacity. You can take this battery in carry-on luggage to board airplane.The Constant load is as high as 150W, 12A, applicable for high power lightings.

Built-in D-tap and USB

The pocket size PB-M45S still has D-tap and USB sockets built-in. The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator - Low battery warning

PB-M45S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery. 3A Fast Charging PB-M45S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.

The following chargers are recommended:

1. S-3822S, Portable 2-ch Simultaneous Charger - Charge 2x PB-M45S: Approx. 75 min

2. PC-U130B2, Ultra-Portable Dual D-tap head charger - Charge 1x PB-M45S: Approx. 75 min - Charge 2x PB-M45S: Approx. 2 hours

Hot-Swap Adaptor

You can use 2x PB-M45S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.

Wire-Free Internal Tech

PB-M45S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Specifications

• Battery plate: V-mount
• Nominal voltage: 14.4V
• Capacity: 45Wh, 3.1Ah
• Max output: In total: 150W
• Electrodes: 150W, 12A
• USB: 10W, 5V/2A
• D-tap: 100W / 8A
• Dimension 100 × 74 × 34mm
• Net weight 0.31kg
• Max charging current 3A

In The Box

• 1x Swit PB-M45S 45Wh V-lock Pocket Mini
