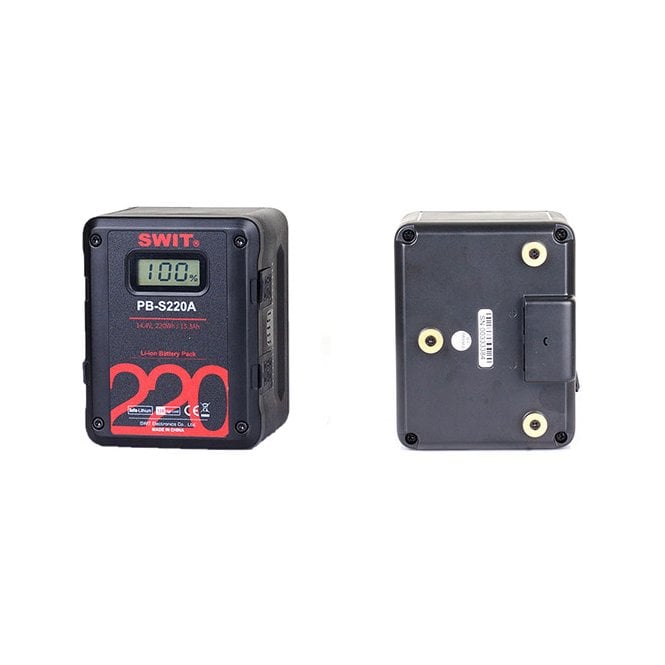

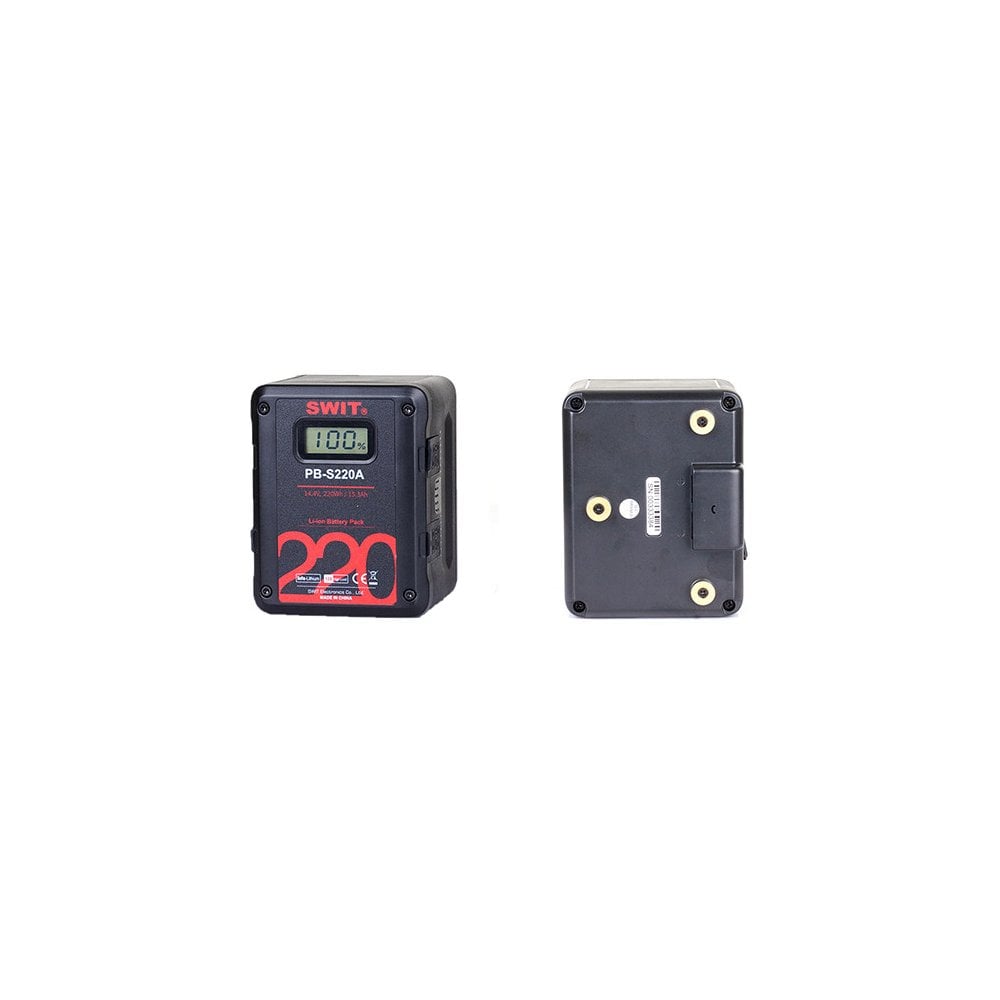

Swit PB-S220S 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery (V-Mount)

code: PB-S220S
  • £299.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Short, square-shaped design housing twenty-four 18650 battery cells
  • Up to 150W/12A continuous output
  • 220 watt hours, delivers approximately 2.5 hours of power to the ARRI ALEXA and 7 hours to ENG cameras
  • Four D-Tap outputs and a USB port on the sides
  • Intelligent LCD
  • Communicates runtime info to RED and Sony viewfinders
  • Supports 6A fast charging using the optional SWIT S-3812S charger
  • Circuit protection

Swit PB-S220S (PB_S220S, PB/S220S, PB S220S) 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery (V-Mount)

The SWIT PB-S220S 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery, featuring a V-mount, has a short, square-shaped design and provides up to 150W/12A continuous output. This makes it suitable for up to the most demanding cine-cameras along with monitors and other accessories. With 220 watt hours, the PB-S220S delivers approximately 2.5 hours of power to the ARRI ALEXA and 7 hours to ENG cameras. In addition to this, it offers four D-Tap outputs — meaning you won't need splitters if you have multiple accessories to power — and a USB port for charging mobile devices.

The battery has an intelligent LCD that displays remaining runtime in minutes when the battery is in use and as a percentage value when not in use or when charging. When remaining runtime is less than 15 minutes, the LCD will flash as a warning. It'll also show a warning signal with a specific warning code if the battery detects over-discharging, over-charging, circuit issues, and the like. A long press of the power-check button will display the battery's cycle times on the LCD. The PB-S220S also communicates runtime info to RED and Sony viewfinders.

This battery also supports fast charging at 6A using the optional SWIT S-3812S charger, which charges 0 to 80% of the battery in 2.3 hours and provides a full charge in 3.5 hours.

  • Mount / Series Type: V-Mount
  • Chemistry: Lithium-Ion
  • Capacity (Wh): 220 Wh
  • Amp-Hours: 15.3 Ah
  • Output Voltage: 14.4 VDC
  • Maximum Load 150 W, 12 A
  • Accessory Port: 4 x D-Tap
  • Maximum Load (Accessory Port): 120 W, 10 A ( D-Tap )
  • USB Output: 5 V, 2 A
  • Dimensions (W x H x D): 3.74 x 4.76 x 3.78" / 9.5 x 12.1 x 9.6 cm
  • Weight: 3.09 lb / 1.4 kg

In the box

  • SWIT PB-S220S 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery (V-Mount)
