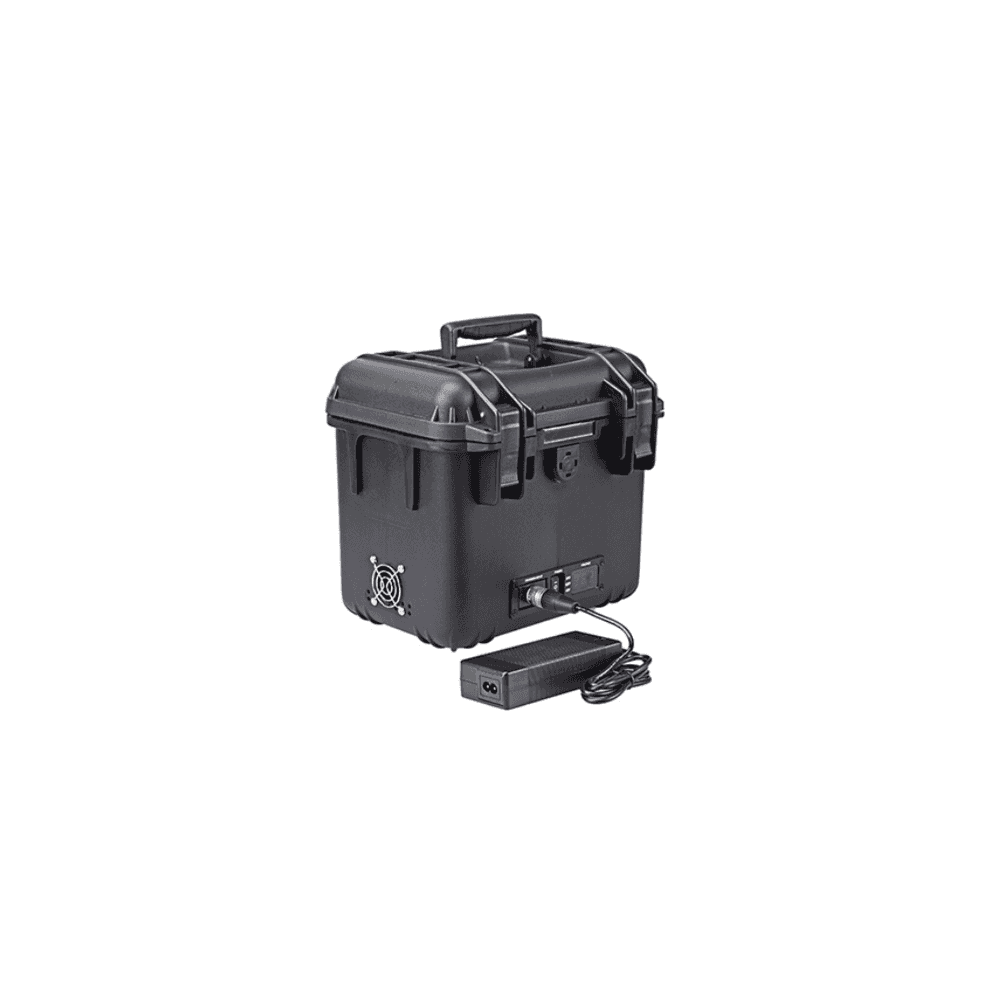

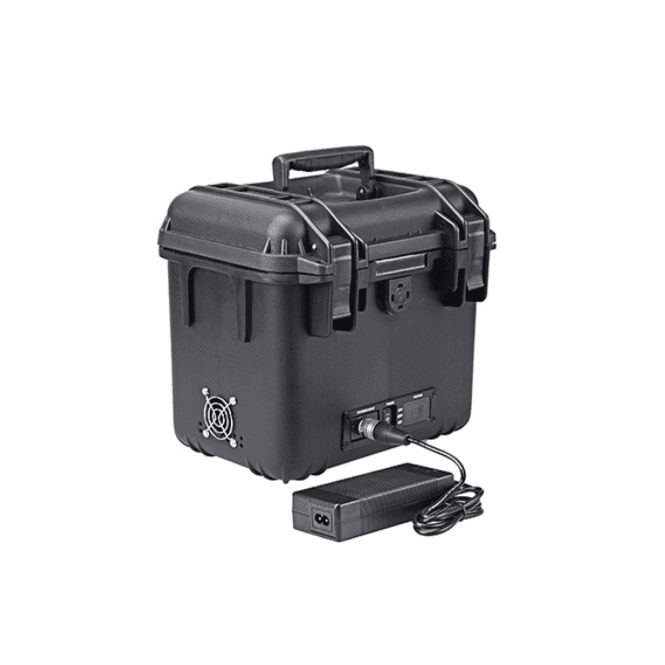

Swit S-4040 4-Battery power station box with 48V+24V output

SWIT S-4040  4-Battery power station box with 48V+24V output

S 4040 S4040 S-4040 S/4040

Long-lasting Power Solution for High Draw Cine Gears- S-4040 power station box can install 4 pieces of V-mount batteries and output regulated 24V or 48V DC for high power cine cameras or lights, with higher draw and longer power supply time comparing to single Li-ion battery.

PP+ Fibre glass case- S-4040 adopts PP+ Fibre glass case which is high intensity, high toughness and high temperature resistant.

Power with 4 V-lock batteries- Considering the size, weight, power efficiency, and usability, S-4040 is designed to be powered with 4 V-lock batteries. With auto-balanced circuit design, the different models and capacities batteries can be mixed.

24V/48V DC output- S-4040 switched with 1x 4-pin XLR regulated 24V DC output and 1x 3-pin XLR regulated 48V DC output, max 10A draw. It's recommended use 4 same model and same capacity batteries to reach 10A draw. The power station box requires 4 batteries to output 48V DC, and no limitation of battery quantity to output 24V DC.

Battery voltage display- The S-4040 LED displays real-time average voltage of inner batteries, to judge the remaining capacity. The LED panel will keep flashing to remind you to change or charge batteries.

Charging with batteries inside- With the supplied 5A charger, user can charge the batteries in the S-4040 directly, without taking out of them.

Cooling fan design- The fan keeps dissipating heat from the box, and makes it safe when working in high-temperature environment.

Key Features:

• PP+ Fibre glass case, strong and durable.
• Install 4 x V-mount batteries
• 4-pin regulated 24V 10A DC output
• 3-pin regulated 48V 10A DC output
• LED voltage display and warning
• Charging without take out batteries
• Intelligent protective circuit design

Specifications

• Input- DC 16.8V 5A (Charging)
• Output- DC 48V 10A, 480W or DC 24V 10A, 240W
• Working temperature- -20°C～+40°C
• Working humidity- 10%～90%
• Storage temperature- -15℃～﹢60℃
• Dimensions- 290mm x 221mm x 278mm
• Net weight- 3.1Kg

What's in the box

• 1x SWIT S-4040  4-Battery power station box with 48V+24V output
• 1x 4-pin XLR 5A Charger
