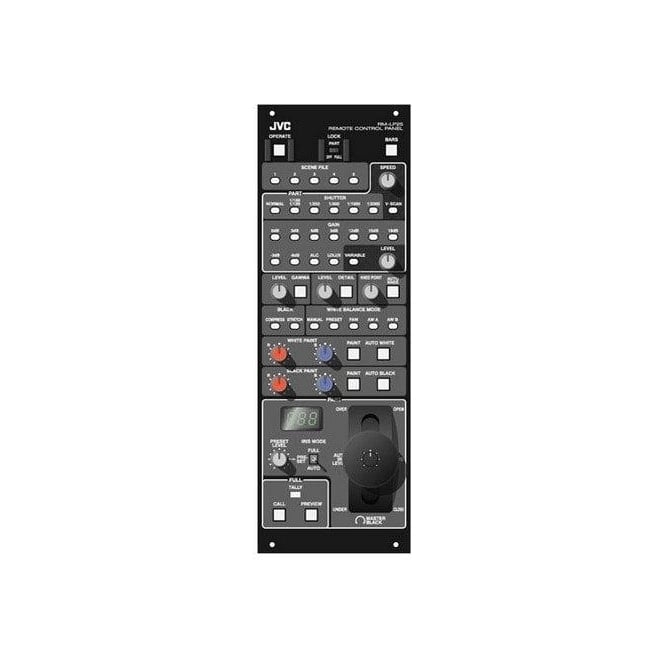

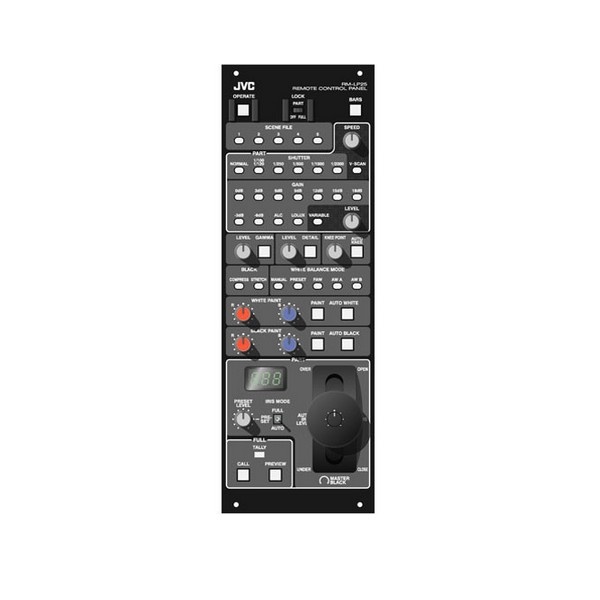

JVC RM-LP25U Operator Control Panel

JVC RM-LP25U Operator Control Panel

Operator Control Panel

For use with GY-HD200 series cameras

Rackmountable

Joystick dual control of auto iris level and master black

5 user memory scene file settings

Local Remote Control Panel for GY-HD251/201/200

The JVC RM-LP25U operator control panel (OCP) for RM-HP250DE camera control unit and also remote control panel for direct use with GY-HD200 series camcorders.

Key Features:

Local remote control panel for cameras GY-HD251, GY-HD201, GY-HD200

Operator control panel (OCP) for RM-HP250DE camera control unit

Joystick dual control of auto iris level and master black

Rack-mountable

F stop LED indication

5 user memory scene file settings

5m captive cable

Extension cable accessory options

Compatible with Camplex CP-301C base station

Generic Spec: RM-LP25U

Specs:Bars: ON/OFF

Scene files: 5 memories

Shutter speeds: Normal, 1/100(120), 1/250, 1/500, 1/1000, 1/2000, Variable *1

Gain: 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, -3dB *1, -6dB *1, LoLux *1, ALC, Variable *1

Gamma: Level control *2

Detail: Level control

Knee: Knee point control

White balance: Manual, Preset, FAW, AW A, AW B

Black: Stretch, Compress

White control: Auto White, B level control, R level control

Black control: Auto Black, B level control, R level control *2

Iris: Auto iris level (Joy stick), Auto, Full, Preset, Preset level control, F number display *2

Tally: Preview, Call

Master black: Level control (Joy stick)

Operation lock: Full, Part, OFF

Cable: DIN 6-pin, 5m Captive

Power requirement: DC 9 V (from CCU)

Power consumption: 2 W

Operating Temperature: +5°C to +40°C

Storage temperature: -20°C to +60°C

  Operating Humidity: Less than 80%

Dimensions (WxHxD): 105 x 77 x 310mm (excluding joystick)

Weight: Approx. 2.0 kg
